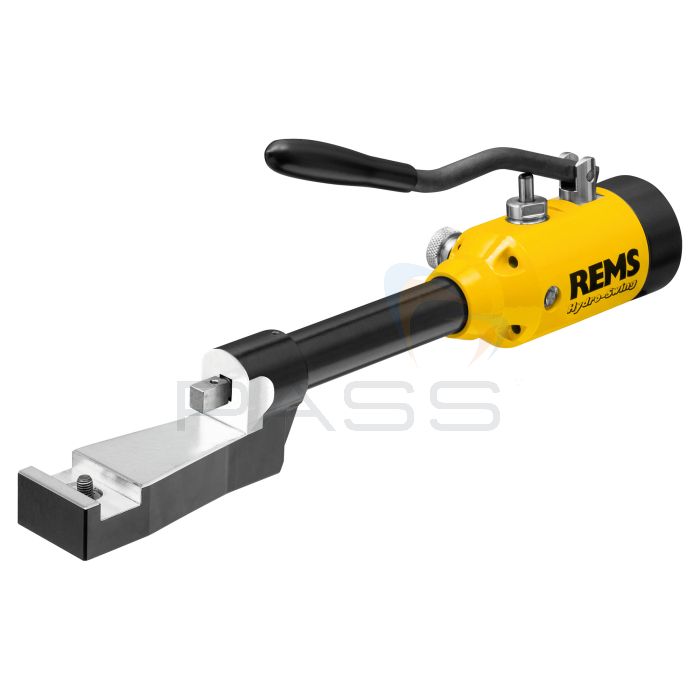

REMS Hydro-Swing Hydraulic Pipe Bender

The REMS Hydro-Swing oil-hydraulic hand pipe benders are suitable for 90° bends. The tools accommodate a range of pipe materials such as soft copper, carbon steel, and composite pipes—and are ideal for tight spaces, achieving bends on pipes up to 22 mm in 18 seconds. Four options are available to choose from.

Key Features:

• Oil-hydraulic force transmission for reduced effort
• Maintenance-free, compact hydraulic system
• Lightweight (2.4 kg) and portable for confined spaces
• Bending capacity:
  • Soft copper pipes (including thin-walled): Ø 10–22 mm (Ø ⅜–⅞"), s ≤ 1 mm
  • Coated soft copper tubes: Ø 10–18 mm (Ø ⅜–⅝"), s ≤ 1 mm
  • Stainless steel and nickel steel pipes (press fitting systems): Ø 15–22 mm, s ≤ 1.2 mm
  • Soft, coated carbon steel pipes: Ø 12–18 mm, s ≤ 1.2 mm
  • Soft precision steel tubes: Ø 10–22 mm, s ≤ 1.5 mm
  • Multi-layer composite tubes: Ø 14–32 mm
• Interchangeable, marked bending formers with angle scales
• Overbend and tier bend capabilities
• Ergonomic thrust lever with overload protection and manual hydraulic pump

What's Included?

• Oil-hydraulic hand pipe bender
• Bending formers according to the ordered set
  (INOX - Aluminium bending formers Ø 15, 18, 22 mm)
• Back former supports H-S Ø 10 - 26 mm
• Back former supports Ø 32 mm (where applicable)
• Case
• Operating instructions

Product Range

• REMS 153510R Hydro-Swing Hydraulic Pipe Bender - INOX Set 12+15+18+22
• REMS 153525RX Hydro-Swing Hydraulic Pipe Bender - Set 12+15+18+22
• REMS 153528RX Hydro-Swing Hydraulic Pipe Bender - Set 10+12+14+15+16+17+18+20+22+25/26+32
• REMS 153529R Hydro-Swing Hydraulic Pipe Bender - Set 16+20+25/26+32
