Rothenberger Romax COMPACT III Press Jaw Set

The Rothenberger ROMAX COMPACT III Series is a comprehensive collection encompassing varying shapes and dimensions of press jaws. The ROMAX COMPACT III, an electro-hydraulic, radial Press Machine, is perfectly designed for the compliant pressing of fittings up to 35 mm (for metal) or 40mm (for plastic), even in tight spaces. It exerts a piston force of 19 kN and completes a press cycle in just 3 seconds. The AMPShare models feature a lightweight, slimline battery compatible with Bosch battery systems.

The Constant Force Technology (CFT) ensures a steady pressing force throughout the entire pressing cycle. It also features real-time data collection of crucial machine parameters and allows for the easy generation of press protocols on-site through the Rothenberger App. Its optimised compact structure and well-distributed weight make it easy to handle, even for extended installation work.

Key Features

• Rothenberger app shows real-time press data
• Fast 3-second pressing via the effective pressure build-up
• Centre of gravity creates perfectly balanced and comfortable work
• Presses fittings up to a diameter of 35mm for metal and 40mm for plastic
• Remote locking
• Features new push-2-lock system
• Press jaw fixture: 270 rotation°
• Piston force: 19kN
• Product height: 34cm
• Bluetooth enabled
• Battery voltage: 18 V
• Rated power consumption: 281 W
• Motor speed: 20400 min-1
• Maximum piston force: max. 21 kN
• Pressing time (according to nominal size): ca. 3 s
• Dimensions (L x W x H, without battery): 303 x 143 x 76 mm
• Weight (without battery): ca. 2,2 kg
• Working range. (system-dependent): Ø 12 - 40 mm
• Application temperature range: 5 - 60°C/ 41 - 140°F
• Operating mode: S3
• Sound pressure level (LpA): 78 dB (A) ¦ KpA 3 dB (A)
• Sound power level (LWA): 89 dB (A) ¦ KWA 3 dB (A)
• The noise level during operation can exceed 85 dB (A). Wear hearing protection!
• Measured values determined in accordance with EN 62841-1.
• Vibration total value: ≤ 2,5 m/s2 ¦ K= 1,5m/s2
• Weight: 2.5kg

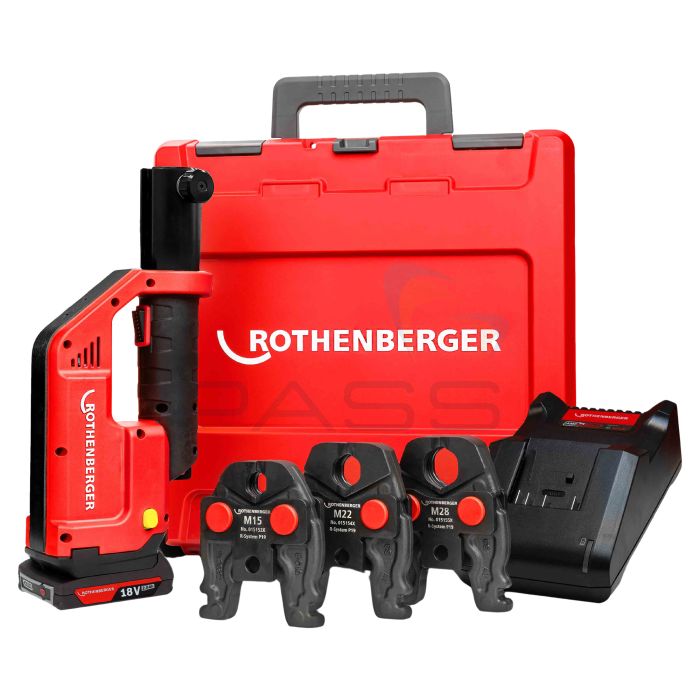

What's Included?

• Basic Set
  • ROMAX COMPACT III
  • 18 V / 2 Ah battery Charger
  • Instruction manual
  • ROMAX Compact III ROCASE

• Basic Set 1, AMPShare
  • ROMAX COMPACT III Basic unit
  • 18 V / 2 Ah battery Charger
  • Instruction manual
  • ROMAX COMPACT III ROCASE

• M Profile
  • ROMAX COMPACT III
  • 15, 22 & 28mm Compact Press Jaw, M
  • 18 V / 2 Ah battery Charger
  • Instruction manual
  • ROMAX Compact III ROCASE

• M Profile AMPShare
  • ROMAX COMPACT III AMPShare
  • 15, 22 & 28mm Compact Press Jaw, M
  • 18 V / 2 Ah battery Charger
  • Instruction manual
  • ROMAX Compact III ROCASE

• SV Profile
  • ROMAX COMPACT III
  • 15, 22 & 28mm Compact Press Jaw, SV
  • 18 V / 2 Ah battery Charger
  • Instruction manual
  • ROMAX Compact III ROCASE

• SV Profile AMPShare
  • ROMAX COMPACT III AMPShare
  • 15, 22 & 28mm Compact Press Jaw, SV
  • 18 V / 2 Ah battery Charger
  • Instruction manual
  • ROMAX Compact III ROCASE

• TH Profile
  • ROMAX COMPACT III
  • 16, 20 & 26mm Compact Press Jaw, TH
  • 18 V / 2 Ah battery Charger
  • Instruction manual
  • ROMAX Compact III ROCASE

• TH Profile AMPShare
  • ROMAX COMPACT III AMPShare
  • 16, 20 & 26mm Compact Press Jaw, TH
  • 18 V / 2 Ah battery Charger
  • Instruction manual
  • ROMAX Compact III ROCASE

• U Profile
  • ROMAX COMPACT III
  • 16, 20 & 25mm Compact Press Jaw, U
  • 18 V / 2 Ah battery Charger
  • Instruction manual
  • ROMAX Compact III ROCASE

• U Profile AMPShare
  • ROMAX COMPACT III AMPShare
  • 16, 20 & 25mm Compact Press Jaw, U
  • 18 V / 2 Ah battery Charger
  • Instruction manual
  • ROMAX Compact III ROCASE

• MaxiPro Set B
  • ROMAX COMPACT III
  • 1/4", 3/8", 1/2", 5/8", 3/4", 7/8", 1" & 1.1/8" Compact Press Jaw
  • 18 V / 2 Ah battery Charger
  • Instruction manual
  • ROMAX Compact III ROCASE

• MaxiPro Set B, AMPShare
  • ROMAX COMPACT III Pressing jaw Compact
  • 1/4", 3/8", 1/2", 5/8", 3/4", 7/8", 1" & 1.1/8" Compact Press Jaw
  • 18 V / 2 Ah battery Charger
  • Instruction manual
  • ROMAX COMPACT III ROCASE

Product Range

• Rothenberger 1000004269 Romax Compact III Basic Set
• Rothenberger 1000004271 Romax Compact III Basic Set 1, AMPShare
• Rothenberger 1000004333 Romax Compact III M Profile Set, AMPShare
• Rothenberger 1000004277 Romax Compact III SV Profile Set
• Rothenberger 1000004278 Romax Compact III SV Profile Set, AMPShare
• Rothenberger 1000004423 Romax Compact III TH Profile Set
• Rothenberger 1000004424 Romax Compact III TH Profile Set, AMPShare
• Rothenberger 1000004284 Romax Compact III U Profile Set
• Rothenberger 1000004285 Romax Compact III U Profile Set, AMPShare
• Rothenberger 1000004288 Romax Compact III MaxiPro Set B
• Rothenberger 1000004289 Romax Compact III MaxiPro Set B, AMPShare
