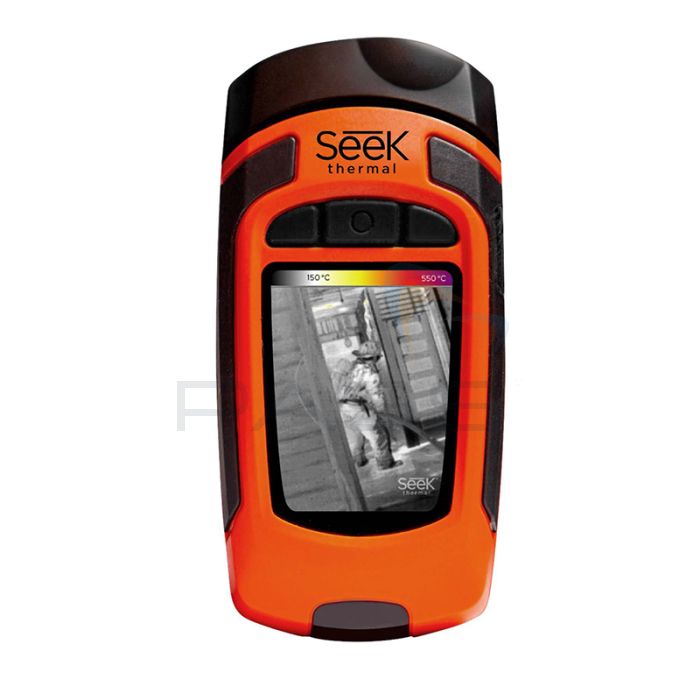

Seek RQ-FFIX Reveal FirePRO X Thermal Camera
Seek RQ-FFIX Reveal FirePRO X Thermal Camera
Seek Thermal’s most advanced handheld thermal imaging camera, the Seek Thermal Reveal Fire PRO X Thermal Camera is a highly durable, extremely easy-to-use infrared imager with a high-performance 320 x 240px thermal sensor and intuitive software. It is designed to help firefighters tackle blazes effectively and efficiently; search and rescue teams can also benefit from using this thermal imaging camera.
Thermal Imaging
Delivering maximum image clarity and sensitivity, the Seek Thermal Reveal Fire PRO X Thermal Camera is equipped with a 320 x 240px high-resolution thermal sensor that offers 76 800 temperature pixels. Three thermal colour palettes allow you to tailor the camera to suit your surroundings and enhance your vision and situational awareness. Furthermore, a wide 32° field of view allows you to scan large areas easily which means you can identify hazards in seconds.
Practical, Rugged Design
The Seek Thermal Reveal Fire PRO X Thermal Camera is housed in a sealed casing with a secure magnetic charging port. It is waterproof and its long-lasting rechargeable battery provides up to three and a half hours of power. Another useful feature is its 300-lumen LED light which is particularly advantageous when navigating smoky or dark environments.
The Seek Thermal Reveal Fire PRO X Thermal Camera is an affordable, portable, reliable thermal imager. When efficacy matters, it can be depended upon to help you save lives faster.
Applications
Seek Thermal Reveal Fire PRO X Thermal Camera Saves Firefighter
Thermal Camera Saves Firefighter in Sevier County, TN
Key Features
- Seek Thermal’s most advanced handheld thermal imaging camera
- Highly durable
- Extremely easy to use
- High-performance 320 x 240px thermal sensor
- 76 800 temperature pixel
- Intuitive software
- Three thermal colour palettes
- Enhances your vision
- Situational awareness
- Wide 32° field of view
- Scan large areas easily
- Sealed casing
- Secure magnetic charging port
- Waterproof
- Long-lasting rechargeable battery
- Battery life: 3.5 hours
- 300-lumen LED light
- An affordable, portable, reliable thermal imager
What’s Included?
- Seek Thermal Reveal Fire PRO X Thermal Camera
Seek Thermal Reveal Fire PRO X Thermal Camera Technical Specifications
| Thermal Sensor | 320 x 240 (76,800 pixels) |
| Detection Distance | 12 inches to 1,800 feet |
| Field of View | Wide, 32 Degree FOV |
| Temperature Range | -4 to 1,022F (-20 to 550C) |
| Operating Temp | -4 to 140F (-20 to 60C) No time limit |
| Operating Temp (10 min) | -4 to 185F (-20 to 85C) Up to 10 minutes |
| Operating Temp (2 min) | -4 to 225F (-20 to 107C) Up to 2 minutes |
| Frame Rate | > 15 Hz FastFrame |
| IP Rating | IP67 Waterproof |
| Flashlight | 300 Lumen LED |
| Display | 2.4” Color with Corning® Gorilla® Glass |
| Thermal Sensitivity | < 70 mK |
| User Interface | Self-Contained Device with 3 Button Navigation |
| Temp. Display Scale | Fahrenheit or Celsius |
| Color Filters | 3 Options (FIRE, SURVEY, & COLOR) |
| Storage Media | 4GB Internal (>4,000 images) |
| Battery | Up to 3.5 Hours Thermal Imaging |
| Charging | Magnetic charge port with sealed contacts |
