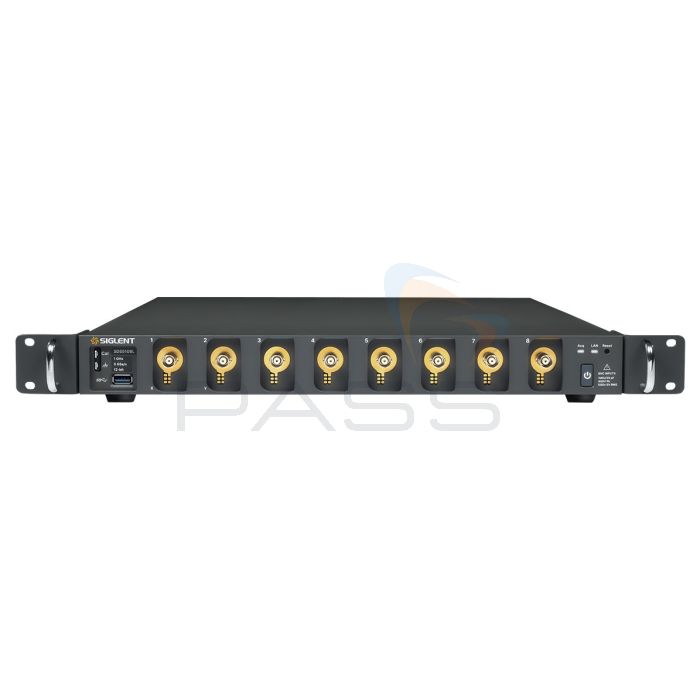

Siglent SDS5000L Low Profile HD Digital Storage Oscilloscope

The Siglent SDS5000L Series is available in 350 MHz (SDS5038L), 500 MHz (SDS5058L), and 1 GHz (SDS5108L). They have eight analogue channels, a 12-bit vertical resolution, and a sampling rate of up to 5 GSa/s.

The SDS5000L can function as a standalone oscilloscope when connected to an external monitor and mouse or be deployed as part of a scalable, multi-channel test system using Siglent’s SYN64 synchronisation distributor. It enables high-channel-count acquisition setups of up to 512 synchronised channels. Whether deployed as a single node or part of a larger matrix, the SDS5000L provides signal coherence via daisy-chained 10 MHz clock in/out lines and low-skew triggering.

The SDS5000L has a compact 1U design and an SPO (Super Phosphor Oscilloscope) engine. Users benefit from up to 160,000 waveforms per second, 256-level intensity grading, a colour temperature display mode, a 2.5 Gpts/ch record length, digital triggering with low jitter, and serial protocol support.

The oscilloscopes have multi-channel visibility and can perform one-shot captures across complex systems, power-up sequence testing, multi-rail analysis, and ripple measurements. The SDS5108L (1 GHz) model delivers ps-level rise time performance, enabling analysis of fast-switching GaN and SiC devices. The Ethernet connectivity supports SCPI commands, LXI compliance, and remote control via web browser while also supporting LabVIEW and the IVI driver.

Key Features

• 350 MHz, 500 MHz, 1GHz models
• Power-Up Sequence Analysis
• Three-Phase Power Analysis
• Flexible Multi-channel High-speed Acquisition System
• 8 analogue channels + 1 external trigger
• Sampling rate up to 5 GSa/s
• Up to 2.5 Gpts waveform length
• SYNC-64 to Synchronize 64 x SDS5000L
• Waveform capture rate up to 650,000 wfm/s (Sequence mode)
• 8 channels
• Up to 1 GHz bandwidth with up to 5 GSa/s sample rate
• 12-bit ADC
• Low noise floor: 140 μVrms @ 1 GHz bandwidth (typical)
• SPO technology
  Waveform capture rates up to 160,000 wfm/s in normal mode and 650,000 wfm/s in sequence mode
  Supports 256-level intensity grading and colour temperature display modes
  Up to 2.5 Gpts/ch waveform length
  Digital trigger system
• Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay and Video (HDTV supported). Zone Trigger simplifies advanced triggering
• Serial bus triggering and decoder, supports protocols including I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester and ARINC429
• Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 170,000), according to trigger conditions set by the user, with a small dead time between segments to capture the qualifying event
• History waveform record (History) function, the maximum recorded waveform length is 170,000 frames
• Automatic measurements on 60+ parameters, supports statistics with histogram, track, trend, gating measurement, and measurements on Math, History and Memory traces
• 8 Math traces (8 Mpts FFT, Filter, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor
• Abundant data analysis functions such as Search, Navigate, Digital Voltmeter, Counter, Waveform Histogram, Bode plot, Power Analysis and Double Pulse Test
• High Speed hardware-based Average, Hi-Res; High Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks
• External 50 MHz waveform generator supported
• Interfaces include: 1 x USB Host 3.0, USB 2.0 Host, USB 3.0 Device (USBTMC), 1000M LAN, HDMI, External Trigger In, Aux Out (Pass/Fail, Trigger Out), 10 MHz In, 10 MHz Out
• Built-in web server supports remote control over the LAN port using a web browser. Support SCPI remote control commands. Support external mouse and keyboard

What's Included?

• Choice of Oscilloscope
• Wireless mouse
• Standard USB cable
• Passive probes
• Power cord

Product Range

• Siglent SDS5038L High-Definition Digital Oscilloscope, 350 MHz
• Siglent SDS5058L High-Definition Digital Oscilloscope, 500 MHz
• Siglent SDS5108L High-Definition Digital Oscilloscope, 1 GHz
