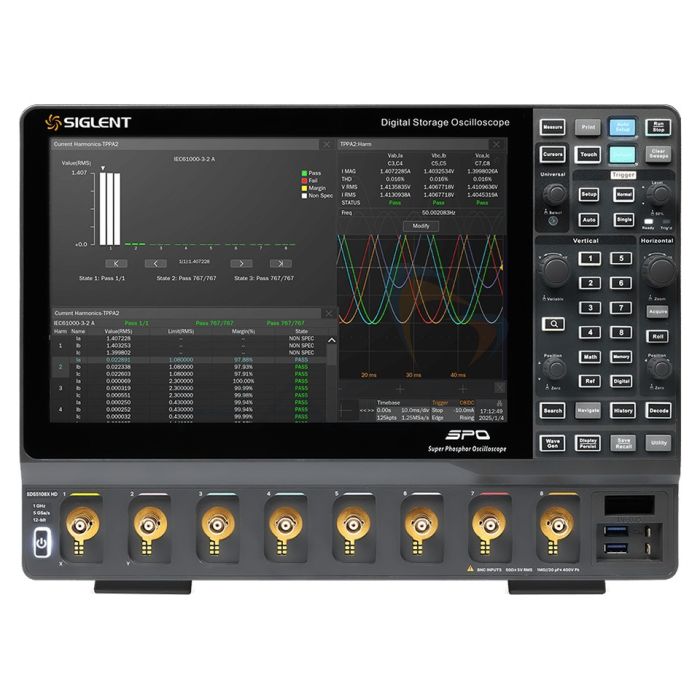

Siglent SDS5000X HD Series Digital Storage Oscilloscope

The Siglent SDS5000X HD Series is available in 4-, 6-, and 8-channel configurations with bandwidths of either 350 MHz, 500 MHz, or 1 GHz. This series has a 12-bit vertical resolution, a sampling rate of 5 GS/s, and SPO technology, which enables a waveform capture rate of up to 650,000 waveforms per second (wfms/s) with 256-level intensity grading.

Every configuration has an ultra-low-noise signal path, high-precision triggering, multi-channel correlation, system-level debugging, serial decoding, and deep memory up to 2.5 Gpts/channel. The 8-channel models facilitate one-shot capture of events across multiple voltage rails or real-time observation of three-phase motor drive signals. The 8-channel models also have built-in Power Analysis, Bode Plot, FFT, and Mask Test tools.

The HD Series includes a responsive 12.1' capacitive touchscreen, intuitive multi-touch controls, and a thoughtful user interface. The functions include Search and Navigate, History mode, and serial bus decoding (I²C, SPI, UART, CAN, LIN, etc.). For SiC/GaN-based high-speed switching designs, the 1 GHz models capture rise times in the picosecond range.

Key Features

• Power-Up Sequence Analysis
• Three-Phase Power Analysis
• Complete Wide Bandgap Semiconductor Testing Solution
• 350 MHz, 500 MHz, 1 GHz models
• 4/6/8 analog channels + 1 external trigger
• 16 digital channels
• Sampling rate up to 5 GSa/s
• Up to 2.5 Gpts waveform length
• Waveform capture rate up to 650,000 wfm/s (Sequence mode)
• Typical ENOB at 1 GHz of 8.2 bits
• 8/6/4 analog channels for SDS5000X HD
• Up to 1 GHz bandwidth with up to 5 GSa/s sample rate
• 12-bit ADC
• Low noise floor: 140 μVrms @ 1 GHz bandwidth (typical)
• SPO technology
  • Waveform capture rates up to 160,000 wfm/s in normal mode and 650,000 wfm/s in sequence mode
  • Supports 256-level intensity grading and color temperature display modes
  • Up to 2.5 Gpts/ch waveform length
  • Digital trigger system
• Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay and Video (HDTV supported). Zone Trigger simplifies advanced triggering
• Serial bus triggering and decoder, supports protocols including I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester and ARINC429
• Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 170,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event
• History waveform record (History) function, the maximum recorded waveform length is 170,000 frames
• Automatic measurements on 60+ parameters, supports statistics with histogram, track, trend, gating measurement, and measurements on Math, History and Memory traces
• 8 Math traces (8 Mpts FFT, Filter, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor
• Abundant data analysis functions such as Search, Navigate, Digital Voltmeter, Counter, Waveform Histogram, Bode plot, Power Analysis and Double Pulse Test
• High Speed hardware-based Average, Hi-Res; High Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks
• 16 digital channels
• External 50 MHz waveform generator supported
• Large 12.1” TFT-LCD display with 1280 * 800 resolution; Capacitive touch screen supports multi-touch gestures
• Interfaces include: 2x USB Host 3.0, USB 2.0 Host, USB 3.0 Device (USBTMC), 1000M LAN, HDMI, External Triger In, Aux Out (Pass/Fail, Trigger Out), 10 MHz In, 10 MHz Out
• Built-in web server supports remote control over the LAN port using a web browser. Support SCPI remote control commands. Support external mouse and keyboard

What's Included?

• Choice of Oscilloscope
• Standard USB cable
• Passive probes
• Wireless mouse
• Power cord

Product Range

• Siglent SDS5034X HD High-Definition Digital Oscilloscope, 4 Channels, 350 MHz
• Siglent SDS5054X HD High-Definition Digital Oscilloscope, 4 Channels, 500 MHz
• Siglent SDS5104X HD High-Definition Digital Oscilloscope, 4 Channels, 1 GHz
• Siglent SDS5036X HD High-Definition Digital Oscilloscope, 6 Channels, 350 MHz
• Siglent SDS5056X HD High-Definition Digital Oscilloscope, 6 Channels, 500 MHz
• Siglent SDS5106X HD High-Definition Digital Oscilloscope, 6 Channels, 1 GHz
• Siglent SDS5038X HD High-Definition Digital Oscilloscope, 8 Channels, 350 MHz
• Siglent SDS5058X HD High-Definition Digital Oscilloscope, 8 Channels, 500 MH
• Siglent SDS5108X HD High-Definition Digital Oscilloscope, 8 Channels, 1 GHz
