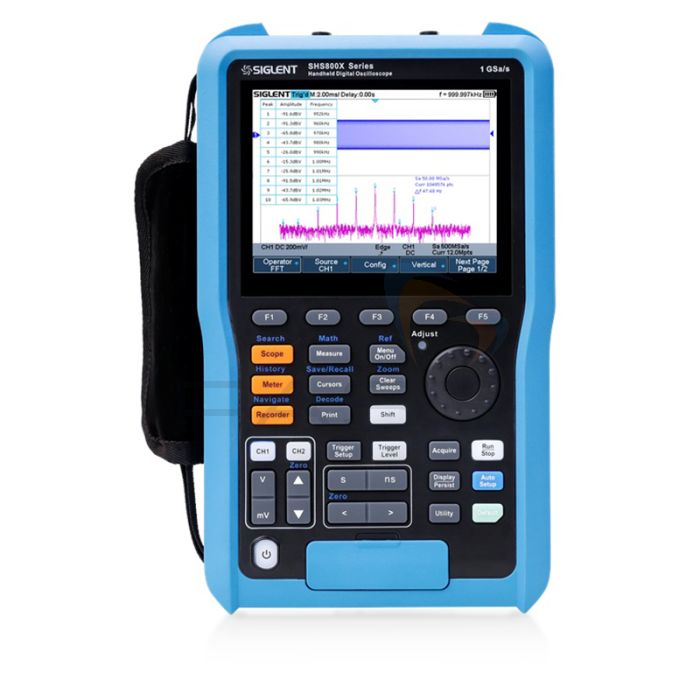

Siglent SHS820X Handheld Oscilloscope – 200 MHz, 2 Channels
- 6000-count digital multimeter
- 5.6” TFT-LCD with 640x480px resolution
- 500 MSa/s two-channel sampling rate
SKU
SHS820X
MPN
SHS820X
A digital, handheld oscilloscope capable of delivering benchtop oscilloscope performance and 6000-count multimeter measuring capabilities, the Siglent SHS820X Handheld Oscilloscope is ideal for onsite and laboratory service and support cases. Housed in an IP51-rated casing, the Siglent SHS820X Handheld Oscilloscope offers a long battery life as well as a 200MHz bandwidth, two channels, a single ADC channel with a 1 GSa/s maximum sampling rate, and a 12 Mpts memory module. The Siglent SHS820X Handheld Oscilloscope delivers durability, flexibility, and high performance.
SIGLENT SHS1000X SHS800X handheld oscilloscope introduction
Siglent SHS820X Handheld Oscilloscope Key Features
- Delivers benchtop oscilloscope performance and multimeter measuring capabilities
- Handheld
- Ideal for service and support cases in the field and laboratory
- Bandwidth: 200MHz
- Two channels
- Single ADC
- 1 GSa/s single channel sampling rate
- 500 MSa/s two-channel sampling rate
- 6000-count digital multimeter
- Waveform capture rate: 100 000 wfm/s (normal mode)
- Waveform capture rate: 400 000 wfm/s (sequence mode)
- Supports 256-level intensity grading and colour temperature
- 12 Mpts memory
- Digital trigger system
- Intelligent trigger: Edge, Slope, Pulse Width, Window, Runt, Interval, Time Out (Dropout), Pattern
- Video trigger/HDTV
- Low background noise with voltage scales from 2 mV/div to 100 V/div
- 3 one-button shortcuts for Oscilloscope, Multimeter, and Recorder functions
- 8 one-button shortcuts for Run/Stop, Auto Setup, Default, Measure, Cursors, Display/Persists, Clear Sweep, and Print
- Segmented acquisition (Sequence) mode
- History waveform record (History) function
- Automatic measurement function for 38 parameters
- Measurement statistics function
- Zoom function
- Gating function
- Math function (FFT, addition, subtraction, multiplication, division, integration, differential square root)
- Default key may be customised or left as factory/default
- Multi-language display
- Multi-language online help
- Security Erase mode
- Search and Navigation Function
- Recorder mode with Sample and Measurement Loggers
- Resistance, diode, capacitance, and continuity test
- True-RMS AC voltage/current measurement multiplier
- 5.6” TFT-LCD with 640x480px resolution
- Interface types: isolated USB host and USB device (MicroUSB – TMC)
- Supports SCPI remote control commands
- UL2054 certified lithium battery pack, 6900 mAh capacity, external charger
- IP51
- Digital handheld oscilloscope and a multimeter that provides durability, flexibility, and high performance
What’s Included?
- Siglent SHS820X Handheld Oscilloscope – 100 MHz, 2 Isolated Channels
- 1x 6900 mAh Battery
- 2x 100 MHz Oscilloscope Probe
- 2x Current Adapter (1x SCD600MA / 1x SCD10A)
- 1x Multimeter Probes Set
- 1x Power Adapter/Charger
- 1x USB Cable
- 1x Quick Start Guide
Offers
Free Insulated Screwdrivers
- CK Tools T4897 C.K VDE Precision Screwdriver Set - T4897, typically £27.35
Technical Information
Specification
Siglent SHS800X/ SHS100X Handheld Oscilloscopes Technical Specifications
| Model | SHS810X | SHS820X | SHS1102X | SHS1202X |
| Bandwidth | 100 MHz | 200 MHz | 100 MHz | 200 MHz |
| Sample rate (Max.) |
Two-channel share a single 1 GSa/s ADC. When two channels are enabled, each channel has a maximum sample rate of 500 MSa/s. When a single channel is active, that channel has a sample rate of 1 GSa/s |
|||
| Channels | 2 analog oscilloscope channels, 1 multimeter channel | |||
| Memory depth (Max.) |
6 Mpts/CH (dual-channel mode) 12 Mpts/CH (single channel mode) |
|||
| Waveform capture rate (Max.) |
100,000 wfm/s (normal mode), 400,000 wfm/s (sequence mode) | |||
| Trigger type | Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video | |||
| Serial Trigger and decoder |
IIC, SPI, UART, CAN, LIN | |||
| Data Logger(Recorder) |
Sample Logger. The Max sample rate is 25 kSa/s, the Min sample rate is 1 Sa/s | |||
| Measurement Logger. The Max interval is 10 minutes, the Min interval is 0.1 seconds. The Max items of logging are 4 |
||||
| I/O | USB Host, USB Device | |||
| Max input Voltage (Scope) |
CAT II 300 Vrms Between BNC Signal and Protecting Earth CAT II 30 Vrms Between BNC GND and Protecting Earth CAT II 300 Vrms Between BNC Signal and BNC GND |
CAT III 600 Vrms, CAT II 1000 Vrms Between BNC Signal and Protecting Earth CAT III 600 Vrms, CAT II 1000 Vrms Between BNC GND and Protecting Earth CAT III 300 Vrms Between BNC Signal and BNC GND |
||
| Max input Voltage (Meter) |
CAT III 300 Vrms, CAT II 600 Vrms | CAT III 600 Vrms, CAT II 1000 Vrms | ||
| Probe | PP510 | PP215 | PB925 | |
| Display | 5.6-inch TFT-LCD (640x480) | |||
| Weight | Without package 1.75 kg. With package 3.5 kg | |||
