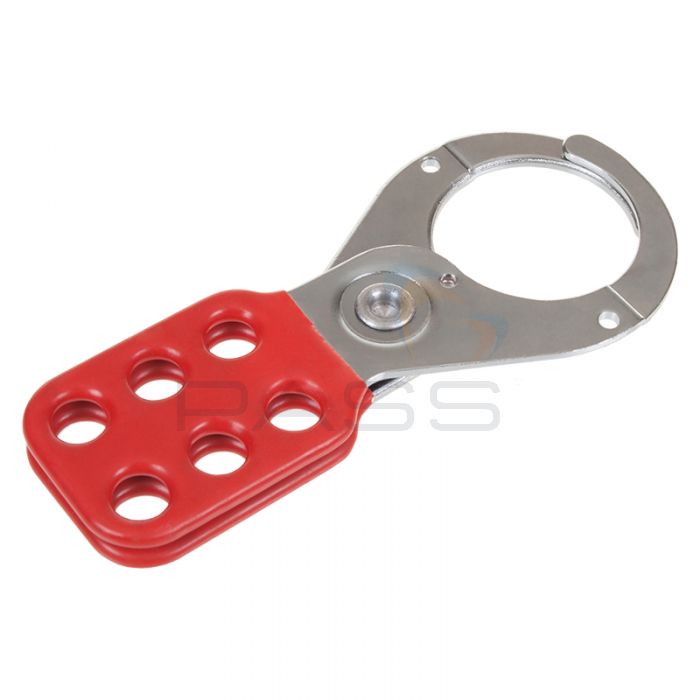

Just clip this hasp around a lockout isolation point to allow up to six padlocks to be attached and prevent access to an energy source.
Made of high quality tensile steel with protection against rusting, these hasps can be reliably used in demanding industrial environments and are extremely difficult to remove without the keys to attached padlocks.
This hasp has 6mm shackle thickness. We also stock another version of this product with 5mm thickness (Code: LT-VCH-S).
Key Features
- Allows attachment of up to six padlocks to an isolation point
- Scissor action for easy installation
- Padlock fixing section coated in red vinyl for better grip/visibility
- Accepts padlocks with shackle diameter of up to 9mm
- High tensile steel construction with electro-plating to prevent rusting
- 6mm shackle thickness
Hasp Dimensions
All values are approximate.
Parameter | Measurement | |
A - Overall Height | 122mm | |
B - Shackle Length | 78mm | |
C - Hasp Length | 53mm | |
D - Hasp Width | 39mm | |
E - Hole Width x Height | 10mm x 10mm | |
F - Overall Width | 59mm | |
G - Inner Lock | 37mm | |
H - Top Of Shackle | 6mm | |
I - Hasp Thickness | 9mm | |
J - Lock Width/Depth | 3mm | |
K - Number of Holes | 6 |
0 Reviews
Overall Rating
Additional Information
SKU | LT-VCH-P |
---|---|
Manufacturer Part Code | ES-VCH-P |
