Sofamel PATL-3/MC/3525 Earthing Equipment, Automatic Clamps

The Sofamel PATL-3/MC/3525 aims to protect the operator from accidental commissioning or possible voltage return during repair operations. The kit is an earthing and short-circuit kit suitable for medium-voltage overhead lines. It includes an MC clamp and has a 9kA/1s short circuit current ICC max. According to the IEC 61230 standard.

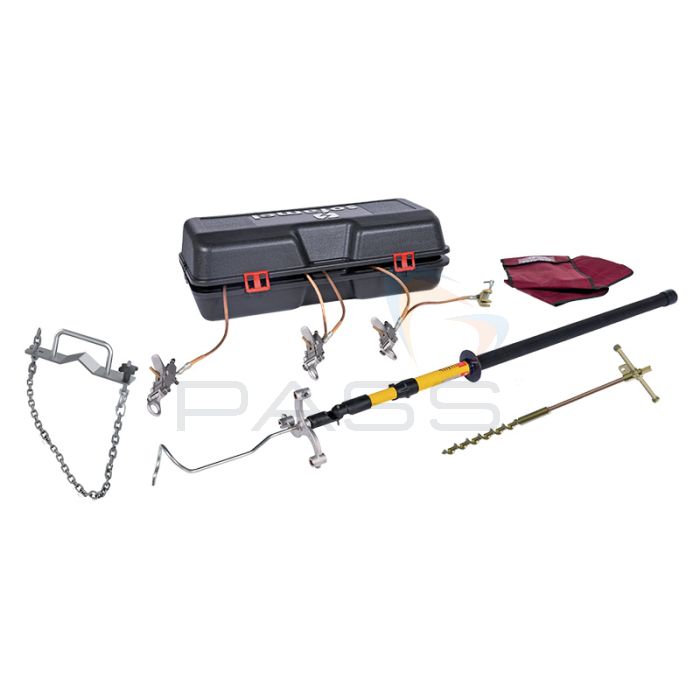

What's Included?

• 3 MC aluminium alloy clamps with automatic activation fastening for cylindrical conductors with diameters between 3 and 20 mm.
• 1 dispenser head with a hook with M-10 thread.
• 2 copper cables with PVC insulation of 35 mm² section and 2.5 m long.
• 1 copper cable with PVC insulation of 25 mm² section and 5 m long.
• 3 TT-38L milling earthing lathe.
• 1 PEP-ECO clamp for post.
• 1 copper cable with PVC insulation of 25 mm² section and 13 m long.
• 1 telescopic pole (1.10 m folded and 2 m extended).
• 1 earthing rod.
• 1 plastic case to store and transport the equipment.
• 1 bag to store and transport the pole.
• 1 bag to store and transport the earthing rod.
