Sofamel PATL-TML Phase Earthing Equipment
- TT-50 milling earthing lathe
- 12, 19, 25, 30, or 40 KA/1s
- Twenty-five options to choose from
SKU
SOFA-PATL-TML-X
These Sofamel PATL-TML phase earthing and short-circuit kits are suitable for high-voltage overhead lines. They protect the operator from accidental commissioning or possible voltage return during repair operations. According to the IEC 61230 standard. Twenty-five options are available to choose from with 12, 19, 25, 30, or 40 KA/1s short circuit currents.

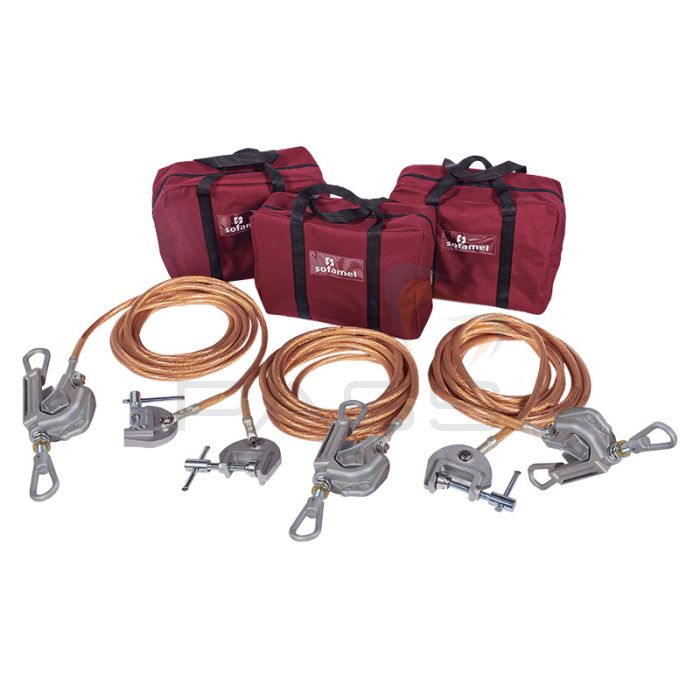

What's Included?
- 3 TML aluminium alloy clamps with screw tightening for cylindrical conductors with diameters between 10 and 70 mm.
- 3 copper cables with PVC insulation. Section and length depend on the model.
- 3 TT-50 milling earthing lathe.
- 3 nylon bags to store and transport the equipment.
| Cable Section (mm2) | Length (m) | Short Circuit Current ICC Max. | |
|---|---|---|---|
| PATL-TML/05006 | 50 | 6 | 12 KA/1s |
| PATL-TML/05007 | 7 | ||
| PATL-TML/05008 | 8 | ||
| PATL-TML/05009 | 9 | ||
| PATL-TML/05010 | 10 | ||
| PATL-TML/07006 | 70 | 6 | 19 KA/1s |
| PATL-TML/07007 | 7 | ||
| PATL-TML/07008 | 8 | ||
| PATL-TML/07009 | 9 | ||
| PATL-TML/07010 | 10 | ||
| PATL-TML/09506 | 95 | 6 | 25 KA/1s |
| PATL-TML/09507 | 7 | ||
| PATL-TML/09508 | 8 | ||
| PATL-TML/09509 | 9 | ||
| PATL-TML/09510 | 10 | ||
| PATL-TML/12006 | 120 | 6 | 30 KA/1s |
| PATL-TML/12007 | 7 | ||
| PATL-TML/12008 | 8 | ||
| PATL-TML/12009 | 9 | ||
| PATL-TML/12010 | 10 | ||
| PATL-TML/15006 | 150 | 6 | 40 KA/1s |
| PATL-TML/15007 | 7 | ||
| PATL-TML/15008 | 8 | ||
| PATL-TML/15009 | 9 | ||
| PATL-TML/15010 | 10 |
