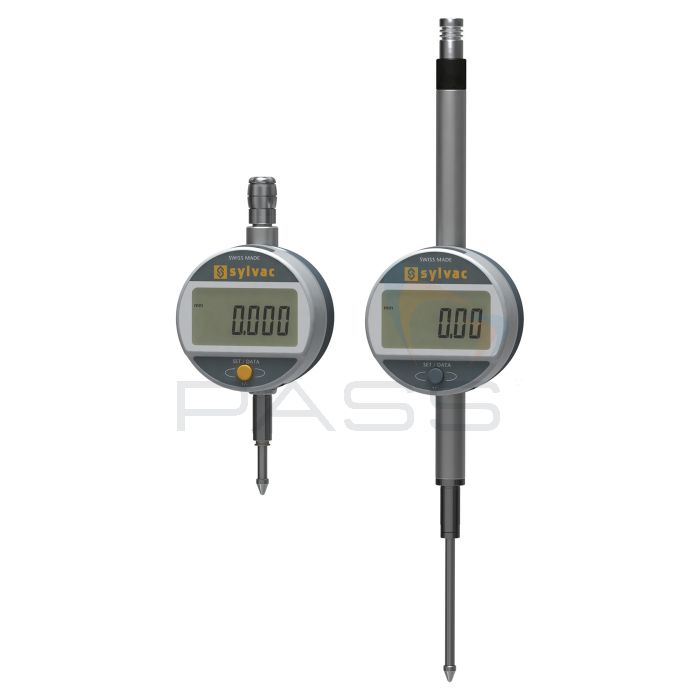

Sylvac S_Dial Work Digital Indicator
- 12.5mm, 25mm & 25mm
- 0.01mm or 0.001mm resolution
- mm/inch, preset, direction of measurement
SKU
SV-30-805-1-X-01
The Sylvac S_Dial Work Digital Indicators are available in models with 12.5mm to 50mm travel and 0.01mm or 0.001mm resolutions. Each model has measurement functions, including mm/inch conversion, preset, and direction reversal (programmable via PC). Powered by Sylvac’s Absolute System with S.I.S technology, the indicators offer automatic wake-up and sleep mode while maintaining absolute position.
Key Features
- Robust construction
- No lug back included
- Functions: mm/inch, preset, direction of measurement (only programmable on a PC)
- Automatic wake-up and sleeping mode (S.I.S system), absolute System
Product Range
- Sylvac 30-805-1201 S_Dial Work Digital Indicator, 12.5mm/0.01mm
- Sylvac 30-805-1301 S_Dial Work Digital Indicator, 12.5mm/0.001mm
- Sylvac 30-805-1401 S_Dial Work Digital Indicator, 25mm/0.01mm
- Sylvac 30-805-1501 S_Dial Work Digital Indicator, 25mm/0.001mm
- Sylvac 30-805-1601 S_Dial Work Digital Indicator, 50mm/0.01mm
Offers
Free Tyre Inflator (Spend £1000+)
Worth £29.99. Automatically adds to your basket when the total exceeds £1000+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
| Range (mm) | Range (inch) | Maximum Error (µm) | Repeatability (µm) | Resolution (mm) | Resolution (inch) | |
|---|---|---|---|---|---|---|
| 30-805-1201 | 12.5 | 0.5 | 10 | 2 | 0.01 | 0.0005 |
| 30-805-1301 | 12.5 | 0.5 | 4 | 2 | 0.001 | 0.00005 |
| 30-805-1401 | 25 | 1 | 10 | 2 | 0.01 | 0.0005 |
| 30-805-1501 | 25 | 1 | 5 | 2 | 0.001 | 0.00005 |
| 30-805-1601 | 50 | 2 | 7 | 2 | 0.001 | 0.00005 |
