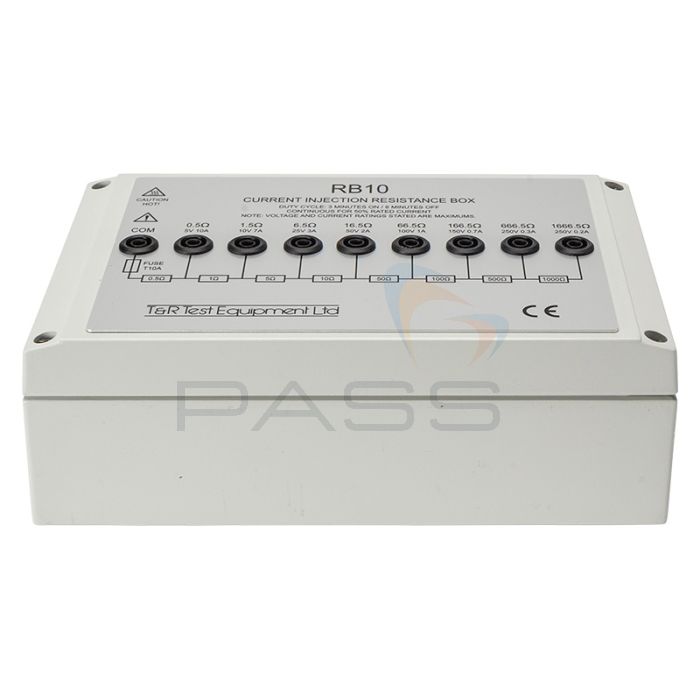

T&R RB10 Resistor Box

Range of 0.5Ω to 1666.5Ω in 8 steps
Maximum current of 0.2 to 10A
Improves current control into low impedance loads

SKU

A192-006

MPN

A192-006

View All Current Injection Accessories

Description Technical Info Reviews

This product is built for use with the T & R 100ADM mk1-4 or the 200ADM-P, but may be used with any suitable current source.

Use this resistor box alongside a current injector for precise control over current, allowing testing of low impedance relays and trips.

The resistor box has range of 0.5Ω to 1666.5Ω in 8 steps and maximum current of 0.2 to 10A. It also has maximum power dissipation of 50W for any one resistor.

This product has fuse and over-temperature protection and uses standard 4mm safety sockets. It is supplied in a robust aluminium carrying case.

T & R RB10 Resistor Box Key Features

Range of 0.5Ω to 1666.5Ω in 8 steps
Maximum current of 0.2 to 10A
Improves current control into low impedance loads
Ideal for solid state relays
Can be used as swamping impedance for non-linear loads
Thermal cutout
For use with current injectors

£1,005.00

£1,206.00 inc vat

Free Delivery*

60 Days Return

Technical Information

Specification

T & R RB10 Technical Specifications

Range	Continuous Current	Intermittent Current	Maximum Voltage
0.5Ω	5A	10A	5V
1.5Ω	3.5A	7A	10V
6.5Ω	1.5A	3A	25V
16.5Ω	1A	2A	50V
66.5Ω	0.5A	1A	100V
166.5Ω	0.35A	0.7A	150V
666.5Ω	0.15A	0.3A	250V
1666.5Ω	0.1A	0.2A	250V
Range Selection
The appropriate range is selected by 4mm safety sockets on the front panel of the unit
Temperature Range
Storage	-20 to 60°C
Operating	0 to 45°C
Protection
Type	Over-temperature protection and fused common terinal with T10A fuse
Dimensions
Size	220mm x 163mm x 72mm (incl earth terminal)
