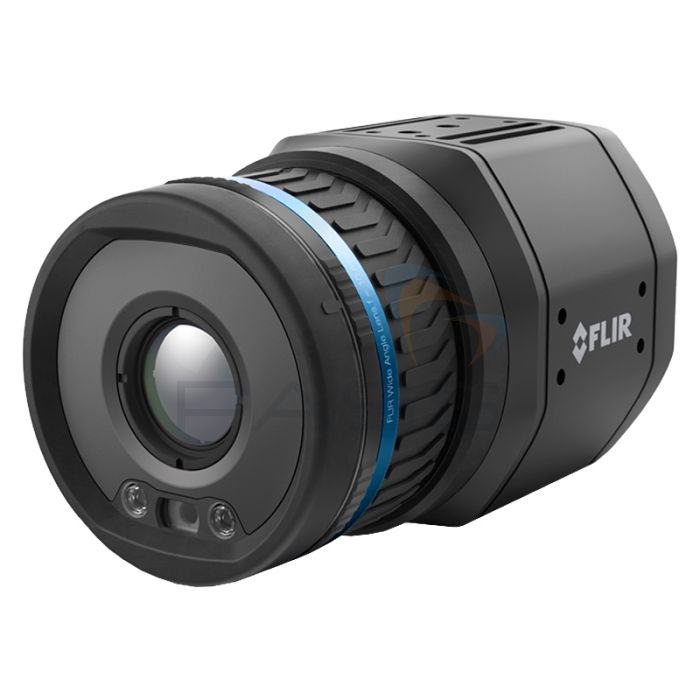

FLIR A400 Image Streaming Automation Thermal Camera
FLIR A400 Automation Thermal Camera
Accurately identify thermal issues throughout manufacturing processes with the FLIR A400 Automation Thermal Camera with Image Streaming configuration. This infrared-imaging automation camera with image streaming software can identify potential issues before failure, prevent fires, optimise process control, and improve quality assurance. It is available with a range of lenses, select which one you require from the drop-down menu above when purchasing.
Thermal Imaging Capabilities
The FLIR A400 Thermal Camera has an IR resolution of 320 x 240px and can measure temperatures between -20°C and +1500°C to an approximate accuracy of ±2°C/2%. It delivers compressed radiometric thermal image streaming, making it possible to connect multiple A400 cameras and share footage via Wi-Fi, and includes a motorised focus to improve the accuracy of temperature readings for objects both near and far.
The camera can be configured to include FSX® (Flexible Image Enhancement) technology (an optional extra) which increases the contrast in even-temperature scenes and enhances edge detail in low light.
Image Streaming Configuration
FLIR’s image streaming configuration is ideal for those wanting to collect raw data but perform analytics using their own application. The image streaming configuration supports the following functions and features:
- GigE Vision
- GenICam
- Digital I/O
- Power over Ethernet (PoE)
- Motorised focus
- Built-in web interface
- Optional IP66-rated design
- Optional Wi-Fi
- Optional visual camera with MSX
Easy to Integrate
Designed to integrate seamlessly into monitoring systems that meet your site's specific requirements, the FLIR A400 Image Streaming Automation Thermal Camera is compliant with GigE Vision and GenIcam™. It also supports GigE and RTSP data streaming protocols and is compatible with third-party SDK and application software support. Furthermore, a linear temperature output simplifies the use of temperature data with third-party software.
When configured to include multi-image streaming (an optional extra), it can simultaneously integrate with VMS and measurement applications.
Delivering unmatched power and flexibility, the FLIR A400 Image Streaming Automation Thermal Camera is ideal for the most complex remote monitoring and temperature measurement objectives.
Videos
Key Features
- An infrared-imaging automation camera with image-streaming software
- Identify thermal issues throughout the manufacturing process
- Identify potential issues before failure
- Prevent fires
- Optimise process control
- Improve quality assurance
- Available with a range of lenses
- IR resolution: 320 x 240px
- Temperature range: -20°C to 120°C and 300°C to 1500°C
- Accuracy: ±2°C/2%
- Compressed radiometric thermal image streaming
- Motorised focus
- OPTIONAL FSX® technology
- Integrates seamlessly into monitoring systems
- Compliant with GigE Vision
- Compliant with GenIcam™
- Supports GigE and RTSP data streaming protocols
- Compatible with third-party SDK and application software support
- Linear temperature output simplifies use with third-party software
- OPTIONAL multi-image streaming
- Delivers unmatched power and flexibility
- Ideal for the most complex remote monitoring and temperature measurement objectives
What’s Included?
- FLIR A400 Image Streaming Automation Thermal Camera
- Your Choice of Lens
Teledyne FLIR A400 Image Streaming Automation Thermal Camera Technical Specifications
| Digital I/O connector type | M12 12-pin A-coded, Male (shared with external power) |
| Digital Inputs | 2x opto-isolated, Vin(low)= 0–1.5 V, Vin(high)= 3–25 V |
| Digital Output Purpose | Programmatically set; fault (NC) |
| Digital Outputs | 3x opto-isolated, 0–48 V DC, max. 350 mA; solid-state opto relay; 1x dedicated as Fault output (NC) |
| Encoding | GVSP video streaming: uncompressed GVSP radiometric streaming: temperature linear and FLIR radiometric |
| Ethernet Interface | Wired, Wi-Fi (optional) |
| WiFi | Optional feature purchased separately. RP-SMA, female connector |
| EMC |
|
| Image Frequency | 30 Hz |
| Thermal Sensitivity/NETD | Lens dependent |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 15°C–35°C (59°F–95°F) and object temperature above 0°C (32°F) |
| Communication & Data Storage | |
| Digital I/O connector type | M12 12-pin A-coded, Male (shared with external power) |
| Digital I/O isolation voltage | 500 VRMS |
| Digital input purpose |
|
| Digital Inputs | 2x opto-isolated, Vin(low)= 0–1.5 V, Vin(high)= 3–25 V |
| Digital Output Purpose | Programmatically set; fault (NC) |
| Digital Outputs | 3x opto-isolated, 0–48 V DC, max. 350 mA; solid-state opto relay; 1x dedicated as Fault output (NC) |
| Encoding | GVSP video streaming: uncompressed GVSP radiometric streaming: temperature linear and FLIR radiometric |
| Ethernet | For control, result, image, and power |
| Ethernet Communication |
|
| Ethernet Connector Type | M12 8-pin X-coded, female; RP-SMA, female |
| Ethernet Interface | Wired, Wi-Fi (optional) |
| Ethernet Power | Power over Ethernet, PoE IEEE 802.3af class 3 |
| Ethernet Protocols |
|
| Ethernet Standard | IEEE 802.3 |
| Ethernet Type | 1000 Mbps |
| Multicast | Yes |
| RS-232 | NA |
| Unicast | Yes |
| WiFi | Optional feature purchased separately. RP-SMA, female connector |
| Imaging & Optical | |
| Available Lenses | 6°, 14°, 24°, 42°, Dual FOV (14° + 24°) athermalized lenses |
| Contrast Enhancement | GVSP video streaming: FSX® / Histogram equalization (IR only) |
| Detector Pitch | 17 µm |
| Focal Plane Array (FPA) | Uncooled microbolometer |
| Image Frequency | 30 Hz |
| Image Source | GVSP video streaming: visual / IR / MSX® (visual camera is an optional feature) GVSP radiometric streaming: IR camera |
| IR Resolution | 320 × 240 |
| Multi-Streaming | No, one stream only |
| Overlay | With / Without |
| Pixel Format | GVSP video streaming: YUV422 or MONO 8 GVSP radiometric streaming: MONO 16 |
| Radiometric IR video streaming | GVSP (GigE Vision) protocol |
| Spectral Range | 7.5–14 µm |
| Streaming Resolution | GVSP video streaming: 640 × 480 pixels GVSP radiometric streaming: 320 × 240 pixels |
| Thermal Sensitivity/NETD | Lens dependent |
| Video Streaming | GVSP (GigE Vision) protocol |
| Visible Camera | Optional accessory |
| Measurement & Analysis | |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 15°C–35°C (59°F–95°F) and object temperature above 0°C (32°F) |
| Atmospheric transmission correction | Based on inputs of distance, atmospheric temperature, and relative humidity |
| Emissivity Correction | Variable from 0.01 to 1.0 |
| External Optics & Windows Correction | Based on input of optics/window transmission and temperature |
| Measurement Corrections | Global object parameters |
| Object Temperature Range | -20°C to 120°C (-4°F to 248°F), 0°C to 650°C (32°F to 1202°F), 300°C to 1500°C (572°F to 3632°F) |
| Reflected apparent temperature correction | Based on input of reflected temperature |
| General | |
| Base Mounting | 4× M4 on 4 sides |
| Housing material | Aluminium |
| Size (L x W x H) | 123 × 77 × 77 mm (4.84 × 3.03 × 3.03 in) |
| Weight | 0.82 kg (1.8 lb), camera only |
| Environmental & Certifications | |
| Corrosion |
|
| EMC |
|
| Encapsulation | IEC 60529, IP 54, IP66 with accessory |
| Humidity (Operating and Storage) | IEC 60068-2-30/24 hours, 95% relative humidity, 25°C–40°C (77°F–104°F)/2 cycles |
| Operating Temperature Range |
-20°C to 50°C (–4°F to 122°F):
|
| Radio Spectrum |
|
| Shock | IEC 60068-2-27, 25 g |
| Tripod Mounting | UNC ¼″-20 on 2 sides |
| Vibration |
|
| Power | |
| External Power Operation | 24/48 V DC 8 W max |
| External Voltage | Allowed range 18–56 V DC |
| Power Connection | M12 12-pin A-coded, male (shared with Digital I/O) |
| Power Consumption |
|
| SKU | A400-IS |
|---|
