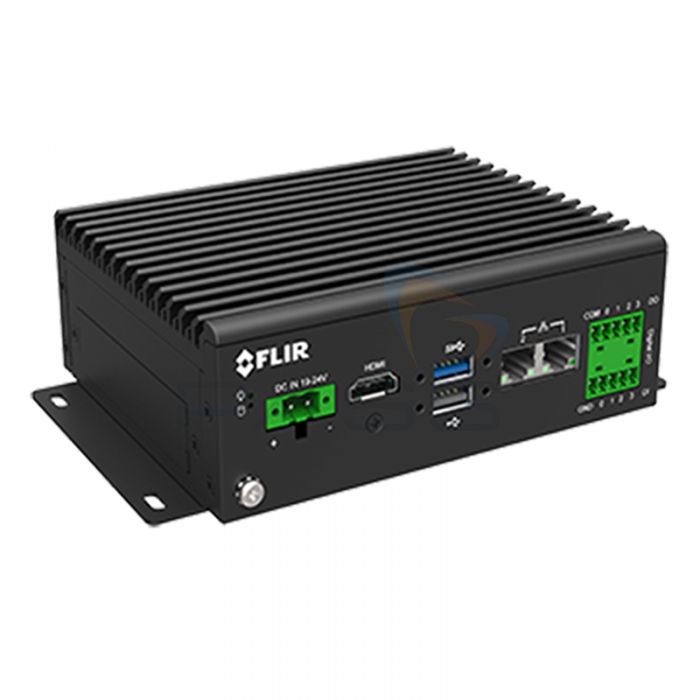

The Teledyne FLIR Bridge/ Bridge Pro IIoT Edge Gateway is an industrial internet of things edge gateway for collecting data gathered from multiple monitoring sensors and FLIR automation thermal cameras. It supports an array of software platforms including Pi Historian and OPC UA. Using the Teledyne FLIR Bridge/ Bridge Pro IIoT Edge Gateway you can monitor and analyse the condition of assets in one place, helping you to reduce maintenance costs and improve productivity, reliability, and safety. There are two versions of the Teledyne FLIR Bridge/ Bridge Pro IIoT Edge Gateway available, please see the table below for more information.
SKU | Name | Number of Sensors Connected Simultaneously |
T131367 | Teledyne FLIR Bridge | 5 |
T131369 | Teledyne FLIR Bridge Pro | Variable (see technical specifications) |
The Teledyne FLIR Bridge/ Bridge Pro IIoT Edge Gateway can be easily integrated into asset monitoring systems; it will automatically detect FLIR automation thermal cameras. The Teledyne FLIR Bridge/ Bridge Pro IIoT Edge Gateway is compatible with FLIR’s A50/A70, A400/A700, AX8, A310, A310f, and A500f/A700f. It can also collect information from any sensor that outputs data in a common industrial protocol such as REST API, MQTT, Modbus, and OPC UA.
Sensor data can be controlled using the Teledyne FLIR Bridge/ Bridge Pro IIoT Edge Gateway. For instance, apply filters or mathematical equations before sending information to third-party asset software, and/or create at-the-edge alarms and alerts. You can output processed or raw data separately or independently. Data can be transferred to multiple on-premises and cloud destinations. It is also possible to reduce data volume to save on bandwidth or create space for more sensor inputs, while a built-in buffer prevents data loss when connectivity is poor or intermittent.
The Teledyne FLIR Bridge/ Bridge Pro IIoT Edge Gateway can be used to optimise decision making and improve collaboration. This scalable internet of things edge gateway is ideal for use in industrial plants, factories, and facilities.
Specifications | FLIR Bridge | FLIR Bridge Pro |
FLIR cameras supported | AX8, A310, A310f, A50/A70 Smart Sensors, A400/A500/A700 Smart Sensors, A500f, A700f |
|
Third-party sensor support | Yes, multiple types | |
Included software | ||
Software | Sensor-to-cloud SW solution that enables the flow of sensor data to third-party systems |
|
Number of sensors connected simultaneously |
5 | Limited by bandwidth and CPU power only. Number of sensors depends on the poll rate and data types |
South plug-ins (sensors) | FLIR cameras, CSV, HTTP, Modbus, MQTT, OPC-UA, Open weathermap, and much more added continuously |
|
North plug-ins (cloud) | Google Cloud Platform IoT Core, HTTP, KAFKA, OPC-UA, ThingSpeak, Splunk |
|
Analytic filter plug-ins | Delta, mathematical expressions, Fast Fourier Transform, Python scripts, and much more added continuously. Pre-built analytical filters list available via online documentation. Bridge also allows customer user coded and ML models to be loaded. |
|
Notification plug-ins | Logic and mechanism plugins to determine if a condition has been met, what information to output, and where to output the notification. |
|
Camera discovery | Manual or automatic discovery | |
System specification | ||
Computer type | Fanless palm-size IPC | Fanless palm-size IPC |
CPU | Intel Atom E3815 single core 1.46 GHz |
4-core ARM® Cortex®-A57 CPU, 8MB L2 + 4MB L3 |
Memory | 4 GB DDR3L onboard | 4 GB LPDDR 4x onboard |
Storage | 32 GB eMMC onboard | 16 GB eMMC onboard |
Resolution | Full HD | 4 K (3840 × 2160) |
Operating system | Linux Ubuntu 18.04 | Linux Ubuntu 18.04 |
Connections | ||
LAN | 2x RJ45 Gigabit Ethernet | |
USB | 1x USB 3.0 | 1x USB 3.0, 1x USB 2.0 |
Display output | 1x HDMI, supports 1920 × 1080 @ 60 Hz |
1x HDMI (Max. resolution 3840 × 2160 @ 60 Hz) |
Wi-Fi | WIFI 802.11 a/b/g/n/ac (2.4 GHz/5 GHz) 2T2R and BT4.2 includes 2 Antennas |
|
Power system | ||
Power requirements | 10 to 30 VDC | 19 to 24 V (1.5 A to 1.18 A) |
Power supply | Not included, sold separately. T131368 for standard, T131370 for Pro |
|
Power connector | 2 pin terminal block | |
Environmental data | ||
Storage temperature | -40°C to 85°C (-40°F to 185°F) | |
Operating temperature | 0°C to 50°C (32°F to 122°F) |
-10°C to 60°C (14°F to 140°F) |
Relative humidity | 10% to 95% at 40°C, non-condensing | |
Physical data | ||
Weight | 0.5 kg | 1.2 kg |
Size (L × W × H) | 100 × 70 × 30 mm | 147 × 118 × 52 mm |
