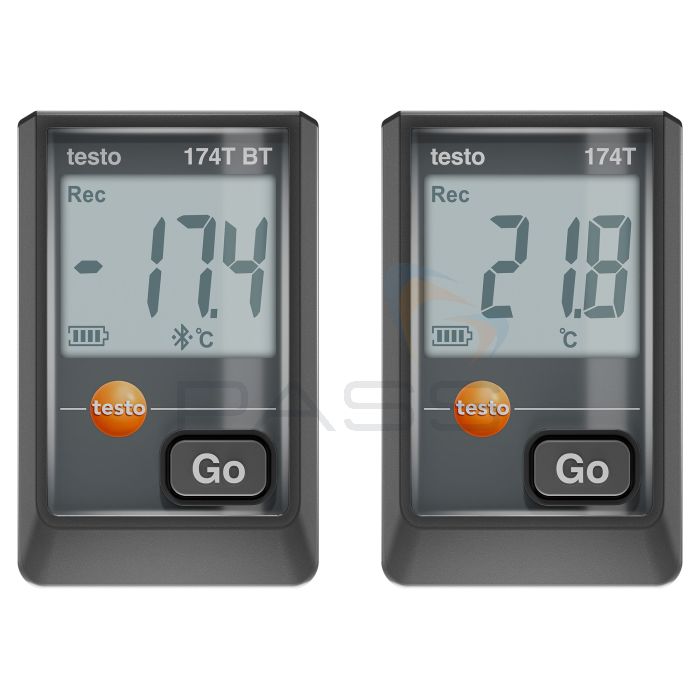

Testo 174 T Temperature Mini Data Logger
- USB-C & PC software option
- Bluetooth & app connection option
- Large storage capacity
- Easy to use
SKU
TESTO-174-T
The Testo 174 T mini data loggers provide accurate and reliable data with a broad measuring range from -30°C to +70°C. They have a large storage capacity that can hold up to 16,000 measured values. Ideal for temperature monitoring in HVAC/R systems, indoor climate control, and fault diagnostics.
The Bluetooth version (Testo 174 T BT) allows effortless operation via the Testo Smart App on iOS and Android devices. View measurements, create PDF and Excel reports, add photos or comments, and email results directly from a smartphone or tablet. Read on-site data readout from distances up to 30 metres.
The USB-C version (Testo 174 T) uses the free ComSoft Basic software. It simplifies setup and data analysis with functions like Excel export and PDF reporting.
Key Features
- Easy to use
- Efficient data readout
- Cost-effective documentation
- Expanded software functions
- Flexibility in data evaluation
- Wide temperature measuring range
- High precision
- Safe operation
- Large storage capacity
- Logger configuration can be saved
- Raw data export is possible
- Broad temperature measuring range from -22 to 158 °F (-30 °C to +70 °C)
- Reliable automatic data backup in the event of an empty battery or battery change; convenient storage of up to 16,000 measured values
- Automatic measuring data backup when the battery runs out or is changed
- Easy-to-change battery
- Display of limit value violations on the instrument display, in the app/PC and the report
- USB-C and PC software
- Fast and simple data readout via USB-C
- Professional software for Excel export, logger programming, data analysis, and PDF reporting
- ComSoft Basic software for download (free of charge)
- Logger configuration, measurement data analysis, report creation
- Particularly clear: graphic and tabular display of readings
- Colour coding of alarms
- Measurement rate freely selectable
- Bluetooth and app connection
- Free Testo Smart App includes an export function and report generation
- Simple and intuitive configuration as well as analysis of measurement data with the Testo Smart App
- Logger can remain at the measuring point
- Very clear app design and intuitive user interface
- PIN security protection against unauthorized access
- Colour coding in the app for limit value violations and symbol for the current limit value violation on the instrument display
What's Included?
- Testo 174 T mini temperature data logger (Bluetooth or USB-C version)
- USB 2.0 data transfer cable (USB-C version)
- Wall bracket
- Battery (2 x CR2032 lithium)
- Test report
Product Range
- Testo 0572174002 174 T Temperature Mini Data Logger with USB-C
- Testo 0572174202 174 T Temperature Mini Data Logger with Bluetooth
Technical Information
Specification
| 174 T | 174 T BT | |
|---|---|---|
| Sensor type | Digital | |
| Measuring range | -22 to 158 °F (-30 to +70 °C) | |
| Accuracy ±1 digit | ±0.9 °F (-22 to 158 °F) (±0.5 °C (-30 to +70 °C)) | |
| Resolution | 0.1 °F / °C | |
| Channels | 1 x internal | |
| Battery type | 2 Lithium batteries (CR2032) | |
| Battery life | 500 days (15 min. measuring cycle, 77 °F (+25 °C)) | |
| Operating temperature | -22 to 158 °F (-30 to +70 °C) | |
| Storage temperature | -40 to 158 °F (-40 to +70 °C) | |
| Dimensions | 2.4 x 1.5 x 0.7 in (60 x 38 x 18.5 mm) | |
| Weight | 1.2 oz (35 g) | |
| Certification | EN12830 | |
| Protection class | IP65 | |
| Measuring cycle | 1 min to 24 h | |
| Memory | 16,000 readings | |
| Connection/connector | USB 2.0 / USB C | Bluetooth |
| Software | Testo ComSoft Basic Testo ComSoft Professional |
Testo Smart App |
| Logger configuration | ✔ | |
| Measurement data evaluation | ✔ | |
| Reporting | ✔ | ✔ (only possible after registration) |
| Measurement data export | PDF / XLS / HTML / CSV | PDF / CSV / JSN |
