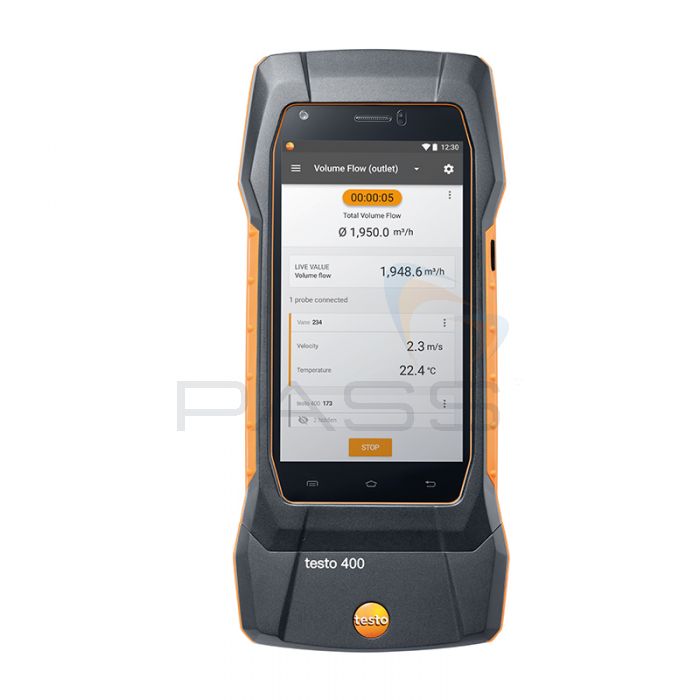

Testo 400 Universal IAQ Tester
The Testo 400 Universal IAQ Tester is an indoor air quality meter equipped with a high-precision, location-independent pressure sensor and an intelligent calibration concept enabling use with Testo smart probes. It can be used to measure, document, and analyse indoor air quality parameters such as flow, temperature, humidity, pressure, illuminance, radiant heat, turbulence, carbon dioxide, and carbon monoxide, as well as check IAQ parameters in industrial production and manufacturing processes. The Testo 400 IAQ Meter is ideal for consultants, experts, technical service providers, and service technicians working in the air conditioning and ventilation sector. Please see the video below for a brief introduction to the Testo 400 Universal IAQ Tester.
Smart and intuitive measurement programs enable testing in line with a variety of standards:
- HVAC grid measurement according to EN ISO 12599 and ASHRAE 111
- PMV/PPD in accordance with EN ISO 7730 and ASHRAE 55
- Draught and degree of turbulence in line with EN ISO 7730 and ASHRAE 55
- WBGT measurement according to DIN 33403 and EN ISO 7243
- NET measurement in accordance with DIN 33403
Probes can be swapped without restarting the Testo 400 Universal IAQ Tester enabling easy and quick testing. In addition to this, customer information such as measuring points may be managed on the Testo 400 Universal IAQ Tester; this also improves the simplicity and efficiency of testing. To ensure a zero-error display, the Testo 400 Universal IAQ Tester is equipped with an adjustment function that can be used at up to six measuring points.
Results are stored in measurement menus and evaluated on the meter according to a traffic light system. They can be sent with full documentation, including photos (the Testo 400 includes a built-in camera), comments, and your logo, to a client or colleague via email, thereby improving job efficiency. Alternatively, data can be sent to a PC for further analysis using Testo’s DataControl PC Software.
Finally, to maximise the Testo 400 Universal IAQ Tester’s uptime, the smart probes are calibrated independently of the meter.
Delivering error-free, high-precision measurements efficiently and easily, the Testo 400 Universal IAQ Tester is ideal for day-to-day operations.
Applications
The videos below illustrate some of the Testo 400 Universal IAQ Tester's applications.
Volume Flow Measurement
Volume Flow at Large Vents
Comfort Measurement
Cleanroom Measurements
Testo 400 Universal IAQ Tester Key Features
- An indoor air quality meter designed for use with Testo’s smart probes
- A high-precision, location-independent pressure sensor
- Intelligent calibration concept
- Measure, document, and analyse indoor air quality parameters
- Measure flow, temperature, humidity, pressure, illuminance, radiant heat, turbulence, carbon dioxide, and carbon monoxide
- Check IAQ parameters in industrial production and manufacturing processes
- Ideal for consultants, experts, technical service providers, and service technicians working in the air conditioning and ventilation sector
- Smart and intuitive measurement programs
- HVAC grid measurement according to EN ISO 12599 and ASHRAE 111
- PMV/PPD in accordance with EN ISO 7730 and ASHRAE 55
- Draught and degree of turbulence in line with EN ISO 7730 and ASHRAE 55
- WBGT measurement according to DIN 33403 and EN ISO 7243
- NET measurement in accordance with DIN 33403
- Swap probes without restarting the meter
- Manage customer information on the meter
- Adjustment function at up to six measurement points ensures a zero-error display
- Results are stored in measurement menus
- Evaluates readings according to a traffic light system
- Send data with full documentation to a colleague or client via email
- Built-in camera
- Analyse data using Testo’s DataControl PC software
- Smart probes are calibrated independently of the Testo 400, thereby maximising uptime
- Delivers error-free, high-precision measurements efficiently and easily
- Ideal for day-to-day operations
What’s Included?
- Testo 400 Universal IAQ Tester
- Transport Case
- Mains Unit with USB Cable
- Calibration Protocol
Testo 400 Universal IAQ Tester Technical Specifications
| Temperature - NTC | |
| Measuring range | -40 to +150 °C |
| Accuracy |
±0.2 °C ±1 Digit (-25 to +74.9 °C) ±0.4 °C ±1 Digit (-40 to -25.1 °C) ±0.4 °C ±1 Digit (+75 to +99.9 °C) ±0.5 % of mv ±1 Digit (Remaining Range) |
| Resolution | 0.1 °C |
| Temperature - TC Type K (NiCr-Ni) | |
| Measuring range | -200 to +1370 °C |
| Accuracy | ±(0.3 °C + 0.1 % of mv) ±1 Digit |
| Resolution | 0.1 °C |
| Differential pressure (internal sensor) - Piezoresistive | |
| Measuring range | -100 to +200 hPa |
| Accuracy |
±(0.3 Pa + 1 % of mv) ±1 Digit (0 to 25 hPa) ±(0.1 hPa + 1.5 % of mv) ±1 Digit (25.001 to 200 hPa) |
| Resolution | 0.001 hPa |
| Absolute Pressure (internal sensor and external probe) | |
| Measuring range | 700 to 1100 hPa |
| Accuracy | ±3 hPa |
| Resolution | 0.1 hPa |
| General Technical Data | |
| Weight | 510 g (instrument) |
| Dimensions | 210 x 95 x 39 mm ((LxWxH)) |
| Operating temperature | -5 to +45 °C |
| Product-/housing material | Plastic |
| Protection class | IP40 |
| Connectable probes | 4 x digital Bluetooth® probe or testo Smart Probe; 2 x digital probe with fixed cable or temperature probe NTC with fixed cable (via Testo Universal Connector - TUC); 2 x temperature probe TC type K with fixed cable |
| Product colour | black/orange |
| Camera image size | Main camera: 8.0 MP; Front camera: 5.0 MP |
| Battery life | approx. 10 hrs continuous operation |
| Display type | 5.0" touch display, HD 1280*720 pixels, IPS (160 k) |
| Power supply | Rechargeable li-ion battery (5550 mAh) |
| Interface | Bluetooth®; USB; WLAN |
| Memory | 2 GB; 1,000,000 measuring values |
| Storage temperature | -20 to +60 °C |
| Note | *TUC connection (Testo Universal Connector): For the connection of fixed cable digital probes and NTC probes. |
| SKU | 05600400 |
|---|---|
| Manufacturer Part Code | 0560 0400 |
