Testo 440dP Air Flow ComboKit 1 with Bluetooth

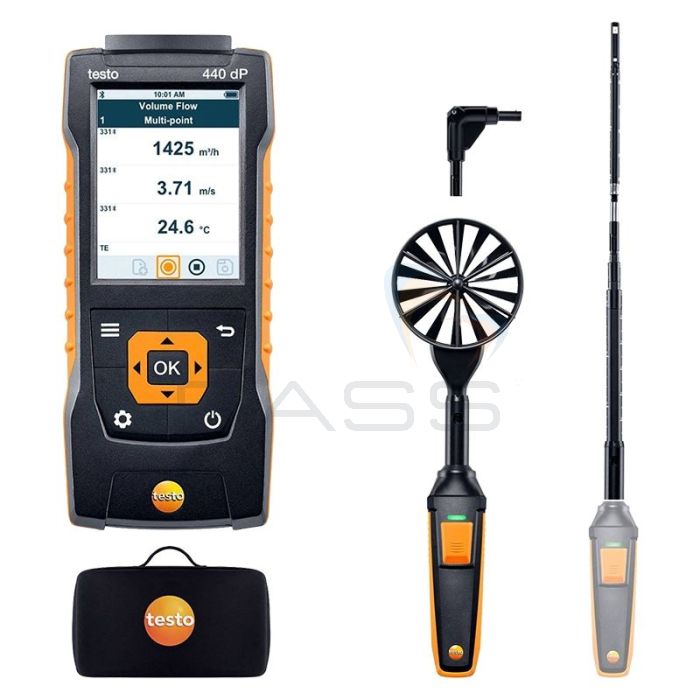

The Testo 440dP Air Flow ComboKit 1 with Bluetooth is specifically designed for measuring the volume flow, air velocity, differential pressure, humidity and temperature of ventilation ducts and outlets. To this end, the Testo 440dP Air Flow ComboKit 1 with Bluetooth includes the following products:

• Testo 440dP Air Velocity and IAQ Tester
• Testo Ø100mm Bluetooth Vane Smart Probe/ Data Logger with Temperature Sensor
• Testo Ø9mm Hot Wire Probe Head with Temperature and Humidity Sensors
• Testo Extendable 1m Telescope with 90° Angle
• Testo Combi-case for Testo 440 and Multiple Probes

For a complete list of the items included in this kit, please see the ‘What’s Included?’ section.

Testo 440dP Air Velocity and IAQ Tester Description

The Testo 440dP Air Velocity and IAQ Tester is a multifunctional environmental tester with an integrated differential pressure sensor optimised for measuring, monitoring and recording air quality parameters. Please see the following video for a quick introduction to the Testo 440dP Air Velocity and IAQ Tester.

When used with compatible Testo probes, the Testo 440dP Air Velocity and IAQ Tester can be used to measure the following parameters:

• Air velocity
• Volume flow
• Degree of turbulence
• Cooling/ heating output
• CO₂ levels
• CO levels
• Air temperature
• Humidity

PLEASE NOTE that the Testo 440dP Air Velocity and IAQ Tester’s measurement capabilities are dependent on the probes used with it; please see the video below for a brief introduction to the Testo probes compatible with this tester.

Up to three probes can be connected to the Testo 440dP Air Velocity and IAQ Tester at any one time: it is able to accommodate one Bluetooth probe, one wired probe and one type-K temperature probe. Each probe is recognised automatically by the Testo 440dP Air Velocity and IAQ Tester, removing the need to adjust parameters each time a new probe is connected, thereby improving the ease and efficiency of testing. Moreover, as only the probes need to be sent for calibration, the user can maximise the Testo 440dP Air Velocity and IAQ Tester’s uptime; it is able to remain in continual use.

Furthermore, as the Testo 440dP Air Velocity and IAQ Tester includes a differential pressure sensor it is able to determine volume flow via differential pressure and K-factor. Additionally, the user can perform funnel, pilot tube (pilot tube sold separately) and K-factor measurements. The Testo 440dP Air Velocity and IAQ Tester is also suitable for testing fans and filters, in addition to ducts, air/ ceiling outlets, fume cupboards, and air conditioning and ventilation systems, due to the inclusion of a differential pressure sensor.

The Testo 440dP Air Velocity and IAQ Tester features an intuitive interface with clearly structured measurement menus. Using these menus the operator can program the Testo 440dP Air Velocity and IAQ Tester to calculate volume flow automatically (he/she need only input the dimensions and geometry of the cross-section), as well as monitor CO and/or CO₂ levels (probe dependent). Long-term, unsupervised monitoring of CO and CO₂ levels can be programmed by entering the required measurement period and intervals.

Magnets allow the Testo 440dP Air Velocity and IAQ Tester to be attached to metal/ magnetic surfaces during long-term monitoring applications. Additionally, these magnets enable remote and wireless measurements as the Testo 440dP Air Velocity and IAQ Tester can be left in place while the user conducts cable-less measurements at a distance of up to 20m from the unit using Testo Bluetooth Smart Probes/ Data Loggers such as the vane probe and hot wire probe included in this kit. Please see the descriptions below for further details.

The user can view results on the Testo 440dP Air Velocity and IAQ Tester’s large, graphic display; as it is possible to connect up to three probes, it is also possible to view up to three parameters in parallel. Up to 7500 measurement protocols can be saved to the Testo 440dP Air Velocity and IAQ Tester’s internal memory.

Data can be downloaded to a PC for further analysis in a CSV file using a USB connection. Alternatively, the operator can print reports on-site using a Testo Bluetooth/ IRDA Printer (NOT included).

The Testo 440dP Air Velocity and IAQ Tester is a versatile, practical and affordable multifunctional environmental tester optimised for air quality applications such as adjusting air conditioning and ventilation systems and monitoring air quality and comfort levels.

Testo 440dP Air Velocity and IAQ Tester Key Features

• Multifunctional environmental tester with an integrated differential pressure sensor
• Optimised for measuring, monitoring and recording air quality parameters
• Can be used with a variety of compatible Testo probes to measure a range of air quality parameters
• Air velocity
• Volume flow
• Degree of turbulence
• Cooling/ heating output
• CO₂ levels
• CO levels
• Air temperature
• Humidity
• Connect up to three probes simultaneously: 1x Bluetooth, 1x wired and 1x type-K temperature
• Automatically recognises each probe removing the need to adjust parameters
• Only the probes need to be sent for calibration maximising the tester’s uptime
• Inclusion of a differential pressure sensor enables the determination of volume flow using differential pressure and K-factor
• The differential pressure sensor allows the user to perform funnel, pilot tube (pilot tube NOT included) and K-factor measurements
• Inclusion of a differential pressure sensor facilitates the testing of fans and filters
• Can also be used to test ducts, air/ ceiling outlets, fume cupboards, and air conditioning and ventilation systems
• Intuitive interface with clearly structured measurement menus
• Program the Testo 440dP to calculate volume flow automatically by inputting the dimensions and geometry of the duct’s cross-section
• Configure the Testo 440dP for unsupervised, long-term monitoring of CO and CO₂ levels (probe dependent): enter the measurement period and intervals
• Magnets for attachment to magnetic/ metal surfaces
• Perform remote, wireless measurements using Testo Bluetooth Smart Probes/ Data Loggers
• Large, graphic display
• Save up to 7500 measurement protocols to the internal memory
• Download data to a PC via a USB connection
• Send reports to print on-site using a Testo IRDA/ Bluetooth Printer (NOT included)
• A versatile, practical and affordable multifunctional environmental tester optimised for air quality applications

Testo Ø100mm Bluetooth Vane Smart Probe/ Data Logger with Temperature Sensor Description

The Testo Ø100mm Bluetooth Vane Smart Probe/ Data Logger with Temperature Sensor can be used with the aforementioned Testo 440dP Air Velocity and IAQ Tester to measure volume flow at air/ ceiling outlets. Furthermore, when used with the included Testo Extendable 1m Telescope with a 90° Angle (see below for an overview of this product), the Testo Ø100mm Bluetooth Vane Smart Probe is able to access and measure hard-to-reach air/ ceiling outlets. Please see the following video for an introduction to measuring volume flow at ceiling outlets.

Moreover, the Testo Ø100mm Bluetooth Vane Smart Probe can be used with funnels and flow straighteners (NOT included) to test the incoming and outgoing air at plate outlets, ventilation grilles, and swirl outlets.

As the Testo Ø100mm Bluetooth Vane Smart Probe features a universal Bluetooth handle, the user can conduct measurements up to 20m away from the Testo 440dP Air Velocity and IAQ Tester as results are transferred to the Testo 440dP via Bluetooth. The operator can also start and stop tests using the button on the universal Bluetooth handle.

Finally, the universal Bluetooth handle is compatible with a range of Testo Smart Probe heads, this means the user is able to remove the vane probe head and attach another probe head, such as the hot wire probe head included in this kit.

The Testo Ø100mm Bluetooth Vane Smart Probe/ Data Logger with Temperature Sensor is an adaptable addition to the Testo 440dP Air Velocity and IAQ Tester. It expands this instrument’s scope-for-use.

Testo Ø100mm Bluetooth Vane Smart Probe/ Data Logger with Temperature Sensor Key Features

• Use with the Testo 440dP to measure volume flow at air/ ceiling outlets
• Combine with the included 1m Telescope with a 90° angle to access and measure hard-to-reach air/ ceiling outlets without a ladder
• Use with funnels and flow straighteners (NOT included) to test incoming and outgoing air at plate outlets, ventilation grilles and swirl outlets
• Universal Bluetooth handle
• Conduct measurements up to 20m away from the Testo 440dP
• Data transferred to the Testo 440dP via Bluetooth
• Start and stop tests using the button on the universal Bluetooth handle
• The universal Bluetooth handle is compatible with a range of Testo Smart Probe heads
• Testo Smart Probe heads can be used interchangeably with the Testo universal Bluetooth handle

Testo Ø9mm Hot Wire Probe Head with Temperature and Humidity Sensors Description

The Testo Ø9mm Hot Wire Probe Head with Temperature and Humidity Sensors can be attached to Testo’s universal Bluetooth handle to measure air temperature, air humidity, air velocity and volume flow in ventilation ducts. Please see the video below for further information regarding the measurement of volume flow in ventilation ducts.

As the Testo Ø9mm Hot Wire Probe Head is compatible with Testo’s universal Bluetooth handle, results can be transferred wirelessly to the Testo 440dP over a distance of up to 20m via Bluetooth. Moreover, measurements can be commenced and halted using the button on the universal Bluetooth handle.

The Testo Ø9mm Hot Wire Probe Head with Temperature and Humidity Sensors is a versatile, useful addition to the Testo 440dP Air Velocity and IAQ Tester.

Testo Ø9mm Hot Wire Probe Head with Temperature and Humidity Sensors Key Features

• Attach to Testo's universal Bluetooth handle to measure air temperature, air humidity, air velocity and volume flow in ventilation ducts
• Transfer results over a distance of 20m via Bluetooth
• Start and stop measurements using the button on the universal Bluetooth handle
• A versatile and useful addition to the Testo 440dP Air Velocity and IAQ Tester

Testo Extendable 1m Telescope with 90° Angle Overview

• Maximum length: 1m
• Easy-to-read scale
• 90° angle for accessing air/ ceiling outlets when used with a Ø100mm vane probe
• Suitable for accessing ventilation ducts
• Sturdy and non-rotatable
• Compatible with probes featuring a cable or a universal Bluetooth handle

What’s Included?

• Testo 440dP Air Velocity and IAQ Tester
• Connection Hose
• 3x AA Batteries for the Testo 440dP
• USB Cable
• Calibration Protocol for Testo 440dP
• Testo Ø100mm Bluetooth Vane Smart Probe/ Data Logger with Temperature Sensor
• Bracket for Testovent Measurement Funnel
• 4x AA Batteries
• Calibration Protocol for the Testo Ø100mm Vane Probe
• Testo Ø9mm Hot Wire Probe Head with Temperature and Humidity Sensors
• Calibration Protocol for the Testo Ø9mm Hot Wire Probe Head
• Extendable 1m Telescope with 90° Angle
• Testo Combi-case for Testo 440 and Multiple Probes
