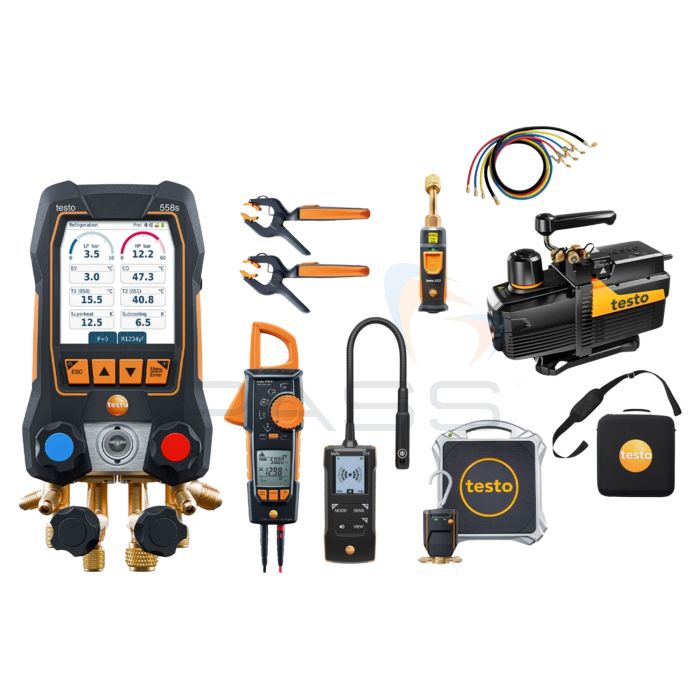

Testo 558s Ultimate Refrigeration Kit

Watch Our Videos

Digital Manifold, Clamp Thermometers
Clamp Meter, Refrigerant Scales
Vacuum Probe, Vacuum Pump
Refrigerant Leak Detector

SKU

300564500004

MPN

300564 5000 04

View Similar Products

Description Offers Technical Info Reviews Accessories

The Testo 558s Ultimate Refrigeration Kit provides a complete digital solution for refrigeration and air conditioning servicing, combining wireless measurement, evacuation, charging and electrical testing in a single package. At its core is the Testo 558s Digital Manifold with a large touchscreen display, Bluetooth connectivity and support for the included 115i Clamp Thermometers and 552i Vacuum Probe for wireless pressure, temperature and vacuum measurements.

Automated refrigerant charging is enabled by the 560i Refrigerant Scale and intelligent refrigerant valve, while the 565i Vacuum Pump, 770-3 TRMS Clamp Meter and 316-3 Refrigerant Leak Detector complete the workflow from evacuation and leak detection to electrical diagnostics. The included instruments integrate with the Testo Smart App for wireless data transfer, measurement logging, report generation, and digital recordkeeping.

Check Out the Brand NEW testo 558s

Reliable work needs efficient instruments. Meet the testo 558s.

Chloe Jenning - Reference Story for testo 558s Digital Manifold

Please visit our listings below if you require further information on the products.

What's Included?

Testo 558s Digital Manifold
Two Testo 115i Clamp Thermometers
Testo 770-3 Clamp Meter
Testo 560i Refrigerant Scales
Testo Refrigerant Valve
Testo 552i Vacuum Probe
Testo 565i Vacuum Pump
Testo 316-3 Refrigerant Leak Detector
Testo 4-piece hose set

The Testo 558s Smart Digital Manifold Range

	Testo 558s Vacuum Kit	Testo 558s Vacuum Kit with Hose Set	Testo 558s Heat Pump Kit	Testo 558s Heat Pump Kit with Hose Set	Testo 558s Ultimate Refrigeration Kit
SKU	0564 5582 02	0564 5583 02	0564 5585 02	0564 5586 02	300564 5000 04
Testo 558s Smart Digital Manifold	✔	✔	✔	✔	✔
Testo 558s+ Transport Case	✔	✔	✔	✔	✔
2 x Testo 115i Clamp Thermometers	✔	✔	✔	✔	✔
Testo 552i Vacuum Probe	✔	✔	✔	✔	✔
4-Piece Hose Filling Set	-	✔	-	✔	✔
USB-C Cable	✔	✔	✔	✔	✔
3 x AA Alkaline Batteries	✔	✔	✔	✔	✔
Calibration Protocol for Testo 558s	✔	✔	✔	✔	✔
Testo 560i + Refrigerant Valve	-	-	✔	✔	✔
Testo TRMS Clamp Meter 770-3	-	-	✔	✔	✔
Testo 560i Scales + Refrigerant Valve	-	-	✔	✔	✔
Testo 565i Vacuum Pump (low rate: 7 CFM (198 l/min))	-	-	-	-	✔
Testo 316-3 Refrigerant Leak Detector	-	-	-	-	✔

£1,435.00

£1,722.00 inc vat

Free Delivery*

Stock Due: Typically 1-2 Weeks

Free Testo Water Pump Pliers View 2 Offers

60 Day Returns

How Can We Help? Got a question? Our team's ready to help. Looking for something specific? We carry thousands more products than you see here. Ask Our Experts A Question

Offers

Technical Information

Specification

Testo 558s Digital Manifold

Sensor Types	Pressure	Temperature
Operating Temperature	-20 to +50 °C
Storage Temperature	-20 to +60 °C
Battery Type	Built-in rechargeable battery (USB-C): LI battery 18650 Replaceable battery: 3 AA alkaline batteries
Battery Life with Backlighting and Bluetooth	≤ 70 hours
Auto Power Off	After 10 minutes, when not connected via Bluetooth
Dimensions	229 x 112.5 x 71 mm
Weight	1.3 kg
Protection Class	IP54
Display	Capacitive touchscreen
Bluetooth Technology/Range	Bluetooth 5.0/150 m
Data Logging	Available as an optional upgrade via in-app purchase (72h data logging)

Measuring Range	-1 to 60 bar	-50 to +150 °C
Accuracy (at 22 °C)	±0.25 % fs	±0.5 °C
Solution	0.01 bar	0.1 °C
Probe connections	3 x 7/16" - UNF + 1 x 5/8" - UNF	2 x plug-in (NTC)
Overload	65 bar	-

Testo 115i Clamp Thermometer Smart Probe

Compatibility	Requires a mobile terminal device with Bluetooth® 4.0
Sensor Type	NTC
Measuring Range	-40 to +150 °C
Accuracy ±1 Digit	±1.3 °C (-20 to +85 °C)
Resolution	0.1 °C
Compatibility	Requires iOS 8.3 or newer / Android 4.3 or newer
Storage Temperature	-20 to +60 °C
Operating Temperature	-20 to +50 °C
Battery Type	3 micro batteries AAA
Battery Life	150 hrs
Dimensions	183 x 90 x 30 mm
Bluetooth Range	up to 100 m

Testo 770-3 - TRMS Clamp Meter

Temperature - TC Type K (NiCr-Ni)
Measuring Range	-20 to +500 °C
Accuracy	±1 °C (0 to +100 °C)
Resolution	0.2 °C
DC Voltage
Measuring Range	1.0 to 600.0 V
Resolution	max. 1 mV
Accuracy	± (0.8 % of mv + 3 Digit)
AC Voltage
Measuring Range	1.0 mV to 1000.0 V
Resolution	max. 1 mV
Accuracy	± (1 % of mv + 3 Digit)
DC Current
Measuring Range	0.01 to 600.0 A (clamp) 0.1 to 600.0 μA (measuring cables)
Resolution	0.1 (clamp) 0.1 (measuring cables)
Accuracy	± (2 % of mv + 5 Digit) (measuring cables) ± (2 % of mv + 5 Digit) (clamp)
AC Current
Measuring Range	0.01 to 600.0 A (clamp) 0.1 to 600.0 μA (measuring cables)
Resolution	0.01 A (clamp) 0.1 μA (measuring cables)
Accuracy	± (2 % of mv + 5 Digit) (clamp) ± (1.5 % of mv + 5 Digit) (measuring cables)
Resistance
Resolution	max. 0.01 Ohm
Measuring Range	0.10 to 60.0 MOhm
Accuracy	± (1.5 % of mv + 3 Digit)
Capacitance
Resolution	max. 0.01 nF
Measuring Range	0.001 μF to 60000.00 μF
Accuracy	± (1.5 % of mv + 5 Digit)
Frequency
Resolution	max. 0.1 Hz
Measuring Range	0.00 Hz to -10 kHz
Accuracy	± (1 % of mv + 1 Digit)
Active Power
Measuring Range	0.1 W to 600 kW
Accuracy	± (5 % of mv + 5 Digit)
Resolution	0.1 W
Reactive Power
Measuring Range	0.1 to 600.0 kvar
Accuracy	± (10 % of mv + 5 Digit)
Resolution	0.1 var
Apparent Power
Measuring Range	0.1 VA to 600.0 kVA
Accuracy	± 1 Digit
Resolution	0.1 VA
Direct Current DC Voltage
Measuring Range	0.1 W to 600.0 kW
Accuracy	± 1 Digit
Resolution	max. 0.1 W
Power Factor
Measuring Range	-1.00 to +1.00
Accuracy	± (10 % of mv + 5 Digit)
Resolution	0.01
General Technical Data
Operating Humidity	0 to 80.0 %RH
Weight	378 g
Dimensions	249 x 96 x 43 mm
Operating Temperature	-10 to +50 °C
Connectable Probes	1 x temperature probe (adapter required for type K thermocouples)
Product Colour	Black
System Requirements	requires iOS 11.0 or newer; requires Android 6.0 or newer; requires a mobile end device with Bluetooth 4.0
Standards	EN 61326-1; EN 61010-2-032; EN 61140
Battery Type	3 AAA micro batteries
Display Size	2 lines
Display Type	LCD (Liquid Crystal Display)
Interface	2 measuring jacks
Storage Temperature	-15 to +60 °C
Overvoltage Category	CAT IV 600V; CAT III 1000V
Authorizations	CSA; CE
Internal_resistance	11 MOhm (AC / DC)
Instrument Measurement Functions
Diode Test	Yes
Continuity Testing	Yes
Display Lighting	Yes
Hold	Yes
MinMax	Yes
Power Measurement	Yes
Temperature Measurement with Adaptor	Yes
True RMS	Yes
Inrush Current Measurement	Yes
Bluetooth	Yes
Display (Counts)	6,000
Automatic Measurement Parameter Detection	Yes
µA Current Measuring Range	Yes

Testo 560i Digital Refrigerant Scale

Measuring Range	0.00 to 100.00 kg
Accuracy (+22 °C, ± 1 digit)	Operating temperature -5 °C to +25 °C: ≤ ±(10 g + 0.03 %rdg) (0 to 30 kg) ≤ ±(10 g + 0.05 %rdg) (30 to 100 kg) other working temperature: ≤ ±20 g (0 to 10 kg) ≤ ±(10 g + 0.15 %rdg) (10 to 100 kg)
Solution	0.01 kg
Ambient Humidity	0 to 80 %RH
Connection	Bluetooth 4.2
Bluetooth Range	>30 m free field
Operating Temperature	-10 °C to +50 °C / +14 °F to +122 °F
Storage Temperature	-10 °C to +50 °C / +14 °F to +122 °F
Dimensions	310 x 287 x 58 mm
Weight	4.36 kg (incl. batteries and bag)
Protection Class	IP44
Battery Type	4 AA alkaline batteries
Battery Life	> 70 h at +25 °C

Testo Intelligent Valve

Ambient Humidity	0 to 80 %RH
Maximum Working Pressure	35 ba
Connection	Bluetooth 4.2
Bluetooth Range	>50 m free field
Operating Temperature	-10 °C to +50 °C / +14 °F to +122 °F
Storage Temperature	-10 °C to +50 °C / +14 °F to +122 °F
Dimensions	95 x 119 x 47 mm
Weight	0.57 kg incl. batteries
Protection Class	IP54
Battery Type	9.0 V alkaline battery (6LR61)
Battery Life	>60 hrs + 3000 valve operations

Testo 552i Wireless Bluetooth Vacuum Smart Probe

Sensor Type	Pressure
Measuring Range	0 to 26.66 mbar/0 to 20000 microns
Accuracy ±1 Digit	±10 microns + 10% of m.v. (100 to 1000 microns)
Resolution	1 micron (0 to 1000 microns)
	10 microns (1000 to 2000 microns)
	100 microns (2000 to 5000 microns)
Connection	7/16" - UNF
Overload	6.0 bar/87 psi (relative: 5.0 bar/72 psi)
Connection	Bluetooth 4.2
Bluetooth Range	150 m
Storage Temperature	-20 °C to +50 °C
Operating Temperature	-10 °C to +50 °C
Battery Type	3 AAA microcells
Battery Life	39 h
Auto Power Off	After 10 minutes, when not connected via Bluetooth
Protection Class	IP54
Dimensions	150 x 32 x 31 mm
Weight	142 g

Testo 565i Smart Vacuum Pump

Flow Rate	7 CFM / 198 l/min
Weight	12 kg
Ultimate Vacuum	15 micron
Refrigerant	A2L / A2 / A3 certified
Connection sizes	1/4 SAE, 3/8 SAE,1/2 SAE
Bluetooth	BLE 5.0: 30 m distance
Operating Temperature	+5 to +40 °C
Pump Type	Rotary vane pump
Number of Stages	Two-stage pump
Oil Compatibility	ISO VG 46

Testo 316-3 Refrigerant Leak Detector

Sensitivity	4 g/a
Temperature Range of Application	-20 to +50°C
Storage Temperature	0 to +50°C
Humidity Range of Application	20% to 80% rF
Detectable Refrigerants (with sensitivity < 4g/a)	R-22, R134a, R-404A, R-410A, R-507, R438A and all CFCs, HCFCs, HFCs
Conformities	SAE J1627, EN 14624, EG 2004/108/EG
Battery Type	2x D
Battery Lifetime	16 hours of permanent operation
Sensor Lifetime	about 80 - 100 hours
