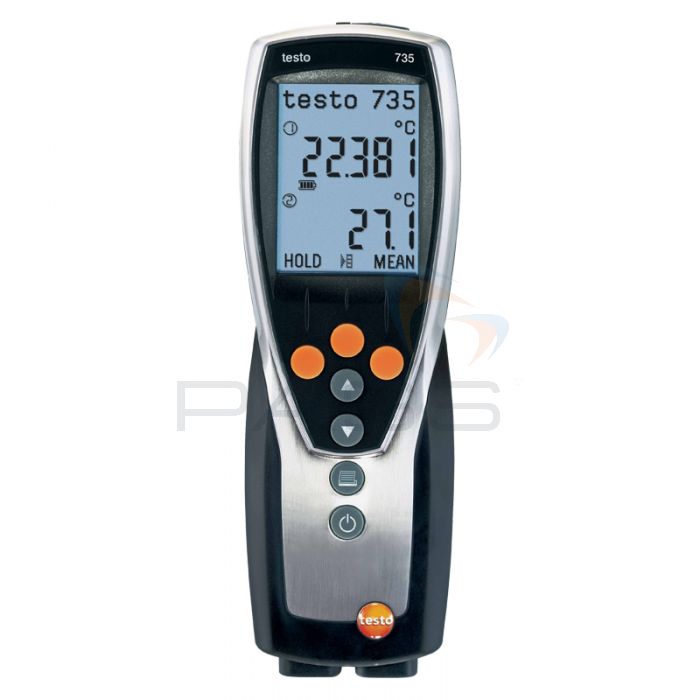

Testo 735-1 - Multi-Channel Thermometer
The Testo 735-1 is an advanced, high accuracy thermometer that can be used either to gain measurements of an application or alternatively can be used for reference against working instruments in calibration laboratories.
Since the device is multi-channel, this means it can be used to measure two different measurements at the same time. This is carried out by the attachment of several different probe types (sold separately) that can be used in several different applications.
The Testo 735-1 is compatible with the following probe types (sold separately):
- Waterproof immersion/penetration probe , T/C Type K
- Waterproof stainless steel food probe (Ip65) T/C Type K
- Robust, waterproof PT100 immersion/penetration probe
This product can also be used to print out directly on site via the use of an optional printer, displays, saves and prints Delta T, min, max and mean values and has an audible alarm should limits be exceeded.
Testo 735-1 Advanced Multi-Channel Thermometer Key Features
- Dual-probe input with simultaneous readings
- Compatible with multiple probe types
- IP65 protection rating
- Audible alarm when limits are exceeded
- 200 hour battery life
- Wide measurement range (varies depending on probe – see Tech Specs for full list)
- Displays, saves and prints Delta T, min, max and mean values
- Optional printout of readings
Full List of Products Included
- Testo 735-1 Advanced Multi-Channel Thermometer
- Battery
- Calibration Protocol
Technical Specifications
| Storage temperature | -30 to +70 °C |
|---|---|
| Operating temperature | -20 to +50 °C |
| Battery type | Alkali manganese, mignon, Type AA |
| Battery life | 200 h |
| Weight | 428 g |
| Dimensions | 220 x 74 x 46 mm |
| Material/Housing | ABS/TPE/Metal |
| Probe type Typ T (Cu-CuNi) | |
|---|---|
| Meas. range | -200 to +400 °C |
| Accuracy | ±0.3 °C (-60 to +60 °C) ±(0.2 °C + 0.3% of mv) (remaining range) |
| Resolution | 0.1 °C |
| Probe type Pt100 | |
| Meas. range | -200 to +800 °C |
| Accuracy | ±0.2 °C (-100 to +199.9 °C) ±0.2% of mv (remaining range) |
| Resolution | 0.05 °C |
| Probe type Type K | |
| Meas. Range | -200 to +1370 °C |
| Accuracy | ±0.3 °C (-60 to +60 °C) ±(0.2 °C + 0.3% of mv) (remaining range) |
| Resolution | 0.1 °C |
| Probe type Typ J (FeCuNi) | |
| Meas. Range | -200 to +1000 °C |
| Accuracy | ±0.3 °C (-60 to +60 °C) ±(0.2 °C + 0.3% of mv) (remaining range) |
| Resolution | 0.1 °C |
| Probe type Typ S (Pt10Rh Pt) | |
| Meas. Range | 0 to +1760 °C |
| Accuracy | ±1 °C (0 to +1760 °C) |
| Resolution | 1 °C |
| SKU | 5607351 |
|---|---|
| Manufacturer Part Code | 0560 7351 |
