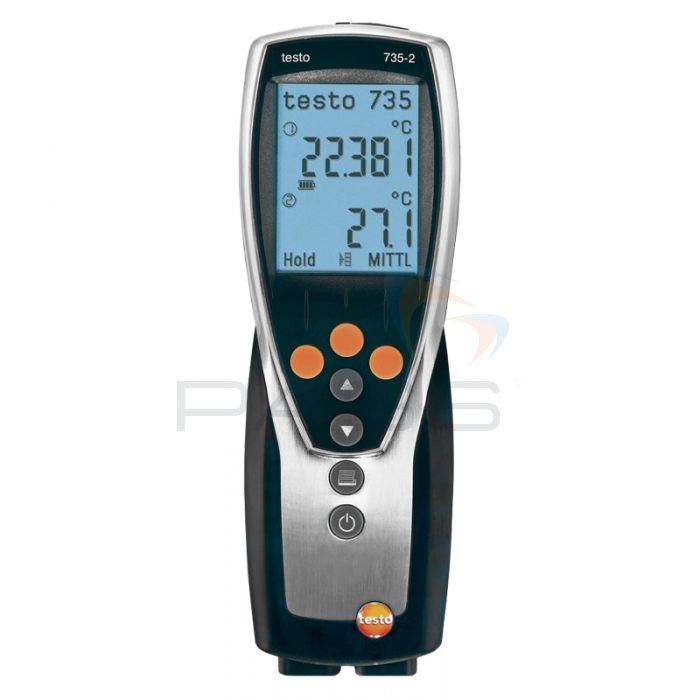

Testo 735-2 Multi-Channel Thermometer
This Testo temperature measurement device is designed to accept several different types of temperature probe. It’s compatible with PT100 probes, Type K probes, Type T probes, Type J probes and Type S probes, each of which gives the device different measurement capabilities. With an S probe equipped, the device can measure up to 1760°C, while with a Type K, T or J probe can measure temperatures as low down as -200°C.
The 735 actually comes in two versions. This type, the 735-2, comes as standard with integrated memory of up to 1000 readings. This allows users to store their test data for recall either on the device, or via PC, at a later date. Software designed to be used with this device is included as standard in the package.
Testo 735-2 Thermometer Key Features
- 10,000 records internal memory storage
- Special PC software allows download and interaction with test data
- Displays, saves and prints Delta T, min, max and mean values
- Audible alarm when values are exceeded
- Compatible with various different probe types
- High accuracy testing measurements
- Selectable storage cycle
- Download test data to PC
Full List of Products Included
- Testo 735-2 Thermometer
- PC Software
- USB Data Transmission Cable
- Battery
- Calibration Protocol
Technical Specifications
| Storage temperature | -30 to +70 °C |
|---|---|
| Operating temperature | -20 to +50 °C |
| Battery type | Alkali manganese, mignon, Type AA |
| Battery life | 200 h |
| Weight | 428 g |
| Dimensions | 220 x 74 x 46 mm |
| Material/Housing | ABS/TPE/Metal |
| Probe type Typ T (Cu-CuNi) | |
|---|---|
| Meas. range | -200 to +400 °C |
| Accuracy | ±0.3 °C (-60 to +60 °C) ±(0.2 °C + 0.3% of mv) (remaining range) |
| Resolution | 0.1 °C |
| Probe type Pt100 | |
| Meas. range | -200 to +800 °C |
| Accuracy | ±0.2 °C (-100 to +199.9 °C) ±0.2% of mv (remaining range) |
| Resolution | 0.05 °C |
| Probe type Type K | |
| Meas. Range | -200 to +1370 °C |
| Accuracy | ±0.3 °C (-60 to +60 °C) ±(0.2 °C + 0.3% of mv) (remaining range) |
| Resolution | 0.1 °C |
| Probe type Typ J (FeCuNi) | |
| Meas. Range | -200 to +1000 °C |
| Accuracy | ±0.3 °C (-60 to +60 °C) ±(0.2 °C + 0.3% of mv) (remaining range) |
| Resolution | 0.1 °C |
| Probe type Typ S (Pt10Rh Pt) | |
| Meas. Range | 0 to +1760 °C |
| Accuracy | ±1 °C |
| Resolution | 1 °C |
Accessories related to this product:
0 Reviews
Overall Rating
Additional Information
| SKU | 5637352 |
|---|---|
| Manufacturer Part Code | 0563 7352 |
