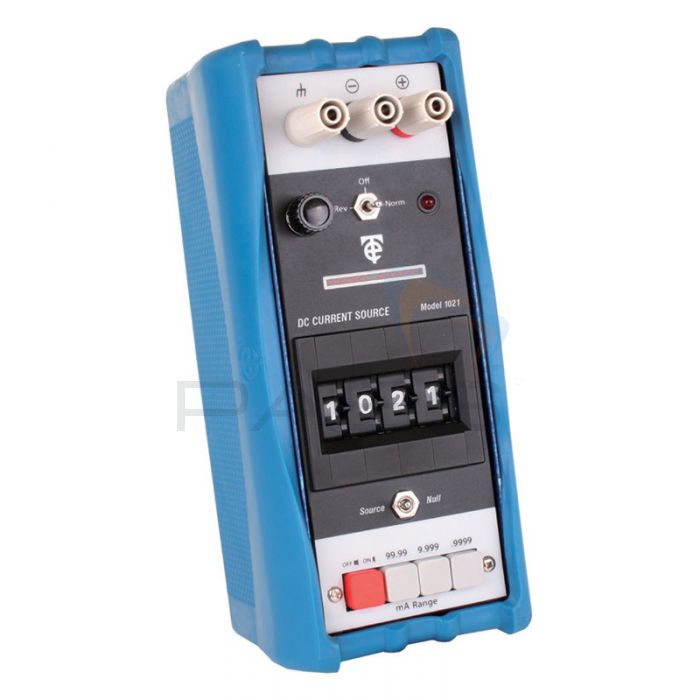

Time Electronics 1021 DC Current Source

Time Electronics 1021 DC Current Source
sku: 1021
MPN: 1021

Free UK Delivery On Orders Over £40
  • 2.4 watts max output power
  • Three separate output ranges
  • Useful for lots of different applications

£885.00 Incl. VAT £1,062.00
Members earn 1770 points

Do you have a question or found it cheaper? Contact us

Description

Time Electronics 1021 DC Current Source Details

Ideal for calibration purposes, this DC current source can be used to source and measure current for testing and calibrating transducers, semiconductors, relays, switches and much more.

The 1021 is capable of outputting current from 0 to 100mA in 3 ranges: 0 to 99mA in 10μA steps, 0 to 9.999mA in 1μA steps and 0 to 999.9μA in 0.1μA steps. The tester's output voltage is adjustable from 14 to 40V with maximum output power of 2.4 watts. All generated results are accurate within 0.02% for added levels of precision.

For user protection, the 1021 is short circuit and overload protected. It also includes an LED voltage limit indicator. The tester's safety terminals are fully compatible with 4mm shrouded plugs plus standard plugs, bare wires and spade terminals.

Time Electronics 1021 DC Current Source Key Features

  • 0 to 100mA output in three ranges
  • Accuracy within 0.02%
  • 25ppm/hr stability
  • Up to 40V output drive
  • Short circuit and overload protection
  • Safety terminals
  • Removable protective cover
  • Powered by standard AA batteries

What's Included?

  • Time Electronics 1021 DC Current Source
  • Mains Charger
  • Protective Cover
Technical Specs

Part Code: 1021

Time Electronics 1021 Technical Specifications

Output 0 to 99.99mA in 3 ranges
0 to 99.99mA in 10μA steps
0 to 9.999mA in 1μA steps
0 to 999.9μA in 0.1μA steps
Accuracy ±0.02% of setting ± 0.02% of range, ±0.2μA
Voltage Capacity Adjustable between 14 and 40V. Maximum output power 2.4W
Voltage Limit Indicator Provides indication of insufficient drive voltage
Output Polarity Positive or negative switch selected. A centre 'off' position provides an open circuit on the output terminals
Output Stability Better than 60ppm per °C (-10 to +50°C). Better than 25ppm/hr (at constant temperature)
Output Noise Less than 15ppm of full scale
Load Regulation Better than 20ppm per volt change in output
Null Sensitivity Adjustable from ±20mA to ±20μA FSD via front panel control. Maximum resolution is 1μA
Power Supply NiMH rechargeable batteries with external mains recharger. Standard mains voltage is 220 to 250V, 60/50Hz. 100-125V, 50/60Hz is available but must be specified on ordering
General Specifications
Dimensions 200 x 75 x 110mm (215 x 100 x 120mm including protective cover)
Weight 1kg (1.4kg including protective cover)
