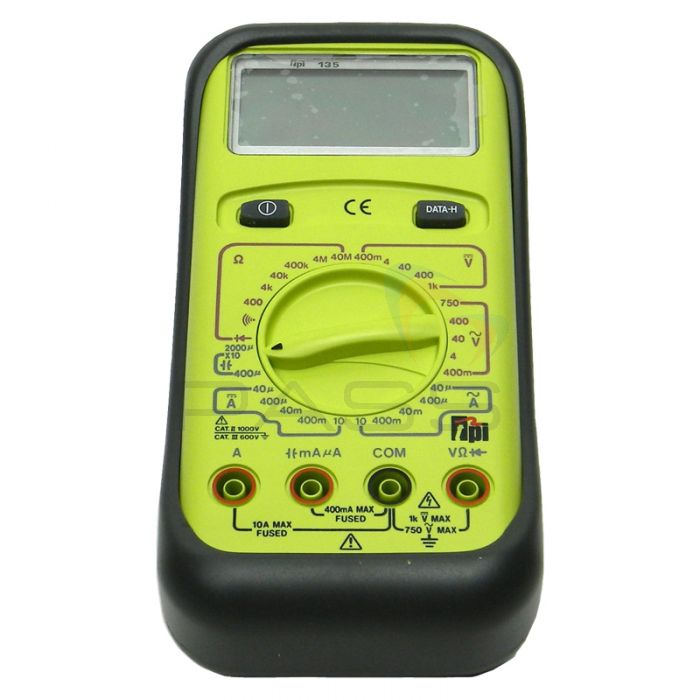

TPI 135 Digital Multimeter w/ Capacitance Function

SKU
TPI-135
Rating:
0%
(0)
Reward Points (?)

Logged in, worth £1.26, read more.

:
126
£75.60 £63.00
Only 1 in Stock Free UK Delivery* Delivery Options

UK - Zone 1 Orders

England, Wales & most of Scotland.

Free 3-5 Working Day1
Orders Over £99 & Selected Items

Economy 2-3 Working Day1
From £1.95

Tracked 2-3 Working Day
£4.95

Express Next Working Day
£7.95

Priority Next Working Day
£14.95 (Pre-Noon)
£19.95 (Pre-10:30am)

Saturday & Sunday
£14.95 (Pre-Noon)

UK - Zone 2 Orders

Highlands, Islands & Northern Ireland.

Free 3-5 Working Day1
Selected Items (Calculated at Checkout)

Economy 2-3 Working Day2
From £1.95

Tracked 2-3 Working Day
£9.95

International Orders

Delivery is calculated at checkout.


Note: Next day delivery is not guaranteed for orders placed after 3:00pm. Prices Ex VAT.

1, 2 See delivery page for more details.

Advice & Support
Price Match Request

The upgraded version of TPI's 133 DMM, the 135 has all of the functionality of the previous model plus an additional capacitance testing function.

Handheld and portable for use in any application, the 135 has a large-size 4000 count LCD screen and rotary dial for easy selection of testing procedures. It can perform testing of DC voltage to 1000V, AC voltage to 750V, AC/DC current to 10A, resistance to 40MΩ, capacitance to 20000μF and can also perform continuity/diode testing.

Need to jot down a measurement? The 135 has a data hold function which will temporarily store the last value taken on the screen. This digital multimeter is also manual ranging.

TPI 135 Digital Multimeter Key Features

  • Measurements of DC voltage to 1000V
  • AC voltage measurements to 750V
  • AC/DC current testing to 10A
  • Resistance testing to 40MΩ
  • Capacitance testing to 20000μF
  • Continuity testing with audible buzzer
  • Diode testing
  • 4000 count LCD screen
  • Data hold function
  • Manual ranging
  • 200 hour typical battery life

What's Included?

  • TPI 135 Digital Multimeter
  • Rubber Boot
  • Test Lead Set
  • Battery
  • Instruction Manual
Part Code135

TPI 135 Technical Specifications

DC Volts  Maximum Input: 1000V

 Maximum Resolution: 0.1mV

 Accuracy: +/-0.5%

 AC Volts  Maximum Input: 750V

 Maximum Resolution: 0.01mV

 Accuracy: +/-0.8%

 DC Amps  Maximum Input: 10A

 Maximum Resolution: 0.01μA

 Accuracy: +/-5%

 AC Amps  Maximum Input: 10A

 Maximum Resolution: 0.01μA

 Accuracy: +/-0.75%

 Resistance (Ohms)  Maximum Input: 40MΩ

 Maximum Resolution: 0.1mΩ

 Accuracy: +/-0.75%

 Frequency  N/A
 Capacitance  Maximum Input: 20000µF

 Maximum Resolution: 0.01µF

 Accuracy: +/-2%

 Inductance  N/A
 Temperature

 (K-Type Thermocouple)

 N/A
 Continuity  Audible at less than 100Ω
 Diode  3V at 1mA maximum output
 Duty Cycle  N/A
 True RMS Responding  No
 Conductance  No
 Pulse Width  No
 Data Hold  Yes
 Min/Max Record  No
 Time Stamp Logging  No
 Relative Mode  No
 Compare Mode  No
 RS-232 Output  No
 Process Loop Output  No
 Sleep Mode / Auto Off  No
 Protective Boot  Yes (standard)
 Display Type  4000 count LCD
 Range Selection  Manual
 Operating Temperature  32°F to 104°F (0°C to 40°C)
 Storage Temperature  14°F to 122°F (-10°C to 50°C)
 Humidity  80% non-condensing
 Size  7.4” x 3.4” x 1.2” (187mm x 86mm x 33mm) with boot
 Weight  12oz (340g) with boot
 Battery Type  1.5V “AA” Alkaline (2)
 Battery Life  200hrs Typical
 OverInput Category  CAT III 600V
 Agency Approval  cULus 61010-1, IEC 61010-1
 Warranty  Limited Lifetime
