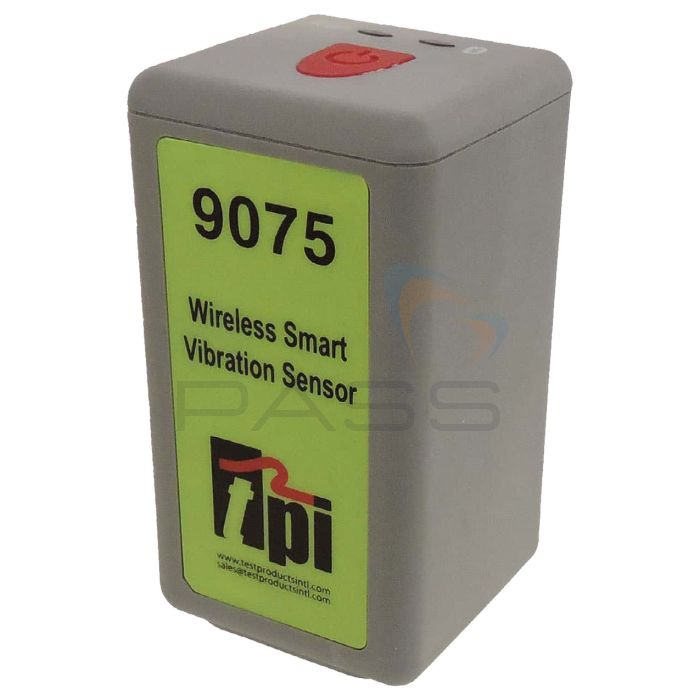

TPI 9075 Wireless Accelerometer
- Remote Vibration Readings
- Wireless Charging
- Optional Android Tablet, Ultra App or C-Trend Software
SKU
TPI-9075-OPTIONS
The TPI 9075 is suitable for vibration analysis and condition monitoring, with multiple kit options to suit different user requirements. Whether supplied as a standalone sensor or bundled with software and an Android tablet, all variants are built around the same core wireless accelerometer, designed to capture accurate vibration data and transmit it via Bluetooth for real-time analysis.
Take remote vibration readings using the free Ultra App, making it ideal for assets that are difficult to access, positioned at height, or located behind safety guarding. The sensor can be placed directly on the machine, allowing users to stand back and safely view live readings on a mobile device. This approach improves both safety and efficiency during routine inspections and fault investigation.
The system supports rapid fault identification, remote vibration readings using the Ultra App, colour-coded alarm levels, ISO vibration standards and Bearing Damage Units (BDU). For more advanced diagnostics, users can analyse complex vibration behaviour using an 800-line spectrum with zoom and cursor functionality.
Measurement data can be viewed in multiple formats, including ISO, BDU, displacement, and total g, alongside detailed diagnostic tools such as FFT analysis, VA bands, and time waveform views. The TPI 9075 can be supplied with the Ultra App alone, combined with C-Trend II software for advanced trending and analysis, or as a complete package including an Android tablet.
Key Features
- Remote Vibration Readings with the Free View App
- Identify the vibration problem: unbalance, misalignment or looseness; in addition to the bearing condition
- Place the sensor on the asset, potentially behind a safety gate, up a height or hard to reach areas, then stand back and see the readings in the palm of your hand
- Overall machine and bearing conditions: vibration values are displayed with colour-coded alarm levels for ISO values and Bearing Damage (BDU)
- Identify complex issues: 800-line spectrum with zoom and cursor
- View Readings as ISO, BDU, Displacement and Total (g)
- View the FFT, VA Bands, & Time Waveform
- Create reports & share them using e-mail, or file sharing such as OneDrive, Google Drive, Dropbox, etc.
- Wireless Charging
- Kits are available to buy with an Android Tablet running the Ultra App or C-Trend Software Including Trending, Global Connectivity and much more!
What's Included?
- 9075 - Accelerometer Only
- TPI 9075 Wireless Accelerometer
- ¼x28 magnet
- Wireless charging pad and USB cable
- 9075K1 - Ultra App & Android Tablet
- TPI 9075 Wireless Accelerometer
- TPI Android tablet
- Protective case
- TPI Ultra app
- Driver activation key
- Carry case
- ¼x28 magnet
- Wireless charging pad and USB cable
- 9075K1-NT - Ultra App
- TPI 9075 Wireless Accelerometer
- TPI Ultra app
- Driver activation key
- Carry case
- ¼x28 magnet
- Wireless charging pad and USB cable
- 9075K2 - Ultra App, C-Trend II Software & Android Tablet
- TPI 9075 Wireless Accelerometer
- TPI Android tablet
- Protective case
- C-Trend II software with activation key
- TPI Ultra app
- Driver activation key
- Carry case
- ¼x28 magnet
- Wireless charging pad and USB cable
- 9075K2-NT - Ultra App & C-Trend II Software
- TPI 9075 Wireless Accelerometer
- C-Trend II software with activation key
- TPI Ultra app
- Driver activation key
- Carry case
- ¼x28 magnet
- Wireless charging pad and USB cable
Product Range
- TPI 9075 9075 Wireless Accelerometer, Accelerometer Only
- TPI 9075K1 9075 Wireless Accelerometer, Ultra App & Android Tablet
- TPI 9075K1-NT 9075 Wireless Accelerometer, Ultra App
- TPI 9075K2 9075 Wireless Accelerometer, Ultra App, C-Trend II Software & Android Tablet
- TPI 9075K2-NT 9075 Wireless Accelerometer, Ultra App & C-Trend II Software
Offers
Free Tyre Inflator (Spend £1000+)
Automatically adds to your basket when the total exceeds £1000+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
| Signal Parameters | |
|---|---|
| Frequency Range / Resolution | 2Hz to 10kHz l 100 to 51,200 Lines |
| BDU - Bearing Noise - Frequency Range | 1kHz - 10kHz |
| Dynamic Range | 108dB |
| A/D Converter | 24 bit |
| Information | |
| Connection | Bluetooth |
| Battery | 2000mAh Lithium-Ion battery |
| Charger | Wireless through a charging pad |
| IP Rating | IP 67 |
| Operating Temperature | 32 to 113°F (0 to 45°C) - charging 32 to 140°F (0 to 60°C) - discharging |
| Storage Temperature | -4 to 140°F (0 to 60°C) |
| Dimensions & Weight | 1.9”” x 3.4” x 1.9” (47mm x 84.8mm x 47mm) / 9.8oz (280g) |
| Ultra III App | |
| Screen Cursors | Single, Harmonic, Moving Harmonic, Sideband, and Time/Frequency for waveform |
| Band Alarms | Yes |
| Peak to Peak Displacement | Yes |
| No Tachometer (4-run) Balancing | Yes |
| Balancing RPM (Range) Low Limit | 120 RPM |
| Diagnostic Features | Velocity, BDU, Displacement, Demod, Coast Down |
| Ultra III Route Transfer | |
| USB-C | Yes |
| Bluetooth | Yes |
| Cloud | Yes |
