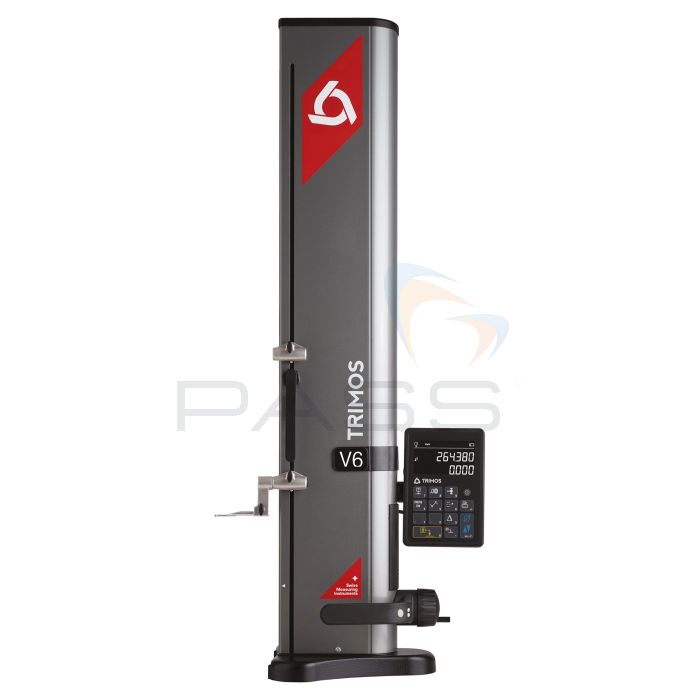

Trimos V6 Manual / Motorised Height Gauge
- Measuring ranges: 400, 700 and 1100mm
- Manual or motor-driven displacement
- RS232 et USB interfaces
The Trimos V6 Manual / Motorised Height Gauges are available in 400mm, 700mm, and 1100mm measuring ranges. The V6 series builds on the trusted legacy of Trimos with a more advanced measuring system and support for electronic perpendicular probes—ideal for high-precision, multi-directional applications.
At the heart of the V6 is its dual-mode displacement system, permitting users to switch between manual and motorised movement using an innovative handwheel. The V6 has an intuitive display interface, supports long and robust probes, and integrates with RS232 and USB systems for data transfer.
Key Features
- Measuring ranges: 400, 700 and 1100mm
- Extremely easy to use
- Electronically adjustable measuring force
- Manual or motor-driven displacement
- Larger than 300mm probes as standard
- Vast range of accessories
- All adjustments possible without tools
- RS232 et USB interfaces
What's Included?
- V6 Gauge
- Measuring insert with ruby ball Ø 4 mm
- Setting Gauge
- Protection cover
- Charging unit
- Calibration certificate
- User's manual
Product Range
- Trimos 20-V6-400 V6 Manual / Motorised Height Gauge, 400mm
- Trimos 20-V6-700 V6 Manual / Motorised Height Gauge, 700mm
- Trimos 20-V6-1100 V6 Manual / Motorised Height Gauge, 1100mm
Call 01642 931 329 or complete the form:
Offers
Worth £29.99. Automatically adds to your basket when the total exceeds £1000+ (ex VAT). Limited Stock. More details here.
| 20-V6-400 | 20-V6-700 | 20-V6-1100 | |
|---|---|---|---|
| Description | Measuring range with extension mm/inch - 719/28.3 | Measuring range with extension mm/inch - 1023/40.3 | Measuring range with extension mm/inch - 1422/56 |
| Range (mm) | 407 | 711 | 1110 |
| Range (inch) | 16.0 | 28.0 | 43.7 |
| Maximum Error (µm) | 2 + L(mm)/400 | 2 + L(mm)/400 | 2 + L(mm)/400 |
| Repeatability (µm) | 1 (Ø: 2) | 1 (Ø: 2) | 1 (Ø: 2) |
| Force | Measuring Force - 0.75 - 1.5 | Measuring force - 0.75 - 1.5 | Measuring force - 0.75 -1.5 |
| Resolution | 0.0001mm/ (0.000005") | 0.0001mm/ (0.000005") | 0.0001mm/ (0.000005") |
| Notes | With Air Cushion | With Air Cushion | With Air Cushion |
