UNI-T UT161E 1000V True RMS Digital Multimeter
Free PASS Football (Spend £250+)
Free Gift
- AC/DC Voltage
- Current Resistance
- Capacitance Tester
- Data hold
- Peak Hold
SKU
UT161E
MPN
UT161E

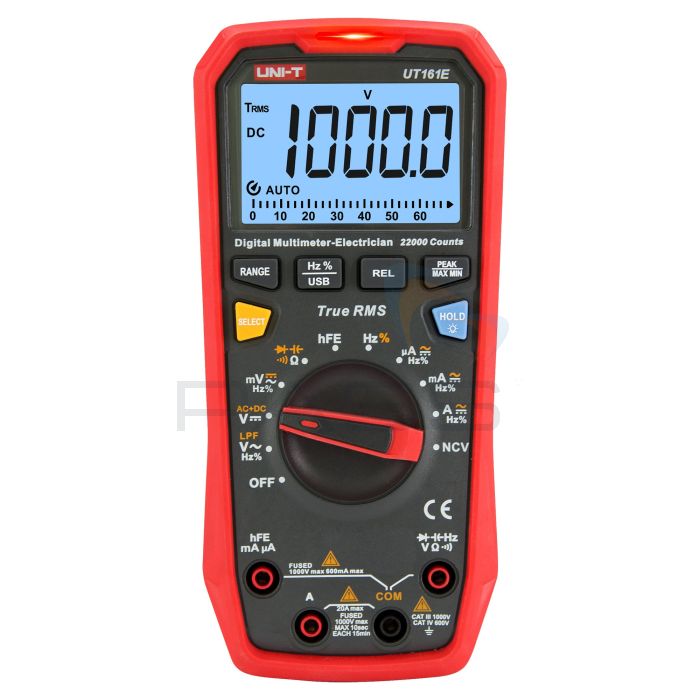

The UNI-T UT161E has a 22,000-count display and measures a wide range of electrical parameters. The multimeter has audible and visible alarms when measuring high voltage, current, or temperature, and is CE certified.
The UT161E features AC/DC voltage and current, diode and continuity testing, resistance, capacitance, and transistor hFE measurement. It also includes data hold, backlight display, max/min/relative modes, USB communication, input protection, peak hold, a low-pass filter (LPF) for ACV or ACV+DCV measurements, and non-contact voltage detection (NCV).
UNI-T UT161/UT61+ Series True RMS Digital Multimeters Overview
Key Features
- True RMS
- AC/DC Voltage
- Current Resistance
- Capacitance Tester
- Data hold
- Backlight
- Max/Min/Relative mode
- USB communication
- Input protection
- Diode/continuity test
- NCV (audible/visual alarm)
- LPF ACV/ACV+DCV
- Transistor hFE
- Peak Hold
What's Included?
- True RMS Digital Multimeter
- Battery
- Gold plated test leads
- USB cable
- Multi-purpose socket
- English manual
£99.00
£118.80 inc vat
In Stock:
Available Next Working Day*
Free PASS Football (Spend £250+)
Find Out More
60 Day Returns
Offers
Free PASS Football (Spend £250+)
Automatically adds to your basket when the total exceeds £250+ (ex VAT). Limited Stock. More details here.
FREE Oxford Carry Case
- PASS Oxford Black Small Test Equipment Carry Case - PASSCASE-SM, typically £14.99
Technical Information
Specification
| AC Voltage, 1000V | ±(0.8% + 10) |
| DC Voltage, 1000V | ±(0.05% + 5) |
| AC Current, 20A | ±(0.8% + 10) |
| DC Current, 20A | ±(0.5% + 10) |
| Resistance, 220MΩ | ±(0.5% + 10) |
| Capacitance, 220mF | ±(3% + 5) |
| Frequency, 220MHz | ±(0.01% + 5) |
| Duty Cycle, 0.1%~99.9% | ±(2% + 5) |
| Temperature (℃/℉) | -40℃~1000℃/-40℉~1832℉ |
| Display Count | 22000 |
| Bandwidth (Hz) | 40~10kHz |
| LPF ACV | √ |
| ACV+DCV | √ |
| Transistor hFE | √ |
| Peak Hold | √ |
| Analogue Bar | 46 |
| Category Ratings | CAT III 1000V, CAT IV 600V |
Document Downloads
UNI-T UT161 Series 1000V True RMS Digital Multimeters Datasheet
UNI-T UT161 Series 1000V True RMS Digital Multimeters User Manual
UNI-T UT161E 1000V True RMS Digital Multimeter Software Requirements
