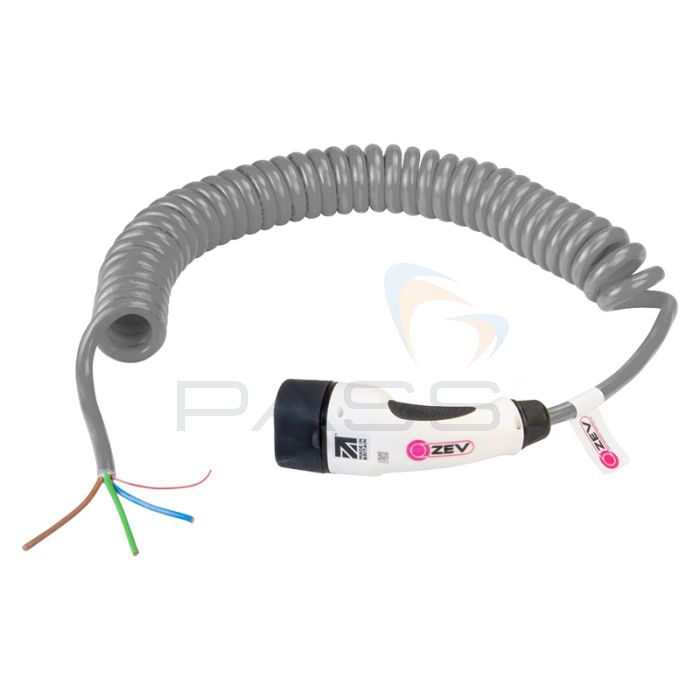

ZEV Tethered-Type2, 32A, Single Phase EV Charging Cable, Coiled, Discreet Grey, 5m or 10m

The ZEV Tethered-Type2, 32A, Single Phase EV Charging Cables are designed to sit above the ground. The cables are coiled, sheathed in dirt-resistant polyurethane, and come in a discreet grey colour. The three power cores are safely insulated to continuously protect current flow. This cable is supplied with 100mm of a stripped sheath for easy connection to the charge point. Suitable for electric vehicles with a Type2 charging inlet for connecting with UK and European Type2 AC charging points. Available in 5m or 10m cable lengths.

This product should be installed by a qualified electrician or by a charge point engineer.

Product Ranges

• TD-T2-32-1P-C-DG-5M Tethered-Type2, 32A, Single Phase, Coiled, Discreet Grey, 5m
• TD-T2-32-1P-C-DG-10M Tethered-Type2, 32A, Single Phase, Coiled, Discreet Grey, 10m

Product Features

• Highly flexible
• Lightweight design
• Dirt and heat resistant
• Compliant with all battery, electric and plug-in, hybrid vehicles
• Tethered cables compliant with electric vehicles with a Type2 inlet
• Complete cables compliant with a home, workplace, and public charge points with Type2 sockets

Product Specification

• Conductor Material: Plain Copper
• Conductor Class: According to BS EN 60228
• Conductor Size mm²: 3 × 6.00mm² & 1 × 0.75mm²
• Number of Cores: 4
• Core Insulation: TPR
• Outer Sheath: Polyurethane EVM-1P
• Sheath Colour: Grey
• Cable Diameter mm: 14.00
• Bend Radius mm: 25.00
• Temperature Range: -40° - +90°
• Rated Voltage & AMPS: 450/750V 32
• AC Charging Rate: Up to 7.2kW
