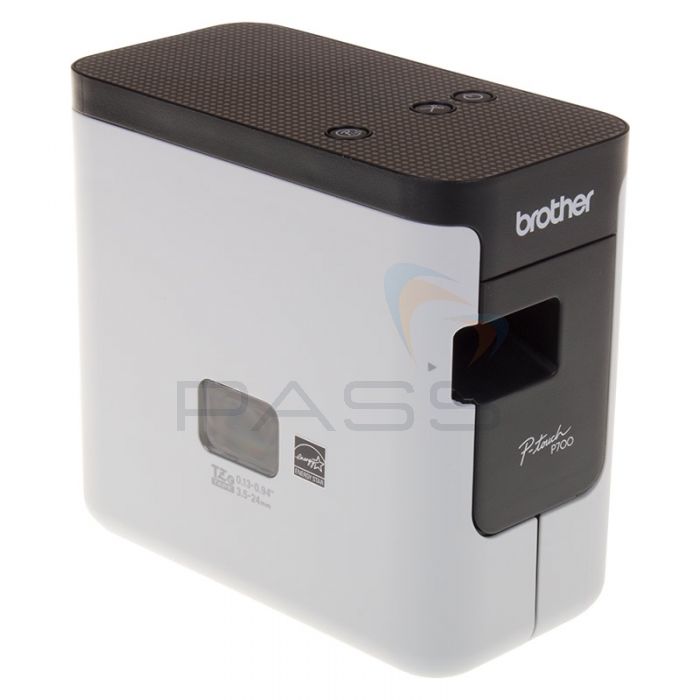

The Brother PT-P700 Professional Label Printer can be used to print labels which may be placed on a variety of appliances such as files, archives, cupboards, and shelves. Electricians may find this printer of particular use as it is able to support barcode printing, in addition to a range of other label formats, allowing him/her to print PAT labels containing relevant test information in a barcode.
The video below offers a quick overview of the applications to which the Brother PT-P700 Professional Label Printer is suited.
This compact printer is connected to the user’s PC, Mac or Megger PAT400 Series Tester via a USB cable. Once connected, the printer is ready to use as it does not require software or printer driver installation. The Brother PT-P700 Professional Office Label Printer itself includes P-touch Editor Software that can be used on Windows and Mac computers.
Via a computer or Megger PAT400 Series PAT Tester, the operator can create labels using existing fonts, images, graphics and frames present on his/her PC/ Mac or tester. It is also possible to download a variety of label templates to a PC/ Mac from the Cloud.
The Brother PT-P700 Professional Label Printer can be used with a variety of labels in a range of colours and sizes (up to a 24mm width) and is able to create labels at a rate of 30mm per second. It also includes an integrated automatic cutter, adding to the speed and ease with which labels can be created.
Finally, this instrument can be powered using an AC adapter, AA alkaline battery, or NiMH battery allowing the user to tailor the Brother PT-P700 Professional Label Printer to his/ her preferences.
The Brother PT-P700 Professional Label Printer is an adaptable, convenient and useful instrument. It is of particular use to electricians wishing to create PAT labels for tested portable appliances.
Brother PT-P700 Professional Label Printer Key Features
- Print labels to be added to a variety of appliances such as files, archives, cupboards, and shelves
- Can support barcode printing
- Of particular use to electricians wishing to create PAT labels with test information contained in a barcode
- Connects to the user’s PC or Mac or Megger PAT400 Series Tester via a USB cable
- Does not require software or printer driver installation
- Includes P-touch Editor Software
- Create labels using the existing fonts, images, graphics and frames on the connected PC/Mac or tester
- It is possible to download a variety of label templates from the Cloud to a PC or Mac
- Can print labels in a range of colours and sizes (up to 24mm in width)
- Create labels at a rate of 30mm per second
- Integrated automatic cutter
- Power using an AC adapter, AA alkaline battery or NiMH battery
- An adaptable, convenient and useful instrument
- Is of particular use to electricians wishing to create PAT labels for tested portable appliances
What’s Included?
- Brother PT-P700 Professional Label Printer
- 24mm Black on White 4m Tape Cassettes
- AC Adapter
- AC Adapter Power Cord
- USB Cable
- Quick Setup Guide
Brother PT-P700 Technical Specifications
| Interface | USB 2.0 (mini-B type connector) |
| Power | AC Adapter (included) AA (LR/HR6)/rechargeable batteries (not included) |
| Print Speed | 30mm/second (using AC adapter) |
| Print Resolution | 180 dpi |
| Maximum Print Height | 18.1mm |
| Cutter Type | Automatic full cutter 25mm - 300mm (P-touch Editor Lite) 25mm - 1000mm (P-touch editor 5.1) |
| Vertical Text Printing | Yes |
| Mirror Printing | Yes |
| Copies/Sequential Numbering | 1-200 (P-touch Editor Lite) 1-5000 (P-touch Editor 5.1) |
| Supplies | |
| Tape | Tze tape casettes |
| Tape Widths | 3.5, 6, 9, 12, 18, 24mm |
| Weight & Dimensions | |
| Size | 78 x 143 x 152mm |
| Weight | 710g |
| Label Creation | |
| Fonts | All installed true type fonts |
| Font Styles | Normal, bold, italic, underline, outline, shadow, shadow light, horizontal, surround, frame out, inverted, strikethrough |
| Font Sizes | Up to maximum print height (approx 72 point) |
| Symbols | All installed symbol truetype fonts |
| Templates | 88 (P-touch Editor 5.1) |
| Image Support | JPG, BMP, TIFF, PNG, GIF, DIB, WMF, EMF, ICO, screen capture function |
| Frames | 10 (P-touch Editor Lite) 153 (P-touch Editor 5.1) |
| Barcode | Code 39, ITF 2/5, EAN13, EAN8, UPC-A, UPC-E |
| Barcodes (P-touch Editor 5.1 only) | CODABAR, GS1-128 (UCC/EAN128), GS1 DATABAR (RSS), GS1 COMPOSITE, ISBN-2, ISBN-5, POSTNET, LASER BARCODE, GS1 DATABAR, PDF417, QR CODE, MICRO QR CODE, DATA MATRIX, MAXICODE, AZTECCODE |
| Database Connection Support | csv, txt, mdb, xls |
| System Requirements | |
| Operating System | Microsoft Windows Vista Microsoft Windows 7 Microsoft Windows 8 MAC OS X 10.6.8/1.7.x/10.8.x |
| Interface | Windows USB Port (USB Spec. 1.1, 2.0 or 3.0 protocol) Mac: USB Port (USB spec, 1.1 ot 2.0 protocol) |
| Memory Requirements | Windows Vista 512MB or more Windows 7: 1GB (32-bit) or 2GB (64-bit) or more Windows 8: 1GB (32-bit) or 2GB (64-bit) or more Mac OS X: 2GB or more |
| Monitor | Windows: SVGA/High colour or more Mac: more than 256 colours |
| Others | CD-ROM/DVD-ROM drive |
| Microsoft Office Support for P-touch add in | Microsoft Word 2003/2007/2010 Microsoft Excel 2003/2007/2010 Microsoft Outlook 2003/2007/2010 |
| SKU | PT-P700 |
|---|---|
| Manufacturer Part Code | PTP700ZU1 |
