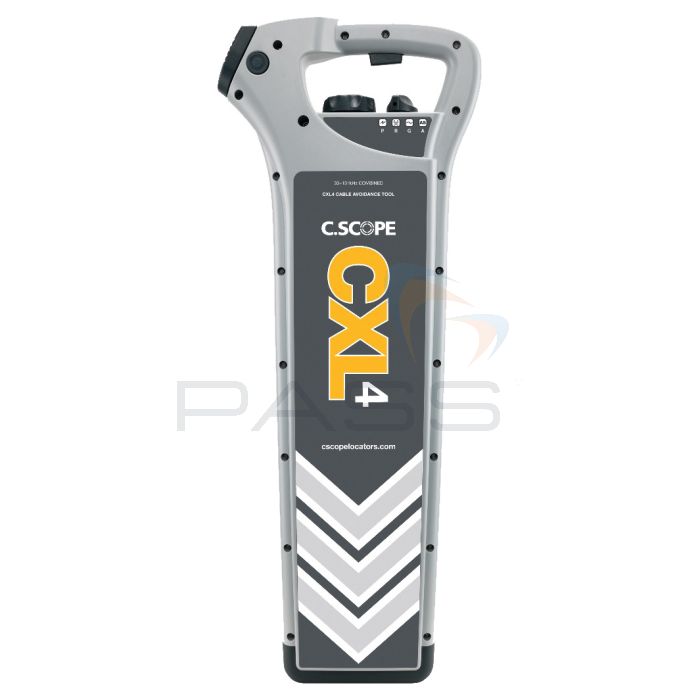

The C. Scope CXL4 Cable Avoidance Tools can be used to detect underground pipes and cables. There are three models available:

  • CXL4CAT: C. Scope CXL4 Cable Avoidance Tool
  • CXL4CAT-D: C. Scope CXL4 Cable Avoidance Tool with Data Logging
  • CXL4CAT-DBG: C. Scope CXL4 Cable Avoidance Tools with Data Logging, GPS and Bluetooth

Datalogging versions of the C. Scope CXL4 Cable Avoidance Tools can record and store up to a year’s worth of data. Additionally, the C. Scope CXL4 Cable Avoidance Tool with integrated GPS will also keep a record of the locations it has been used; these areas can be viewed using Google Earth™ or Google Maps™. Both of the data logging models can transfer data wirelessly via a USB cable to a PC, tablet or smartphone; the Bluetooth-enabled CXL4CAT-DBG model can also transfer data via Bluetooth.

Once downloaded to a PC, tablet or smartphone, C Scope’s free-to-download Toolkit PC Software and Relay Smartphone App can be used to organise and analyse data in charts and graphs. GPS- and Bluetooth-enabled C. Scope CXL4 Cable Avoidance Tools can also be paired with third-party GPS survey equipment enabling ‘one pass’ underground utility surveys to be conducted.

The C. Scope CXL4 Cable Avoidance Tools features a simultaneous dual-frequency (33kHz and 131kHz) output, increasing the number of buried services that can be energised and therefore detected. The C. Scope CXL4 Cable Avoidance Tools are able to detect poorly earthed cables or cables with a small diameter. Additionally, optimised locator sensitivity and noise rejection mean the C. Scope CXL4 Cable Avoidance Tools can detect the weakest of signals amongst high background noise.

The C. Scope CXL4 Cable Avoidance Tools have four detection modes:

  • Power
  • Radio
  • Generator
  • All Scan

In addition to the above modes, the C. Scope CXL4 Cable Avoidance Tools include the following functions:

  • Alarm Zone: can be used to detect the presence of shallow pipes and cables; the limit can be adjusted by the user to suit the local requirements
  • Peak Hold: for quickly and accurately pinpointing the location of buried services
  • Dynamic Swing Sensor: alerts the user when CXL4 CAT Tool is being swung excessively as this can negatively affect its accuracy

The C. Scope CXL4 Cable Avoidance Tools also perform an Automatic Daily Self-Test (ADST) to check the equipment is functioning and operating within its specified accuracies. The ADST is performed upon initial start-up; it checks the functionality of the locator and receiving aerials. The results of these tests are stored in the C. Scope CXL4 Cable Avoidance Tools’ integrated memory and can be downloaded to a PC within the following twelve months. Once downloaded to a PC, these results can be used with the C Scope Toolkit Software to create a Product Validation Certificate. The C Scope Toolkit Software can also be used to view and print a copy of the C Scope CXL4 Cable Avoidance Tool’s original calibration certificate.

The Automatic Daily Self-Test results are also indicated on the C. Scope CXL4 Cable Avoidance Tools’ large, easy-to-read, backlit LCD protected by a polycarbonate lens. The detection mode, signal peak level, depth, signal strength and battery condition are also visible via this display.

Finally, the C. Scope CXL4 Cable Avoidance Tools have a robust, durable, IP65-rated design with a removable speaker for use in noisy environments.

The C. Scope CXL4 Cable Avoidance Tools are ergonomic, accurate and reliable pipe and cable detecting and locating instruments.

C. Scope CXL4 Cable Avoidance Tools Key Features

  • Detect and locate underground pipes and cables
  • Three models available
  • CXL4CAT: C. Scope CXL4 Cable Avoidance Tool
  • CXL4CAT-D: C. Scope CXL4 Cable Avoidance Tool with Data Logging
  • CXL4CAT-DBG: C. Scope CXL4 Cable Avoidance Tools with Data Logging, GPS and Bluetooth
  • Datalogging versions can record and store up to a year’s worth of data
  • Models with integrated GPS will keep a record of the locations the CAT has been used
  • Data can be transferred to a PC, tablet or smartphone via a USB cable
  • Data can also be transferred via Bluetooth (model dependent)
  • Free-to-download PC Tool Kit and Relay Smartphone Apps can be used to organise and analyse data in charts and graphs
  • GPS- and Bluetooth-enabled versions can be paired with GPS survey equipment
  • Simultaneous dual-frequency: 33kHz and 131kHz
  • Energise and detect more buried services
  • Detect poorly earthed cables and/or cables with small diameters
  • Optimised local sensitivity and noise rejection means the weakest signals can be detected amongst high background noise
  • Four detection modes: Power, Radio, Generator and All Scan
  • Alarm Zone function
  • Peak Hold function
  • Dynamic Swing Sensor function
  • Automatic Daily Self-Test (ADST): automatically performed on start-up
  • ADST results are saved to the integrated memory and can be downloaded to a PC within the following twelve months
  • Toolkit Software uses the ADST results to create a Product Validation Certificate
  • Use the Toolkit Software to view and print a copy of the CAT’s original calibration certificate
  • ADST results are visible on the display
  • Large, easy-to-read, backlit LCD protected by a polycarbonate lens
  • The detection mode, signal peak level, depth, signal strength and battery condition are indicated on the display
  • Robust, durable, IP65-rated design with a removable speaker
  • Ergonomic, accurate and reliable pipe and cable detecting instruments

What’s Included?

  • Your Choice of C Scope CXL4 Cable Avoidance Tool
Part Code

C. Scope CXL4 Cable Avoidance Tools Technical Specifications

Controls On/Off Switch: Spring loaded trigger switch under handle
Function Select Switch (FOUR position): P. Power Mode; R. Radio Mode; G. Generator Mode; A. AllScan Mode
Sensitivity Control
Audio Indication Removable and user replaceable loudspeaker module
Visual Indication Multi-segment Liquid Crystal Display indicating: signal strength, mode selected, AlarmZone™, battery condition, self test indicator, GPS signal detected (CXL4CAT-DBG ONLY), Bluetooth™ activated (CXL4CAT-DBG ONLY)
Data Logging Internal capacity for storing over 12 months of data (in normal use) logged once per second. Data logged includes: time/date, mode, sensitivity level, received signal level, frequency, depth, self test result, swing indicator, GPS position (CXL4CAT-DBG ONLY)
Bluetooth™ Bluetooth v2.1 (for Android) and v4.0 (for Apple iOS)
GPS GPS/QZSS/GLONASS/SBAS
Data Connector Standard USB Mini B connector in battery compartment. USB 2.0 Compatible
Self Test Automatic Daily Self Test
Swing Indicator Audio beep to indicate incorrect use of the Locator
Generator Mode Frequencies Simultaneous 131,072Hz and 32,768Hz
Construction Case moulded from high impact plastic. Designed to withstand 1m (3’3”) drop onto a hard surface
Weight (including batteries) 2.65kg (5 lb 13 oz)
Dimensions 720mm x 280mm x 65mm (28.3” x 11” x 2.5”)
Performance Locate Accuracy: better than 10% of depth
Depth Accuracy: ±5% @ 1m (3’3”)
Line Depth Measurement Range: 0.1m to 9.99m (4” to 32’)
Line Depth Resolution: 0.01m (0.4”)
Sonde Depth Measurement Range: 0.1m to 9.99m (4” to 32’) depending on Sonde type
Sonde Depth Resolution: 0.01m (0.4”)
Battery Type Internal 8 x ‘AA’ (LR6) cells (either alkaline non-rechargeable or NiMH rechargeable)
Battery Life 40 hours intermittent use at 20ºC (68ºF) using alkaline cells
IP Rating 65
Network Rail Approved Yes
Notes Performance figures stated can be affected by site parameters such as ground conditions, temperature, and strong electromagnetic fields. Specification may be subject to change. All C.Scope Locators are in compliance with the essential requirements and other relevant provisions of Council Directive 2014/30/EU (EMC). Compliance has been demonstrated by testing representative samples to the relevant harmonised standards. All C.Scope Locators comply with the essential requirements and other provisions of Council Directive 2011/65/EU (RoHS).

C. Scope CXL4 Cable Avoidance Tools Performance Specifications

Performance Frequency Sensitivity @ 1m Depth Detection Depth (max)
Power 50-400Hz 5mA 3m
Radio 10kHz-30kHz 25µA 2m
Generator 33+131kHz 5µA 5m
AllScan 50Hz-33kHz 100µA 3m
Sonde 33kHz - 7m
Rodding Oscillator 33kHz - 4.5m
Traceable Rodder – Line 33kHz - 3m
Traceable Rodder – Tip/ Sonde 33kHz - 4m

C. Scope CXL4 Cable Avoidance Tools Comparison Chart

Locator Features CXL4CAT CXL4CAT-D CXL4CAT-DBG
Power Mode X X X
Radio Mode X X X
Generator / Transmitter Mode X X X
– 33+131kHz X X X
– 131kHz - - -
 – 33kHz - - -
 – 8Hz - - -

– 512Hz

- - -
 – 640Hz - - -
AllScan Mode X X X
Accurate Depth Indication - - -
Signal Current Measurement - - -
Overload Protection X X X
AlarmZone™ X X X
Peak Hold X X X
Dynamic Swing Sensor X X X
Automatic Daily Self Test X X X
Product Validation Certificate X X X
Data Logging - X X
Data Logging Rate – once per second - X X
2GB Memory - X X
Data Transfer via USB - X X
Data Transfer via Bluetooth™ - - X
External Survey Level GPS via Bluetooth™ - - X
In-Built GPS position logging - - X
High-Resolution Backlit Liquid Crystal Display X X X
No Periodic Calibration* X X X
Three Year Warranty** X X X
Batteries*** 8 x AA (LR6) Alkaline or NiMH Rechargeable X X X
IP65 X X X

C. Scope CXL4CAT-DBG Cable Avoidance Tools GPS & Bluetooth Specifications

GPS
Acquisition Time – Cold Start 30s
Acquisition Time – Hot Start 1s
No. of Channels 56
Supported Systems GPS, SBAS, QZSS, Galileo, GLONASS
Bluetooth™
Version v2.1 (for Android) and v4.0 (for Apple iOS)
Supported Systems PC, Android and Apple iOS
Range 30m
Transfer Rate 350kbps

Files & Downloads:
