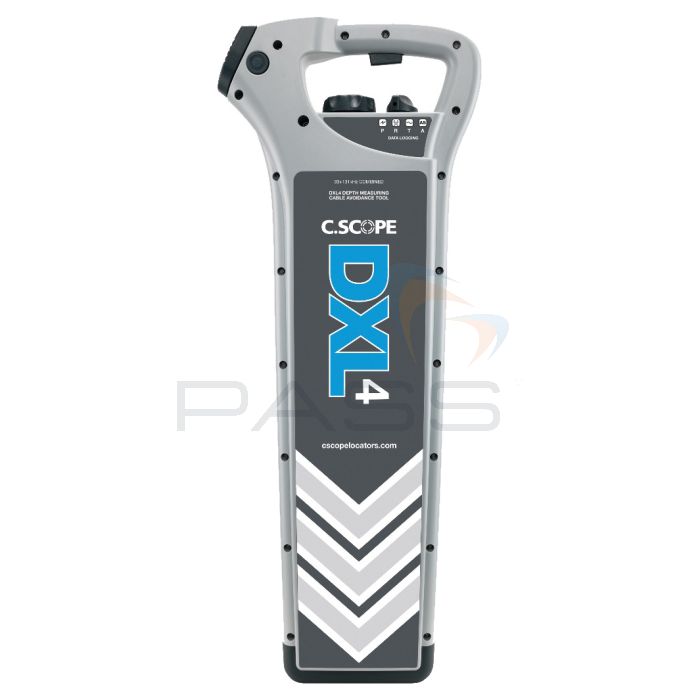

The C. Scope DXL4 Data Logging Cable Avoidance Tools are advanced cable and pipe detecting tools with depth measurement and a simultaneous dual-frequency (33kHz and 131kHz) output designed to energise and therefore detect a maximum number of buried services. Improved energisation and detection mean the C. Scope DXL4 Data Logging Cable Avoidance Tools are able to locate cables that are poorly earthed and/or have a smaller diameter.

Both of these models can log and store up to a year’s worth of data; the C. Scope DXL4 Data Logging Cable Avoidance Tools are available in two models:

  • DXL4CAT-D: C. Scope DXL4 Data Logging Cable Avoidance Tool
  • DXL4CAT-DBG: C. Scope DXL4 Data Logging Cable Avoidance Tool with GPS and Bluetooth

Models with GPS compatibility are also able to log the locations the C. Scope DXL4 Data Logging Cable Avoidance Tool has been used in; these can be viewed using Google Earth™ or Google Maps™. It is able to store up to twelve months of GPS data which can be communicated wirelessly, along with the cable location data, to a PC, tablet or smartphone via Bluetooth. Alternatively, data can be downloaded from both of these models to a PC via a USB cable.

Once data has been transferred to a PC, tablet or smartphone, it can be stored and analysed using the free-to-download C. Scope Toolkit PC Software or Relay Smartphone App. Data transferred from the C. Scope DXL4 Data Logging Cable Avoidance Tools may be organised into charts or graphs using the aforementioned software or app.

Bluetooth-enabled versions of the C. Scope DXL4 Data Logging Cable Avoidance Tools can also be paired with third-party GPS equipment allowing ‘one pass’ underground utility surveys to be conducted.

The C. Scope DXL4 Data Logging Cable Avoidance Tools include optimised locator sensitivity and noise rejection allowing the weakest of signals to be detected even amongst loud background noise. The C. Scope DXL4 Data Logging Cable Avoidance Tools feature four detection modes:

  • Power
  • Radio
  • Generator
  • AllScan

As mentioned above it also includes a Depth Measurement function; it will indicate the depth of buried pipes, cables and sondes. The Depth Measurement function can be engaged at the push of a button; the C. Scope DXL4 Data Logging Cable Avoidance Tools must be used alongside a C. Scope SGA4 or SGV4 Signal Generator in order to determine depth measurements.

In addition to this, the C. Scope DXL4 Data Logging Cable Avoidance Tools include the following functions:

  • AlarmZone™: alerts the user to the presence of shallow pipes or cables; the user can adjust the trigger depth to suit the local requirements
  • Peak Hold: quickly and confidently pinpoint the exact location of buried services
  • Dynamic Swing Sensor: alerts the user if DXL4 CAT is being swung excessively as this can compromise its accuracy

The detection mode, signal peak level, depth and signal strength are all indicated on the C. Scope DXL4 Data Logging Cable Avoidance Tools’ large, clear, easy-to-read LCD protected by a polycarbonate lens. Via these displays, the user can also view the battery condition and Automatic Daily Self-Test results.

An Automatic Daily Self-Test (ADST) is conducted each day upon startup. It checks that the C. Scope DXL4 Data Logging Cable Avoidance Tools, including their receiving aerials, are functioning and working within their specified accuracies. ADST results are also saved to the C. Scope DXL4 Data Logging Cable Avoidance Tools’ internal memories and can be downloaded to a PC within the following twelve months.

Once downloaded to a PC, the C. Scope Toolkit Software can be used to produce a Product Verification Certificate using the ADST results. Using the C. Scope Toolkit Software the operator can also view and print a copy of the C. Scope DXL4 Data Logging Cable Avoidance Tool’s original factory calibration certificate.

Finally, the C. Scope DXL4 Data Logging Cable Avoidance Tools feature a robust and durable twin-wall construction with a detachable speaker. They have an IP65 rating ensuring they are protected against dust and water ingress.

The C. Scope DXL4 Data Logging Cable Avoidance Tools are advanced yet easy-to-use cable and pipe locators with depth measurement and data logging.

C. Scope DXL4 Data Logging Cable Avoidance Tools Key Features

  • Advanced cable and pipe detecting tools with depth measurement
  • Simultaneous dual-frequency output: 33kHz and 131kHz
  • Maximum energisation and detection of buried services
  • Locate cables that are poorly earthed and/or have a smaller diameter
  • Can log data for up to a year
  • Available in two models
  • DXL4CAT-D: C. Scope DXL4 Data Logging Cable Avoidance Tool
  • DXL4CAT-DBG: C. Scope DXL4 Data Logging Cable Avoidance Tool with GPS and Bluetooth
  • GPS models log the locations in which the CAT has been used
  • GPS locations are visible using Google Earth™ or Google Maps™
  • Store up to twelve months of GPS data
  • Bluetooth-enabled models can send data wirelessly to a PC, tablet or smartphone
  • Data can be transferred to a PC via a USB cable
  • Store and analyse data using C.Scope's free-to-download Toolkit PC Software or Relay Smartphone App
  • Bluetooth-enabled models can be used with third-party GPS equipment for conducting ‘one pass’ utility surveys
  • Optimised locator sensitivity and noise rejection for detecting the weakest signals amongst loud background noise
  • Four detection modes: Power, Radio, Generator and AllScan
  • Depth Measurement function: determines the depth of pipes, cables and sondes
  • Must be used alongside a C. Scope SGA4 or SGV4 Signal Generator when measuring pipe and cable depths
  • AlarmZone™ function
  • Peak Hold function
  • Dynamic Swing Sensor function
  • The detection mode, signal peak level, depth, signal strength, battery condition and ADST results are indicated on the display
  • Large, clear, easy-to-read LCD with protective polycarbonate lens
  • Automatic Daily Self-Test (ADST) is conducted every day upon startup
  • ADST results are saved to the internal memory for download within the following twelve months
  • The C. Scope Toolkit Software can be used to produce a Product Verification Certificate using the ADST results
  • Use the C. Scope Toolkit Software to view and access the original factory calibration certificate
  • Robust and durable twin-wall construction
  • IP65
  • Advanced yet easy-to-use cable and pipe locators with depth measurement and data logging capabilities

What’s Included?

  • Your Choice of C. Scope DXL4 Data Logging Cable Avoidance Tool
Part Code

C. Scope DXL4 Data Logging Cable Avoidance Tools Technical Specifications

Controls On/Off Switch: Spring loaded trigger switch under handle
Function Select Switch (FOUR position): P. Power Mode; R. Radio Mode; G. Generator Mode; A. AllScan Mode
Sensitivity Control
Depth Button. Push button for live display of depth
Audio Indication Removable and user replaceable loudspeaker module
Visual Indication Multi-segment Liquid Crystal Display indicating: signal strength, mode selected, AlarmZone™, battery condition, self test indicator, GPS signal detected (DXL4CAT-DBG ONLY), Bluetooth™ activated (DXL4CAT-DBG ONLY) and depth measurement (in Generator Mode)
Data Logging Internal capacity for storing over 12 months of data (in normal use) logged once per second. Data logged includes: time/date, mode, sensitivity level, received signal level, frequency, depth, self test result, swing indicator, GPS position (DXL4CAT-DBG ONLY)
Bluetooth™ Bluetooth v2.1 (for Android) and v4.0 (for Apple iOS)
GPS GPS/QZSS/GLONASS/SBAS
Data Connector Standard USB Mini B connector in battery compartment. USB 2.0 Compatible
Self Test Automatic Daily Self Test
Swing Indicator Audio beep to indicate incorrect use of the Locator
Generator Mode Frequencies Simultaneous 131,072Hz and 32,768Hz
Construction Case moulded from high impact plastic. Designed to withstand 1m (3’3”) drop onto a hard surface
Weight (including batteries) 2.65kg (5 lb 13 oz)
Dimensions 720mm x 280mm x 65mm (28.3” x 11” x 2.5”)
Performance Locate Accuracy: better than 10% of depth
Depth Accuracy: ±5% @ 1m (3’3”)
Line Depth Measurement Range: 0.1m to 9.99m (4” to 32’)
Line Depth Resolution: 0.01m (0.4”)
Sonde Depth Measurement Range: 0.1m to 9.99m (4” to 32’) depending on Sonde type
Sonde Depth Resolution: 0.01m (0.4”)
Battery Type Internal 8 x ‘AA’ (LR6) cells (either alkaline non-rechargeable or NiMH rechargeable)
Battery Life 40 hours intermittent use at 20ºC (68ºF) using alkaline cells
IP Rating 65
Network Rail Approved Yes
Notes Performance figures stated can be affected by site parameters such as ground conditions, temperature, and strong electromagnetic fields. Specification may be subject to change. All C.Scope Locators are in compliance with the essential requirements and other relevant provisions of Council Directive 2014/30/EU (EMC). Compliance has been demonstrated by testing representative samples to the relevant harmonised standards. All C.Scope Locators comply with the essential requirements and other provisions of Council Directive 2011/65/EU (RoHS).
Depth Measurement Range
Line 0.2m – 3.0m
Sonde 0.25m – 9.9m
Depth Accuracy +/- 5% of depth
GPS
Acquisition Time – Cold Start 30s
Acquisition Time – Hot Start 1s
No. of Channels 56
Accuracy 2m
Supported Systems GPS, SBAS, QZSS, Galileo, GLONASS
Bluetooth™
Version v2.1 (for Android) and v4.0 (for Apple iOS)
Supported Systems PC, Android and Apple iOS
Range 30m
Transfer Rate 350kbps

C. Scope DXL4 Data Logging Cable Avoidance Tools Performance Specifications

Performance Frequency Sensitivity
@ 1m depth
Detection Depth
(max)
Power 50-400Hz 5mA 3m
Radio 10kHz-30kHz 25µA 2m
Generator 33+131kHz 5µA 5m
AllScan 50Hz-33kHz 100µA 3m
Sonde 33kHz - 7m
Rodding Oscillator 33kHz - 4.5m
Traceable Rodder – Line 33kHz - 3m
Traceable Rodder – Tip / Sonde 33kHz - 4m

C. Scope DXL4 Data Logging Cable Avoidance Tools Comparison Chart

Features DXL4CAT-D DXL4CAT-DBG
Power Mode X X
Radio Mode X X
Generator / Transmitter Mode X X
– 33+131kHz X X
– 131kHz - -
– 33kHz - -
– 8kHz - -
– 512Hz - -
 – 640Hz - -
AllScan Mode X X
Accurate Depth Indication X X
Signal Current Measurement - -
Overload Protection X X
AlarmZone™ X X
Peak Hold X X
Dynamic Swing Sensor X X
Automatic Daily Self Test X X
Product Validation Certificate X X
Data Logging X X
Data Logging Rate – once per second X X
2GB Memory X X
Data Transfer via USB X X
Data Transfer via Bluetooth™ - X
External Survey Level GPS via Bluetooth™ - X
In-Built GPS position logging - X
High Resolution Backlit Liquid Crystal Display X X
No Periodic Calibration* X X
Three Year Warranty** X X
Batteries*** 8 x AA (LR6) Alkaline or NiMH Rechargeable X X
IP65 X X
