The C. Scope MXL4 Data Logging Precision Cable Locators are high-performing, high-precision and high-flexibility pipe and cable detection tools with data logging and depth measurement. These CATs can detect, pinpoint, trace and identify a wide range of pipes and cables as they are able to receive a range of frequencies from 512/640Hz up to 131kHz including a dual-frequency of 33kHz and 131kHz. This means that a greater number of pipes and cables can be energised and therefore detected including poorly earthed cables and pipes/ cables with smaller diameters.

Additionally, the C. Scope MXL4 Data Logging Precision Cable Locator’s optimised locator sensitivity and noise rejection ensure that it can detect the weakest of signals amongst loud background noise. There are two C. Scope MXL4 Data Logging Precision Cable Locator models available:

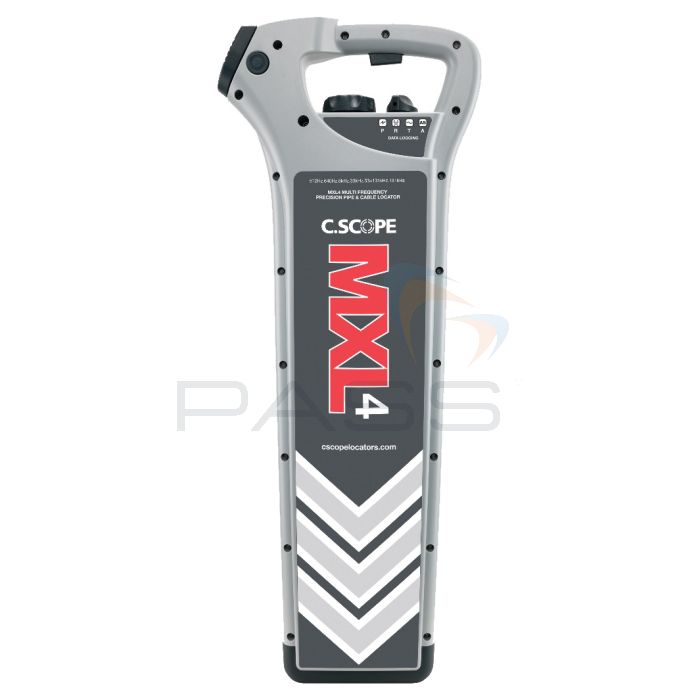

  • MXL4-D: C. Scope MXL4 Data Logging Precision Cable Locator
  • MXL4-DBG: C. Scope MXL4 Data Logging Precision Cable Locator with GPS and Bluetooth

Both of these models are capable of logging data for up to a year which can be downloaded to a PC via a USB cable. The Bluetooth-enabled C. Scope MXL4 Data Logging Precision Cable Locator can also transfer data to a PC, tablet or smartphone wirelessly. Once downloaded, C. Scope’s free-to-download ToolKit PC Software and Relay Smartphone App can be used to organise and analyse data in charts and graphs.

In addition to this, C. Scope MXL4 Data Logging Precision Cable Locators with Bluetooth can be used with third-party GPS equipment enabling ‘one pass’ underground utility surveys to be conducted.

Furthermore, models with integrated GPS will log where the C. Scope MXL4 Data Logging Precision Cable Locator has been used; GPS data can be logged for up to a year and is viewable using either Google Earth™ or Google Maps™. This data can also be transferred to a PC, tablet or smartphone via USB or Bluetooth for use with C. Scope’s free-to-download Toolkit Software and Relay Smartphone App.

The C. Scope MXL4 Data Logging Precision Cable Locators are also capable of determining depth measurements for buried pipes, cables and sondes when used with a C. Scope MXT4 Transmitter. Additionally, the C. Scope MXL4 Data Logging Precision Cable Locators can monitor the true strength of the C. Scope MXT4 Transmitter’s signal despite the depth of the buried service, enabling the user to identify the layout of pipe and cable networks.

The C. Scope MXL4 Data Logging Precision Cable Locators also include the following functions:

  • AlarmZone™: alerts the user to the presence of shallow pipes and cables; the trigger depth can be adjusted by the user to suit local requirements
  • Peak Hold: enables exact and efficient pinpointing of buried services
  • Dynamic Swing Sensor: excessive swinging can have a negative effect on the locator’s accuracy; this function alerts the user when the CAT is being swung too much

Moreover, to ensure the C. Scope MXL4 Data Logging Precision Cable Locators are functioning within their specified accuracies, they include an Automatic Daily Self-Test (ADST) which is performed every day upon startup. The results of this test are displayed on the C. Scope MXL4 Data Logging Precision Cable Locator and saved to its internal memory. Results can be downloaded to a PC any time within the next twelve months and can be used with C. Scope’s Toolkit Software to create a Product Validation Certificate. The C. Scope Toolkit Software can also be used to view and print the original Calibration Certificate.

In addition to displaying the ADST results, the C. Scope MXL4 Data Logging Precision Cable Locators will indicate the detection mode, signal peak level, depth, signal strength and battery condition via their large, clear, easy-to-read LCD with protective polycarbonate lens.

The C. Scope MXL4 Data Logging Precision Cable Locators feature a durable and robust twin wall construction with a detachable speaker for use in noisy environments. They have an IP65 rating providing protection against dust and water ingress.

The C. Scope MXL4 Data Logging Precision Cable Locators are versatile, precise and easy-to-use cable and pipe detection tools with data logging and depth measurement capabilities.

C. Scope MXL4 Data Logging Precision Cable Locators Key Features

  • High-performing, high-precision and high-flexibility pipe and cable detection tools with data logging and depth measurement
  • Detect, pinpoint, trace and identify a wide range of pipes and cables
  • Can receive a range of frequencies between 512/640Hz and dual-frequency outputs of 33kHz and 131kHz
  • A greater number of pipes and cables can be energised and detected such as poorly earthed cables and pipes/cables with smaller diameters
  • Optimised locator sensitivity and noise rejection ensures the weakest signals can be detected amongst loud background noise
  • Two models available
  • MXL4-D: C. Scope MXL4 Data Logging Precision Cable Locator
  • MXL4-DBG: C. Scope MXL4 Data Logging Precision Cable Locator with GPS and Bluetooth
  • Log data for up to a year
  • Download data to a PC via a USB cable
  • Bluetooth-enabled models can transfer data wirelessly to a PC, tablet or smartphone
  • C. Scope’s free-to-download Toolkit PC Software and Relay Smartphone App can be used to organise and analyse data in charts and graphs
  • Bluetooth enabled models can also be used with GPS equipment enabling ‘one pass’ underground utility surveys to be conducted
  • Models with integrated GPS will log the locations the CAT has been used
  • Logs up to a year of GPS data
  • View GPS data using Google Earth™ or Google Maps™
  • GPS data can also be transferred to a PC, tablet or smartphone via Bluetooth or to a PC via a USB cable
  • Determine depth measurements for buried pipes, cables and sondes
  • MUST be used with a C. Scope MXT4 Transmitter to determine depth measurements
  • Can monitor the true strength of the MXT4’s signal allowing the user to determine the layout of pipe and cable networks
  • AlarmZone™ function
  • Peak Hold function
  • Dynamic Swing Sensor function
  • Automatic Daily Self-Test (ADST)
  • ADST results are saved to the locator and shown on its display
  • ADST commences every day upon start-up
  • ADST results can be downloaded within the following twelve months
  • ADST results can be used with C. Scope’s Toolkit Software to create a Product Validation Certificate
  • C. Scope Toolkit Software can be used to view and print the original calibration certificate
  • ADST results, detection mode, signal peak level, depth, signal strength and battery condition are all indicated on the display
  • Large, clear, easy-to-read display with protective polycarbonate lens
  • Durable and robust twin wall construction with a detachable speaker
  • IP65: protected against dust and water ingress
  • Versatile, precise and easy-to-use cable and pipe detection tools with data logging and depth measurement

What’s Included?

  • Your Choice of C. Scope MXL4 Data Logging Precision Cable Locator
Part Code

C. Scope MXL4 Data Logging Precision Cable Locators Technical Specifications

Controls  On/Off Switch: Spring loaded trigger switch under handle
Function Select Switch (FOUR position): P. Power Mode; R. Radio Mode; T. Transmitter Mode; A. AllScan Mode
Sensitivity Control
Depth Measurement Button. Push button for live display of depth
Current Measurement Button. Pushbutton for live display of Transmitter current
Frequency Select Button. Pushbutton for Transmitter Mode frequency selection
Audio Indication Removable and user-replaceable loudspeaker module
Visual Indication Multi-segment Liquid Crystal Display indicating: signal strength, mode selected, AlarmZone™, battery condition, self test indicator
In Transmitter Mode, Frequency selected; Depth Measurement; Signal Current Measurement
GPS signal detected and Bluetooth activated (MXL4-DBG ONLY)
Data Logging  Internal capacity for storing over 12months of data (in normal use) logged once per second. Data logged includes: time/ date, mode sensitivity level, received signal level, frequency depth, signal current measurement, self-test result, swing indicator, GPS position (MXL4-DBG ONLY)
Bluetooth™ Bluetooth v2.1 (for Android) and v4.0 (for Apple iOS)
GPS GPS/QZSS/GLONASS/SBAS
Data Connector Standard USB Mini B connector in battery compartment. USB 2.0 Compatible
Self Test Automatic Daily Self Test
Swing Indicator Audio beep to indicate incorrect use of the Locator
Transmitter Mode Frequencies Simultaneous 131,072Hz and 32,768Hz; 131,072Hz, 32,768Hz; 8,192Hz; 640 and 512Hz
Construction Case moulded from high impact plastic. Designed to withstand 1m (3’3”) drop onto a hard surface
Weight (including batteries) 2.65kg (5lb 13oz)
Dimensions 720mm x 280mm x 65mm (28.3” x 11” x 2.5”)
Performance Locate Accuracy: better than 10% of depth
Depth Accuracy: ±5% @ 1m (3’3”)
Line Depth Measurement Range: 0.1m to 9.99m (4” to 32’)
Line Depth Resolution: 0.1m (0.4”)
Sonde Depth Measurement Range: 0.1m to 9.99m (4” to 32’) depending on Sonde type
Sonde Depth Resolution: 0.1m (0.4”)
Current Measurement: 0.01mA to 100mA
Battery Type Internal 8 x ‘AA’ (LR6) cells (either alkaline non-rechargeable or NiMH rechargeable)
Battery Life 40 hours intermittent use at 20ºC (68ºF) using alkaline cells
IP Rating 65
Network Rail Approved Yes
Notes Performance figures stated can be affected by site parameters such as ground conditions, temperature, and strong electromagnetic fields. Specification may be subject to change. All C.Scope Locators are in compliance with the essential requirements and other relevant provisions of Council Directive 2014/30/EU (EMC). Compliance has been demonstrated by testing representative samples to the relevant harmonised standards. All C.Scope Locators comply with the essential requirements and other provisions of Council Directive 2011/65/EU (RoHS).
Depth Measurement Range
Line 0.2m – 3.0m
Sonde 0.25m – 9.9m
Depth Accuracy +/- 5% of depth
GPS
Acquisition Time – Cold Start 30s
Acquisition Time – Hot Start 1s
No. of Channels 56
Accuracy 2m
Supported Systems GPS, SBAS, QZSS, Galileo, GLONASS
Bluetooth™
Version v2.1 (for Android) and v4.0 (for Apple iOS)
Supported Systems PC, Android and Apple iOS
Range 30m
Transfer Rate 350kbps

C. Scope MXL4 Data Logging Precision Cable Locators Performance Specifications

Performance Frequency Sensitivity
@ 1m depth
Detection Depth
(max)
Power 50-400Hz 5mA 3m
Radio 10kHz-30kHz 25µA 2m
Transmitter
–  33+131kHz 33+131kHz 5µA 5m
– 131kHz 131kHz 5µA 5m
– 33kHz 33kHz 5µA 5m
 – 8kHz 8kHz 100µA 5m
– 512Hz 512Hz 100µA 5m
– 640Hz 640Hz 100µA 5m
AllScan 50Hz-33kHz 100µA 3m
Sonde
 – 33Hz 33Hz - 7m
– 8Hz 8Hz - 7m
– 512Hz 512Hz - 5m
– 640Hz 640Hz - 5m
Rodding Oscillator 33kHz - 4.5m
Traceable Rodder – Line 33kHz - 3m
Traceable Rodder – Tip / Sonde 33kHz - 4m

C. Scope MXL4 Data Logging Precision Cable Locators Comparison Chart

Features  MXL4-D MXL4-DBG
Power Mode X X
Radio Mode X X
Generator / Transmitter Mode X X
 – 33+131kHz X X
 – 131kHz X X
– 33kHz X X
 – 8kHz X X
– 512Hz X X
 – 640Hz X X
AllScan Mode X X
Accurate Depth Indication X X
Signal Current Measurement X X
Overload Protection X X
AlarmZone™ X X
Peak Hold X X
Dynamic Swing Sensor X X
Automatic Daily Self Test X X
Product Validation Certificate X X
Data Logging X X
Data Logging Rate – once per second X X
2GB Memory X X
Data Transfer via USB X X
Data Transfer via Bluetooth™ - X
In-Built GPS position logging - X
High-Resolution Backlit Liquid Crystal Display X X
No Periodic Calibration* X X
Three Year Warranty** X X
Batteries*** 8 x AA (LR6 Alkaline or NiMH Rechargeable) X X
IP65 X X
Notes No Periodic Calibration. The MXL4 Locators do not require periodic recalibration. A Product Validation Certificate can be printed using the PC Toolkit. C.Scope authorised Service Centres are also able to provide third-party Test and Calibration Certification should you require it to comply with client or internal regulations.
** Three Year warranty. Conditions apply.
*** Batteries. The MXL4 Locators use 8 x AA LR6 Alkaline or NiMH Rechargeable batteries sealed in a secure, fitted battery compartment. The battery pack will typically provide approximately 40 hours of service depending on use. The battery compartment also houses a spare battery holder.
