Chauvin Arnoux CA6474 Pylon Tester/ Tower Test Kit

The Chauvin Arnoux CA6474 Pylon Tester/ Tower Test Kit is a combined earth and resistivity tester. It can be used with Chauvin Arnoux’s CA6472 Earth Tester to measure pylon earth and conduct reliable, accurate, and quick comprehensive earth testing. The Chauvin Arnoux CA6474 Pylon Tester/ Tower Test Kit includes the following:

• Chauvin Arnoux CA6474 Tower Tester
• Chauvin Arnoux CA6471 Earth & Resistivity Tester (0.01-99.9kΩ)
• Chauvin Arnoux Earth and Resistivity Kit 100m

The Chauvin Arnoux CA6474 Pylon Tester/ Tower Test Kit enables measurement and analysis of pylon earthing, as well as the frequency behaviour of earthing systems (41Hz to 5kHz). Results can be recorded. Furthermore, the Chauvin Arnoux CA6474 Pylon Tester/ Tower Test Kit delivers a wide measurement range for optimum resolution and rejects interference voltages up to 60Vpeak. Additionally, it offers the following measurement capabilities and functions:

• Global earth of pylons
• Earth resistance of each of the pylon’s footings
• Assess the quality of overhead protective earth cable connections
• Active measurement
• Passive measurement
• All types of earth resistance measurement
• Resistivity (Wenner and Schlumberger methods)
• Earth coupling
• Ground potential measurement
• Continuity/ resistance

The Chauvin Arnoux CA6474 Pylon Tester/ Tower Test Kit is a comprehensive, combined earth and resistivity tester ideal for measuring pylon earth and comprehensive earth testing.

Chauvin Arnoux CA6474 Pylon Tester/ Tower Test Kit Key Features

• A combined earth and resistivity tester
• Measure pylon earth
• Conduct reliable, accurate, and quick comprehensive earth testing
• Enables measurement and analysis of pylon earthing
• Analyse the frequency behaviour of earthing systems (41Hz to 5kHz)
• Record results
• Wide measurement range for optimum resolution
• Rejects interference voltages up to 60Vpeak
• Global earth of pylons
• Earth resistance of each of the pylon’s footings
• Assess the quality of overhead protective earth cable connections
• Active measurement
• Passive measurement
• All types of earth resistance measurement
• Resistivity (Wenner and Schlumberger methods)
• Earth coupling
• Ground potential measurement
• Continuity/ resistance
• A comprehensive, combined earth and resistivity tester for measuring pylon earth and comprehensive earth testing

What’s Included?

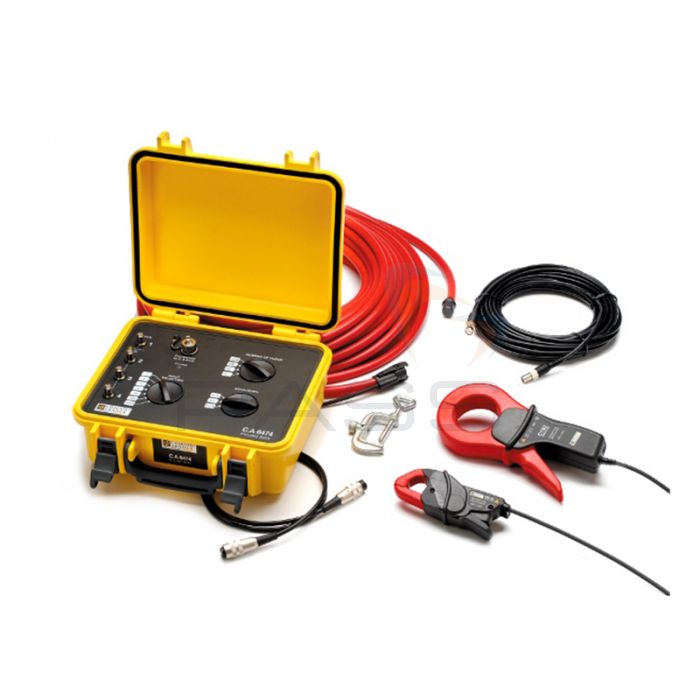

• Chauvin Arnoux CA6474 Tower Tester with 4x 5m AmpFlex and Accessories (P01126510)
• Chauvin Arnoux CA6471 Earth & Resistivity Tester (0.01-99.9kΩ) with 2x C182 Clamps, Charger, and Software (P01126504)
• Chauvin Arnoux Earth and Resistivity Kit 100m (P01102024)
  • Chauvin Arnoux 3P Earth Kit 100m
    • 100m Coils (Red and Blue), 10m Green Coil, 2x Earth Rods, 1x Hammer, 5x Terminals, 1x Case
    • 100m Green Coil, 30m Black Coil, 2x Rods, and Prestige Case
