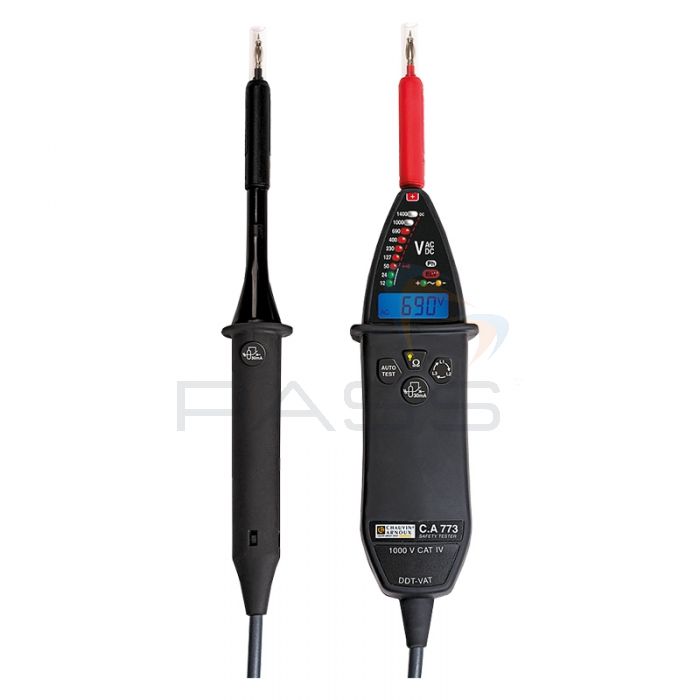

Chauvin Arnoux CA773 Voltage Absence Tester

Chauvin Arnoux CA773 Voltage Absence Tester
sku: P01191773
MPN: P01191773

Free UK Delivery On Orders Over £40
  • Ascertain the presence of AC /DC voltages in CAT IV 1000V electrical installations
  • Digital, backlit display indicates voltage and resistance values
  • Integrated torch and removable test probes

Was: £150.00
You Save: £15.70
£134.30 Incl. VAT £161.16
Members earn 268 points

Do you have a question or found it cheaper? Contact us

Description

Chauvin Arnoux CA773 Voltage Absence Tester Details

The Chauvin Arnoux CA773 Voltage Absence Tester can be used to check CAT IV 1000V electrical installations for the presence of voltage. It is able to detect AC voltages from 12V to 1000V and DC voltages between 12V and 1400V.

The voltages detected using this instrument are shown via the backlit digital display and are indicated by LEDs. In addition to displaying voltages, the Chauvin Arnoux CA773 Voltage Absence Tester will also display the resistance values detected when conducting extended continuity tests. This instrument is also capable of conducting quick, audible and visual continuity tests at 100Ω.

Other tests and detection features available on this model are:

  • Stray voltage detection
  • Unipolar phase detection
  • Two-pole phase sequence testing up to 400Hz using the 2-wire method with a microprocessor
  • RCD trip test using a double control system

The Chauvin Arnoux CA773 Voltage Absence Tester is also fitted with an integrated autotest function which runs a sequence of tests investigating the condition of electrical circuits, power supplies, displays and the condition of measurement leads. As well as this, the CA773 includes an integrated redundant safety system, this system will cause the ELV LED to flash if it detects a power supply fault, or if the voltage measurement is hazardous, i.e. in excess of 50V AC or 120V DC. The higher the voltage detected the faster the ELV LED will flash.

Adding to the safety of this instrument is its double insulated test probes which protect both the tester and user against electric shocks. These test probes can be removed from the instrument and/or attached in a choice of two positions on the tester (16mm or 19mm spacing), allowing the user to tailor the Chauvin Arnoux CA773 Voltage Absence Tester to his/her needs.

This instrument can be easily adapted to suit particular situations, for instance, it includes an integrated torch, ensuring that it remains functional in dark environments; whilst its IP65 casing protects the tester from water and dust ingress, allowing it to be used in rugged, challenging environments. The Chauvin Arnoux CA773 Voltage Absence Tester is a type-N extended climatic class instrument which means that it will remain operable at temperatures as low as -15°C and as high as +40°C.

Furthermore, the Chauvin Arnoux CA773 Voltage Absence Tester can be adapted to perform additional checks. It may be used with the Chauvin Arnoux CA753 Adapter to test European and Schuko 2P+E power sockets.

The Chauvin Arnoux CA773 Voltage Absence Tester is a practical, versatile and ergonomic addition to any electrician’s toolkit.

Chauvin Arnoux CA773 Voltage Absence Tester Key Features

  • Determine the presence of a voltage in CAT IV 1000V electrical installations
  • AC voltage detection range: 12V to 1000V
  • DC voltage detection range: 12V to 1400V
  • Voltages indicated on LED bar graph
  • Voltages indicated on the backlight digital display
  • Resistance values are also indicated on the display when conducting extended continuity tests
  • Audible and visual continuity test at 100Ω
  • Stray voltage detection
  • Unipolar phase detection
  • Two-pole phase sequence testing up to 400Hz using the 2-wire method with a microprocessor
  • RCD trip test using a double control system
  • Autotest function checks electrical circuits, power supplies, displays and the condition of measurement leads
  • Integrated redundant safety system
  • ELV LED will flash if a voltage above 50V AC or 120V DC is detected
  • The faster the ELV LED flashes the higher the voltage detected
  • ELV LED will flash if a power supply fault is detected
  • Double insulated probes protect against electric shocks
  • Removable leads and probes can be attached in two positions, either 16mm or 19mm spacing
  • Integrated torch
  • IP65
  • Type-N extended climatic class
  • Remains operational between -15°C and +40°C
  • Can be used with the Chauvin Arnoux CA753 Adapter to test European and Schuko 2P+E sockets
  • Extensive battery life: 2500 x 10s measurements
  • IEC 61243-3 Edition 2
  • EN 61243-3 Ed. 2009
  • EN 61243-3 Ed. 2010
  • IEC 61010 1000V CAT IV

What’s Included?

  • Chauvin Arnoux CA773 Voltage Absence Tester
  • 2x 1.5V LR06/ AA Batteries
  • 1x Set of Removable Test Probes Ø 2mm with Crystal Safety Cover
  • 1x Probe-tip Protection
  • 1x Velcro Strap
  • 1x Operating Manual in Five Languages
Technical Specs

Part Code: P01191773

Chauvin Arnoux CA773 Voltage Absence Tester Technical Specifications

The Chauvin Arnoux CA773 Voltage Absence Tester has a sister product, the Chauvin Arnoux CA771 Voltage Absence Tester, please find below the technical specifications for both of these models.

Technical Specifications CA771 CA773
Display LEDs LEDs + backlit digital display
Voltage absence testing (VAT)
Voltage

12 Vac ≤ U ≤ 1,000 Vac

12 Vdc ≤ U ≤ 1,400 Vdc

-

1.0 V to 299.0 Vac/dc

300 V to 1,000 Vac / 1,400 Vdc

Frequency DC, 162/3 to 800 Hz
Impedance > 500 kΩ
Max. peak current 3.5 mA RMS
Polarity indication Yes
Redundant hazardous-voltage indication The ELV (Extra-Low Voltage) LED indicates that the voltage is higher than the SELV (Safety Extra-Low Voltage) with the rate at which it flashes proportional to the voltage level
Stray voltage detection Yes (by low-impedance load switching)
RCD tripping Yes (by low-impedance load switching) (approx. 30 mA at 230 V)
Phase/Neutral identification

Above 50 V (45 - 65 Hz)

Above 150 V (162/3 - 45 Hz)

Continuity & Resistance
Buzzer trigger threshold 100 Ω typical (150 Ω max.)
Extended continuity test (resistance) 2 kΩ, 60 kΩ, 300 kΩ 0.5 Ω to 2,999 kΩ
Test current / Open-circuit voltage ≤ 1 mA / ≤ 3.3 V
Phase rotation 2-wire method with microprocessor
Ph/Ph voltage 50 V ≤ U ≤ 1,000 Vac (45 - 400 Hz)
Buzzer

Intermittent beep for Voltage Detection

Continuous beep for continuity

Standards and electrical safety IEC 61243-3:2009, EN 61243-3:2010, IEC 61010 1,000 V CAT IV
Enclosure protection IP65
Climatic conditions -30 °C to +60 °C (Class S) -15 °C to +45 °C (Class N)
Battery life > 5,000 x 10 s measurements > 2,500 x 10 s measurements
Dimensions / weight 228 x 60 x 39 mm (without test probes) / 350 g approx.
