Description

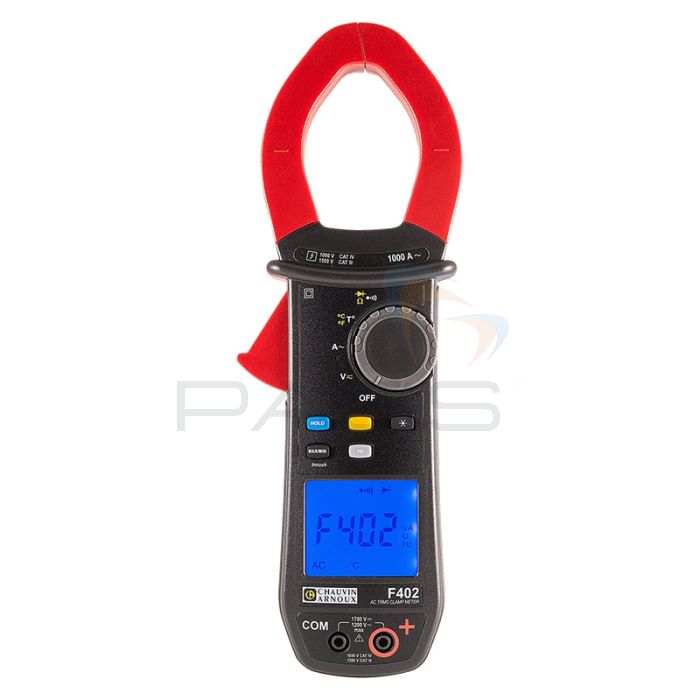

To deal with the highest level of low-voltage electrical installations, the Chauvin Arnoux F400 Series has a high protection rating and is ideal for maintenance, testing, monitoring, and diagnostics on medium-power installations. Equipped with a fast 12-bit TRMS digital acquisition system, Chauvin Arnoux F402 clamps offer particularly accurate measurements whatever the signal's waveform.
Key Features
- 48 mm clamping diameter
- 1,000 A AC current
- Voltage up to 1,200 VAC / 1,700 VDC
- Resistance and audible continuity
- Temperature
- Automatic AC/DC detection
- TrueInrush current measurement
- Hold, Min, MAX
- CAT IV 1,000 V / CAT III 1,500 V
- IP54 protection rating
Downloads
Datasheets
Manuals & Guides
Tech Specs
F402 1,200 VAC / 1,500 VDC | ||
---|---|---|
Display Resolution | 10,000 cts | |
Measurements Displayed | x 1 | |
Display Backlighting | ● | |
Acquisition Method | TRMS | |
Automatic AC/DC Detection | ● | |
A | AC | ● |
DC | ✘ | |
AC+DC | ✘ | |
V | AC | ● |
DC | ● | |
AC+DC | ✘ | |
Hz | ● | |
Resistance/Audible Continuity | ● | |
T° (°C / °F) | ● | |
Min / Max | ● | |
True InRush | ● |
0 Reviews
Overall Rating
Additional Information
SKU | P01120942 |
---|---|
Manufacturer Part Code | P01120942 |
Country of Origin | China |
