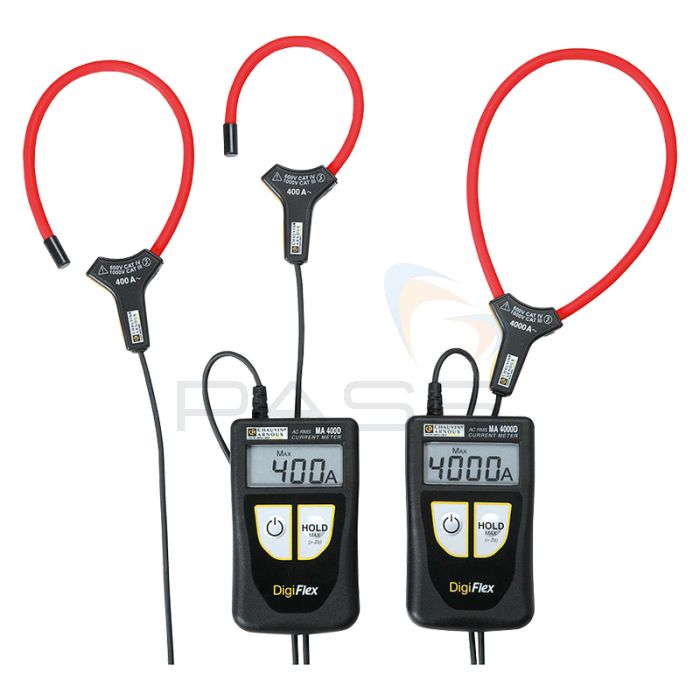

Chauvin Arnoux MA400D/MA4000D DigiFlex Ammeter with Flexible Sensor - Choice of 170/250/350mm
- Flexible current sensors
- 4,000-count digital display
- Applications up to 600V CAT IV
SKU
MA400D/MA4000D

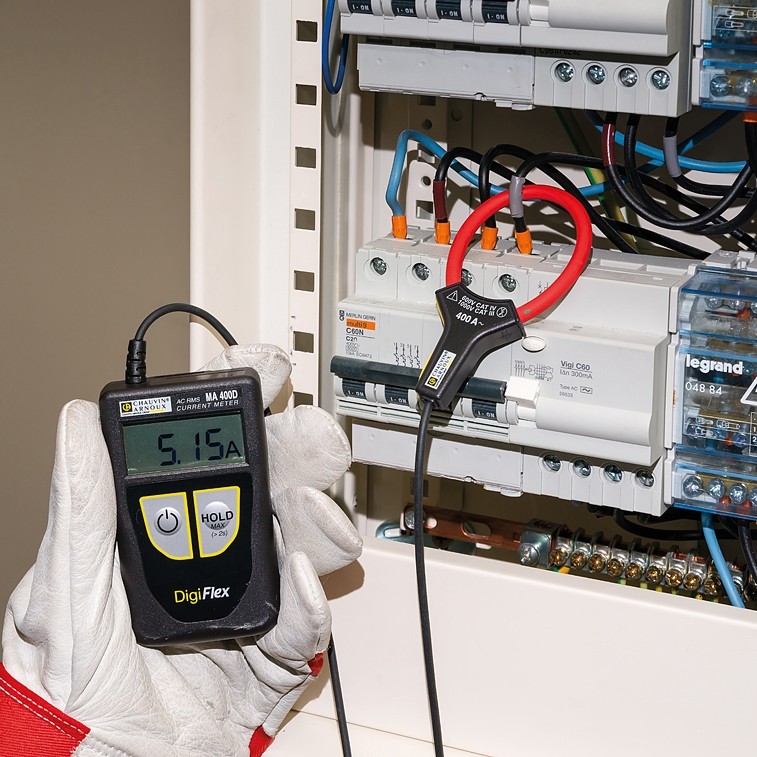

The DigiFlex current testers are equipped with flexible current sensors connected to a compact casing. They can be used comfortably in any electrical cabinet for applications up to 600V CAT IV. These stand-alone instruments are equipped with a 4,000-count digital display for direct current readings & a strap is supplied to make it easier to store.
The sensor-closing system makes for simplistic preparation, also indulged by the magnetized Multifix mounting system allowing them to be positioned anywhere.
Key Features
- Compact, stand-alone, and simple to use
- Direct current readings
- Measurement from 10 mA
- Storage of maximum value
Product Includes
- 2 batteries
- User manual
- Hook-and-loop tape
Product Ranges
- P01120575Z MA400D DigiFlex Ammeter with Flexible Sensor 170mm
- P01120576Z MA400D DigiFlex Ammeter with Flexible Sensor 250mm
- P01120577Z MA4000D DigiFlex Ammeter with Flexible Sensor 350mm
Technical Information
Specification
| MA400D | MA4000D | |||||
|---|---|---|---|---|---|---|
| Display Range | 4 A AC | 40 A AC | 400 A AC | 40 A AC | 400 A AC | 4000 A AC |
| Measurement Range | 0.020 A … 3.999 A | 4.00 A … 39.99 A | 40.0 A … 399.9 A | 0.1 A … 39.99 A | 40.0 A … 399.9 A | 400 A … 3,999 A |
| Resolution | 1 mA | 10 mA | 100 mA | 10 mA | 100 mA | 1 A |
| Accuracy | ±(2% + 10 cts) | ±(1.5% + 2 cts) | ±(1.5% + 2 cts) | ±(2% + 10 cts) | ±(1.5% + 2 cts) | ±(1.5% + 2 cts) |
| Sensor Clamping Diam./Length | MA400D-170: Ø 45 mm / 170 mm MA400D-250: Ø 70 mm / 250 mm |
MA4000D-350: Ø 100 mm / 350 mm | ||||
| Bandwidth | 10 Hz … 3 kHz | |||||
| Power Supply | 2 x 1.5 V AAA/LR3 batteries | |||||
| Safety | IEC 61010 CAT IV 600V | |||||
| Operating Temperature | 0°C to +50°C | |||||
| Instrument Weight | Approx. 130 g | |||||
| Casing Dimensions | 100 x 60 x 20 mm | |||||
| Connection Cable Length | 0.8 m | |||||
