DiLog DL6402 Digital Clamp Meter

Black Friday Free Gift (Spend £200+)
All DiLog Products
  • Multifunctional, digital, slim design clamp meter
  • 30mm tear-shaped jaw
  • Measures AC/DC voltage and current, resistance, frequency, continuity, capacitance, and temperature
SKU
DL6402
MPN
DL6402

Read More

The DiLog DL6402 Digital Clamp Meter features a tear-shaped 30mm jaw and thin design, enabling use in tight and/or crowded spaces. This clamp meter measures AC/DC voltage and current, resistance, frequency, continuity, capacitance, and temperature.

The measurement ranges available on this model are:

  • AC Voltage: 0.1mV – 600V
  • DC Voltage: 0.1mV – 600V
  • AC Current:0.01A – 1000A
  • DC Current:0.01A – 1000A
  • Resistance: 0.1Ω - 40 MΩ
  • Frequency:0.001Hz -100kHz
  • Continuity: up to 100Ω
  • Capacitance: 40nF-100uF
  • Temperature: -20°C - +1000°C / -4°F - +1832°F

This clamp meter also features an audible and visual continuity alarm which activates if a resistance of less than 100Ω is detected. Furthermore, the DiLog DL6402 Digital Clamp Meter also has a frequency and duty cycle, as well as Data Hold and Peak Capture functions, allowing the user to quickly and efficiently identify and record required measurements.

This product’s electronic overload protection ensures the continued safety of the user, as well as the accuracy, efficiency, and functionality of DiLog’s DL6402 Digital Clamp Meter. The Auto Power Off function also works towards protecting the user’s safety and the product’s functionality, as well as reducing the frequency at which the power supply will need to be replaced.

The DiLog DL6402 Digital Clamp Meter is supplied with a temperature thermocouple and K-Type adaptor and features a double moulded casing and large, 2000 counts, backlit, LCD display, making this digital clamp meter suitable for use in rugged and/or visually challenging environments. Therefore the DiLog DL6402 Digital Clamp meter is a practical, multifunctional and cost-effective addition to any electrician’s toolbox.

DiLog DL6402 Digital Clamp Meter Key Features

  • Multifunctional, ergonomically designed clamp meter with a 30mm tear-shaped jaw
  • Slim design – ideal for use in tight, crowded environments
  • Measures AC voltage between 0.1mV and 600V
  • Measures DC Voltage between 0.1mV and 600V
  • Measures AC current between 0.01A and 1000A
  • Measures DC current between 0.01A and 1000A
  • Measures resistance between 0.1Ω and 40MΩ
  • Measures frequency between 0.001Hz and 100kHz
  • Measures capacitance between 40nF and 100uF
  • Measures temperature between -20°C and +1000°C / -4°F and +1832°F
  • Audible and visual continuity alarm
  • Frequency and duty cycle
  • Data Hold function
  • Peak Capture function
  • Auto Power Off function
  • Electronic overload protection
  • Supplied with temperature thermocouple
  • Supplied with K-Type adaptor
  • Double moulded casing
  • Large, 2000 Counts, backlit, LCD display

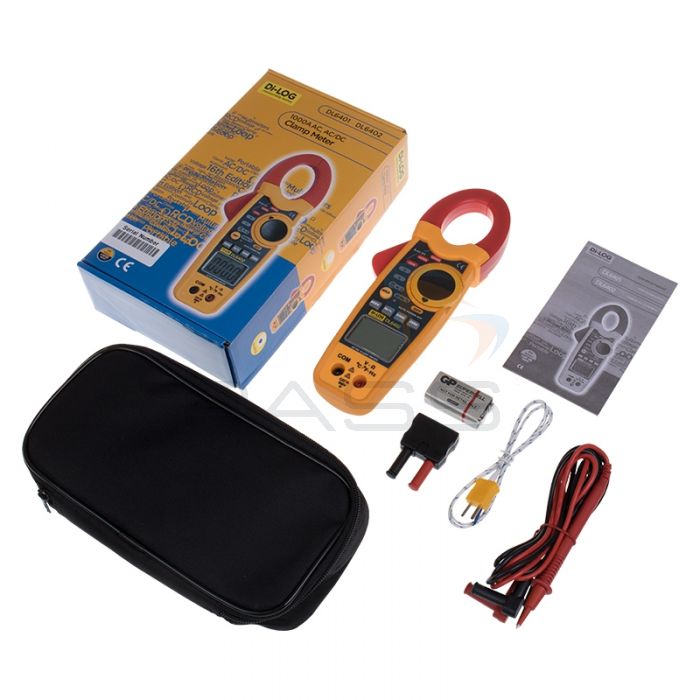

What’s Included?

  • DiLog DL6402 Digital Clamp Meter
  • Temperature Thermocouple
  • K-Type Adaptor
  • 1x 9V Battery
  • 2 Year Warranty From DiLog



Discontinued

Contact us for an alternative

Call 01642 931 329 or complete the form:

Offers

Black Friday Free Gift (Spend £200+)

Get a free gift this Black! Even better, this bonus stacks with any other offer.

  • Spend £200+ get a free Head Torch OR
  • Spend £500+ get a free Digital Tyre Inflator

Free item will automatically add to your basket. Limited Stock. Offer is based on ex VAT basket total after discounts and before shipping costs. See Black Friday Offers for details.

Remember: We will not be beaten on price. Contact us if you've seen a cheaper price.

Technical Information
Specification

DiLog DL6402 Digital Clamp Meter Technical Specifications

Measurement Specifications
Measurement Range Basic Accuracy
AC Current  0.01A - 1000A 3% ± 5 dgts
DC Current  0.01A - 1000A 2.8% ± 5 dgts
AC Voltage 0.1mV - 600V 1.8% ± 3 dgts
DC Voltage 0.1mV - 600V 1.5% ± 3 dgts
Resistance  0.1Ω - 40MΩ 1.5% ± 2 dgts
Capacitance 40.00nF – 100.0uF 3% ± 5 dtgs
Frequency 0.001Hz – 100.0kHz 1.2% ± 2 dgts
Temperature -20°C - 1000°C
-4°F - 1832°F
±3.0 % of rdg ± 5 dgts
±3.0 % of rdg ± 7 dgts
Technical Specifications
Diode Test 1.5V DC Typical
Power Supply 1 x 9 V battery PP3
Dimensions  229 x 80 x 49 mm
Weight 303g
Document Downloads
DiLog DL6402 and DL6401 Digital Clamp Meter - Instruction Manual Manual/Guide
DiLog DL6402 and DL6401 Digital Clamp Meter - Specification Sheet Technical Specification
Additional Information
SKU
DL6402
Manufacturer Part Code
DL6402
