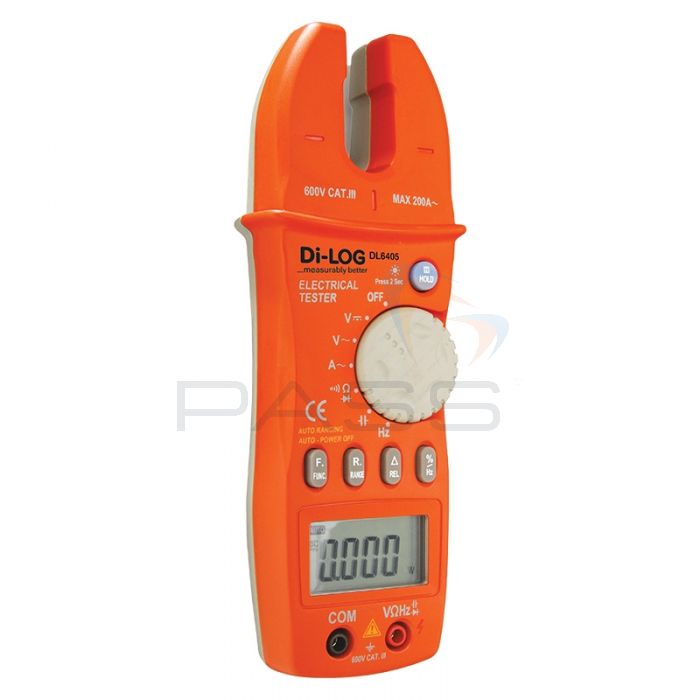

DiLog DL6405 Open Jaw Digital Clamp Meter (200A AC)

DiLog DL6405 Open Jaw Digital Clamp Meter (200A AC)
sku: DL6405
MPN: DL6405

Free UK Delivery On Orders Over £40
  • Compact, auto-ranging open jaw digital clamp meter
  • Measures AC current, AC/DC voltage, resistance, capacitance, frequency, and temperature
  • 13mm open jaw

Was: £103.00
You Save: £20.60
£82.40 Incl. VAT £98.88
Was: £103.00
You Save: £20.60
£82.40 Incl. VAT £98.88
Members earn 164 points

Do you have a question or found it cheaper? Contact us

Description

DiLog DL6405 Open Jaw Digital Clamp Meter (200A AC) Details

The DiLog DL6405 Open Jaw Digital Clamp Meter (200A AC) is compact in design and can be used to measure AC current, AC/DC voltage, resistance, capacitance, frequency, and temperature.

This product can also be used to perform diode tests, and the measurement ranges available on the DiLog DL6405 are:

  • AC Current: to 200 A
  • AC Voltage: to 700 V
  • DC Voltage: to 1000 V
  • Resistance: to 40MΩ
  • Capacitance: 40nF-40µF
  • Frequency: to 100 KHz
  • Temperature: -20°C - +1000°C / -4°F - +1832°F

In addition to the DiLog DL6405’s electric measurement capabilities, it is also auto ranging; features a Data Hold function; and electronic overload protection, adding to this product’s efficiency, ease-of-use, and safety.

The DiLog DL6405 Open Jaw Digital Clamp Meter (200A AC) has been optimised for use in tight spaces and has a 13mm open jaw allowing the user to access even the most crowded of panels. This combined with the product’s extensive measurement capabilities, and 4000 counts LCD display make the DiLog DL6405 Open Jaw Digital Clamp Meter (200A AC) a versatile, cost-effective and practical product.

DiLog DL6405 Open Jaw Digital Clamp Meter Key Features

  • Compact open jaw digital clamp meter with multiple measurement functions
  • Measures AC Current  to 200 A
  • Measures AC Voltage to 700 V
  • Measures DC Voltage to 1000 V
  • Measures resistance to 40MΩ
  • Measures capacitance between 40nF and 40µF
  • Measures frequency to 100 KHz
  • Temperature measurement range of -20°C - +1000°C / -4°F - +1832°F
  • Relative measurement
  • Can perform diode tests
  • Auto-Ranging
  • Data Hold function
  • Electronic overload protection
  • 13mm open jaw, giving the user access to tight spaces
  • 4000 counts LCD display

What’s Included?

  • DiLog DL6405 Open Jaw Digital Clamp Meter (200A AC)
  • 2 Year Warranty From DiLog
Technical Specs

Part Code: DL6405

DiLog DL6405 Open Jaw Digital Clamp Meter (200A AC) Technical Specifications

Measurement Specifications
Measurement  Range  Basic Accuracy
AC Current  200 A 3% ± 5 dgts
AC Voltage  700 V 1.8% ± 3 dgts
DC Voltage 1000 V 1.5% ± 3 dgts
Resistance  40MΩ 1.5% ± 2 dgts
Capacitance  40 nF – 40 μF 3% ± 5 dtgs
Frequency  100 KHz 1.2% ± 2 dgts
Temperature -20°C - 1000°C
-4°F - 1832°F
±3.0 % of rdg ± 5 dgts
±3.0 % of rdg ± 7 dgts
Technical Specifications
Duty Cycle  0.1% to 99.9%
Diode Test Less then 30Ω
Power Supply 1 x 9 V battery 6F22
Dimensions  192 x 68 x 43 mm
Weight 230g
