Dilog DLLEG1 Legionella Test Kit Thermometer Set
- DL7101 - Digital Thermometer
- KSP2 - Heavy Duty Surface Probe Range
- KAL1 - Air Liquid Probe
- T1-T2 Differential Measurement
SKU
DLLEG
MPN
DLLEG1
The DLLEG1 Legionella Test Kit has a selectable resolution of 0.1° or 1° and measures temperatures above 60°C in hot water systems and below 20°C in cold water systems. The DL7101 thermometer has dual-input capability, enabling simultaneous and differential temperature readings on its backlit LCD screen.

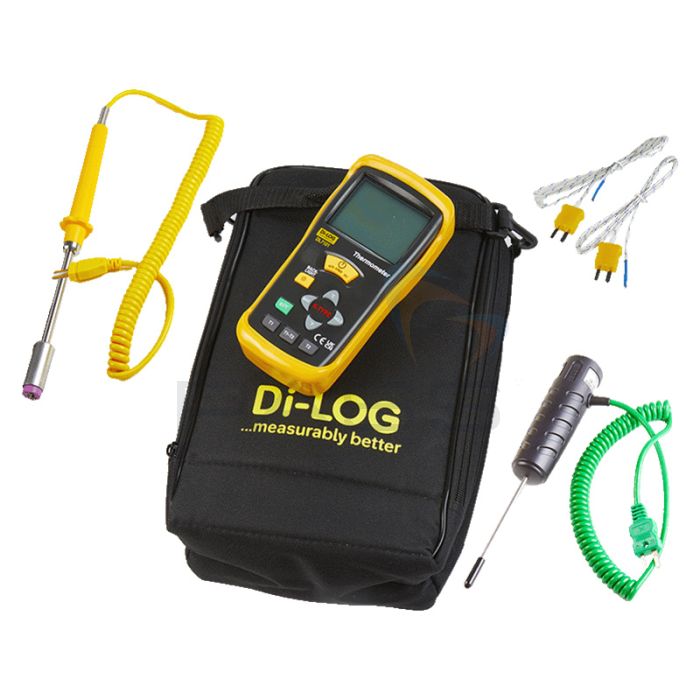

The kit includes the DL7101 dual-input digital thermometer, a KAL1 air-liquid probe, a KSP2 heavy-duty surface probe, and a durable carry pouch with a foam insert.
Key Features
- Thermometer Temperature Range -50 to 1300 °C (-58 to 2000 °F)
- KSP2 - Heavy Duty Surface Probe Range -50 to 500 °C
- KAL1 - Air Liquid Probe -50 to 500 °C
- Backlit LCD Display
- Max Data Hold
- Dual k-Type Input
- T1-T2 Differential Measurement
- Press the scan button to conserve battery life
What's Included?
- DiLog DL7101 Digital Thermometer
- Heavy Duty Surface probe KSP2
- Liquid probe KAL1
- Carry case
Technical Information
Specification
| Measurement | Range | Accuracy |
|---|---|---|
| Temperature °C | -50 to 199.9 °C | ± 0.5% rdg + 1 |
| -50 to 1200 °C | ± 0.5% rdg + 2 | |
| Temperature °F | -58 to 199.9 °F | ± 0.5% rdg + 2 |
| -58 to 1999 °F | ± 0.5% rdg + 4 |
DiLog DL7101 Digital Thermometer
Technical Specifications |
||
| Measurement | Range | Accuracy |
| Temperature °C | -50 to 1000°C | 0.5 % rdg ± 1°C |
| Temperature °F | -58 to 2000°F | ± 0.5 % ± 2°F |
| Input Selection | 60 V DC or 24 V AC rms | |
| Power Supply | 1 x 9V battery | |
| Dimensions | 162 x 76 x 43 mm | |
| Weight | 403g | |
| Reading Rate | 2.5 times per second | |
| Input Connection | Accepts standard miniature thermocouple connectors (flat blades spaced 7.9mm, centre to centre). ‘K’ type. | |
| Ambient Operating Range | 0°C to 50°C (32°F to 122°F) | |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) | |
| Relative Humidity | 0% to 80% (0°C to 35°C) (32°F to 95 °F) 0% to 70% (35°C to 50°C) (95°F to 122°F) | |
| Display | 3½ digit liquid crystal display (LCD) with a maximum reading of 1999. | |
Document Downloads
Dilog DLLEG1 Legionella Test Kit Thermometer Set Datasheet
DiLog DL7101 Digital Thermometer - User Manual
DiLog DL7101 Digital Thermometer - Specsheet
Additional Information
SKU
DLLEG
Manufacturer Part Code
DLLEG1
