Extech BR90 Borescope Inspection Camera

SKU
BR90
Rating:
0%
(0)
Reward Points (?)

Logged in, worth £1.00, read more.

:
100
£121.18 £100.98
Only 1 in Stock
Advice & Support
Price Match Request

The Extech BR90 Borescope Inspection Camera is a flexible, waterproof, palm-size videoscope suitable for conducting visual inspections of hard-to-reach areas.

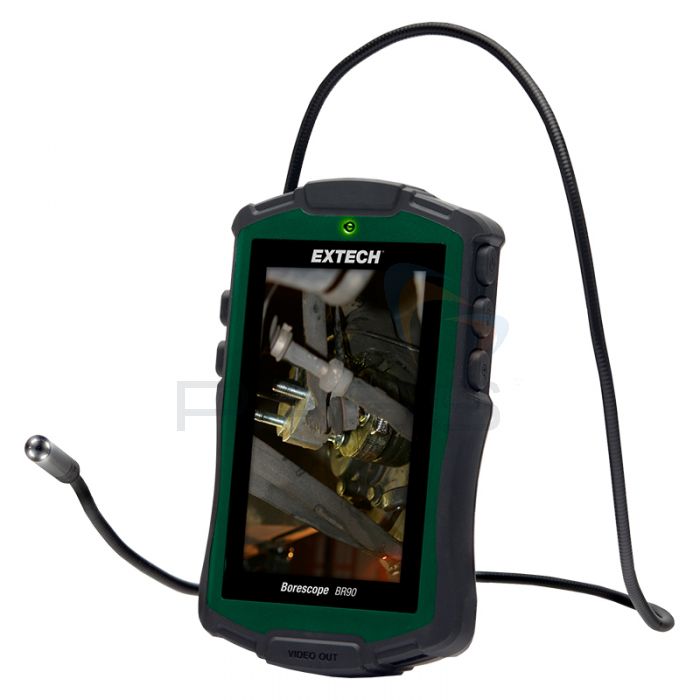

The Extech BR90 Borescope Inspection Camera consists of a waterproof, IP67-rated, Ø8mm camera probe with a 77cm (2.5 ft) flexible goose-neck cable and a large, 109mm (4.3”), colour TFT LCD monitor.  The design of the goose-neck cable ensures that it retains its configured shape. The Extech BR90 Borescope also includes a unique compartment for coiling the camera probe, providing easy and convenient storage.

This compact borescope's camera has a 640 x 480px resolution and glare-free close-up field-of-view. The Extech BR90’s camera is also equipped with four integrated LED lamps with a dimmer function enabling it to capture images in dark or sparsely lit areas. Detailed images are viewable via the Extech BR90 Inspection Camera’s LCD monitor with adjustable brightness and 2x digital zoom. The Extech BR90’s monitor also features a mirror flip feature and 180° image rotation.

Moreover, the Extech BR90 Palm Scope's monitor includes a Video Output function for viewing real-time footage (video cable NOT included).

Finally, the Extech BR90 Borescope Inspection Camera features a low battery indicator and is supplied with four AA batteries, a soft carry case and extension tools including a mirror, hook, magnet and fixture.

The Extech BR90 Borescope Inspection Camera is an ergonomic, easy-to-use and economical videoscope.

Extech BR90 Borescope Inspection Camera Key Features

  • A flexible, waterproof, palm-size videoscope suitable for visually inspecting hard-to-reach areas
  • Waterproof, IP67-rated, Ø8mm camera probe with a 77cm (2.5 ft) flexible goose-neck cable
  • The design of the goose-neck cable ensures that it retains its configured shape
  • Unique compartment for storing the coiled cable
  • Camera resolution: 640 x 480px
  • Glare-free, close-up field-of-view
  • The camera includes four built-in bright LEDs with a dimmer function
  • View detailed images on the large, 109mm (4.3”), colour TFT LCD monitor
  • The LCD monitor features adjustable brightness
  • 2x digital zoom
  • Mirror flip feature
  • 180° image rotation
  • Video output function for viewing footage in real-time via the monitor (video cable NOT included)
  • Low battery indicator
  • Supplied with four AA batteries, a soft carry case and extension tools including a mirror, hook, magnet and fixture
  • An ergonomic, easy-to-use and economical inspection camera

Applications

The Extech BR90 Borescope Inspection Camera is suitable for the following applications.

Home Inspection Inspect walls for mould and insect infestations
Check and find the locations of electrical wires and water pipes
HVAC Look inside ducts and behind motors and compressors
Automotive Check inside and around engines and transmissions
Government Conduct safety and security inspections
Industrial Inspect weld integrity, process equipment and gears

What’s Included?

  • Extech BR90 Borescope Inspection Camera
  • 4x AA Batteries
  • Extension Tools (Mirror, Hook, Magnet and Fixture)
  • Soft Carry Case

Extech BR90 Borescope Inspection Camera Technical Specifications

Camera Specifications
Resolution 640 x 480 pixels
Camera viewing direction Viewing Angle 50°
Focus distance from object ~0.2 to 0.3" (~5 to 8 mm)
Minimum bend radius 1" (25 mm)
Dimensions Camera shaft: 0.32" (8 mm) diameter
Cable: 0.2" (4.4 mm) diameter/ 2.5 ft (77 cm) long
Monitor Specifications
LCD screen type 4.3" (109 mm) colour TFT display
Resolution 640 x 480 pixels
Image zoom ratio 1.5x and 2x
Video format NTSC
Dimensions 7.1 x 3.5 x 1.4" (180 x 89 x 36 mm)
Weight 11.5 oz (325 g)
