Extech PQ3350-1 3 Phase Power & Harmonics Analyser

SKU
PQ3350-1
Rating:
0%
(0)
Reward Points
:
2595
£3,114.00 £2,595.00
Lead Time: 1-2 Weeks Free UK Delivery*
Choose a Special Offer
  • Tolsen Tools Electrician's 14-Piece Insulated Tool Kit
    Tolsen Tools Electrician's 14-Piece Insulated Tool Kit
    FREE
    £79.00
  • Tolsen Tools Electrician's 14-Piece Insulated Tool Kit SKU: (TS-900013)
    FREE
    £79.00
    Tolsen Tools Electrician's 14-Piece Insulated Tool Kit
Advice & Support
Price Match Request
Free Tool Kit
Extech PQ3350 1 3 Phase Power Harmonics Analyzers

Use Extech's PQ3350-1 to accurately carry out power measurements, analysis and datalogging of single, 3-phase, 3-wire and 4 wire systems.

Once connected up to a system the PQ3350-1 has an extensive suite of measurement functions which can be displayed as harmonic analysis, power analysis or phase analysis. The tester can be used to measure AC voltage levels, AC current, active power (kW), apparent power (kVa), reactive power (kVAR), power factor, frequency, phase, harmonics, crest factor, active power energy and reactive power energy (the included flexible current clamps are used for current measurements).

The PQ3350-1 includes a large amount of functions designed for specific measurements including simultaneous display of harmonics and waveform, display of waveform with peak values (1024 samples/period), analysis of total harmonic distortion and much more.

In order to make sure that results are stored for later use the PQ3350-1 includes built-in datalogging functions allowing it to store up to 52428 records for single phase or 17476 records when used on 3 phase systems. This information can be downloaded directly to PC via a USB connection and interacted with using the included software package.

This tester is available in two variations: this version, the PQ550-1, comes with 1200A 12" flexible current clamp probes. The other model, the PQ3350-3, comes with 3000A 24" flexible current clamp probes. The basic functionality of both testers is the same.

Extech PQ3350-1 3 Phase Power & Harmonic Analyser Key Features

  • Flexible clamp probes allow connection to bus bars/wire bundles to carry out current measurements
  • Large backlit LCD screen can show up to 35 parameters simultaneously
  • Clamp-on true RMS power measurements with on-screen harmonic display
  • Simultaneous display of harmonics/waveform
  • Display of waveform with peak valyes
  • Analysis of total harmonic distortion
  • Maximum demand function with programmable period
  • Adjustable CT and VT ratio
  • Graphical phase diagram with 3-phase system parameters
  • 3-phase voltage or current unbalanced ratio (VUR, VIR) and unbalanced factor (D0%, d2%)
  • Calculated unbalanced current through neutral line (In)
  • Capture 28 transient events (including dip, sweel and outage) with programmable thresholds (%)
  • Interface with PC to download testing data
  • Stores thousands of records directly on the device

Full List of Products Included

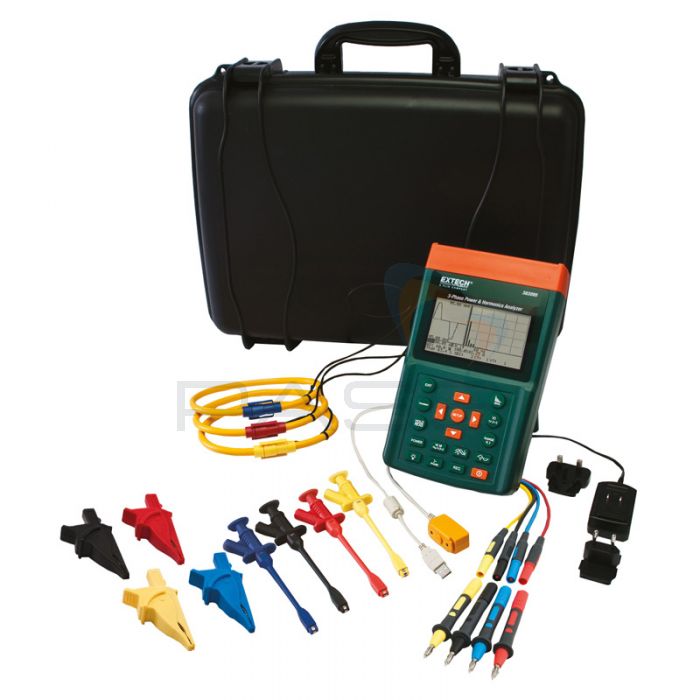

  • Extech PQ3350-1 3 Phase Power & Harmonic Analyser
  • 3 x Flexible Current Clamps
  • 4 x Voltage Leads with Alligator Clips and Retractable Plunger Clips
  • 8 x AA Batteries
  • Universal AC Adaptor
  • USB Interface Cable
  • Carrying Case

Extech PQ3350-1 Technical Specifications

Specifications Range Basic Accuracy
ACV (True RMS) 600V ±(0.5%rdg+5d)
AC Current Model PQ3350-1 (1200A)
Model PQ3350-3 (3000A)
±(0.5%rdg+5d)
±(0.5%rdg+5d)
Active Power (kW) 9.999MW ±(1%rdg+8d)
Apparent Power (kVA) 9999kVA VA=Vrms x Arms
Reactive Power (kVAR) 9999kVAR VAR= sqr (VA2-W2)
Power Factor 0.0 to +1.00 ±(1.5%°rdg±8d)
Frequency 45-65Hz 0.1Hz
Phase -180.0°~ 0°~ +180.0° ±1°
Harmonics 1 to 99 ±2%
Crest Factor 1.00 to 99.99 ±(5%+30d)
Peak AC Voltage Accuracy   ±(5%rdg+30d)
Peak AC Current Accuracy   ±(5%rdg+30d)
Active Power Energy (kWh) 0mWh to 999,999kWh
Reactive Power Energy (kVARh) 0.0kVARh to 1000MWh
Datalogging 52428 records (single phase)/17476 records (3 phase)
Dimensions/Weight 10.1 x 6.1 x 2.3" (257 x 155 x 57mm)/ 2.5 lbs (1160g)
0 Reviews Overall Rating
Write a Review
Write Your Own Review
You're reviewing:Extech PQ3350-1 3 Phase Power & Harmonics Analyser
Your Rating
Additional Information
SKU PQ3350-1
Manufacturer Part Code PQ3350-1
Model Ref Extech PQ3350-1
Country of Origin China
