Extech RF41 Portable Battery Coolant/Glycol Refractometer
The Extech RF41 is used to accurately determine the specific gravity levels of ethylene/propylene glycol and can also be used to measure the overall freezing point of various types of coolant.
Available ranges on this refractometer are -50 to 0°C, Propylene Glycol freeze point, -50 to 0°C Ethylene Glycol freeze point and 1.15 to 1.30 Specific Gravity of Battery Acid. All measurements are calculated with automatic temperature compensation, ensuring that the effects of temperature do not have an effect on measurement accuracy.
Extech's RF range of refractometers are easy to use and can be used to determine repeatable measurements by adjusting the focus slightly. They also only require 2 to 3 drops of solution in order to operate.
Extech RF41 Portable Battery Coolant/Glycol Refractometer Key Features
- Accurately measure the concentration level of ethylene/propylene glycol
- Measure the gravity of battery and other coolant types
- Handheld and easy to use
- Automatic temperature compensation
- Repeatable measurements
- Only requires 2 to 3 drops of solution to work

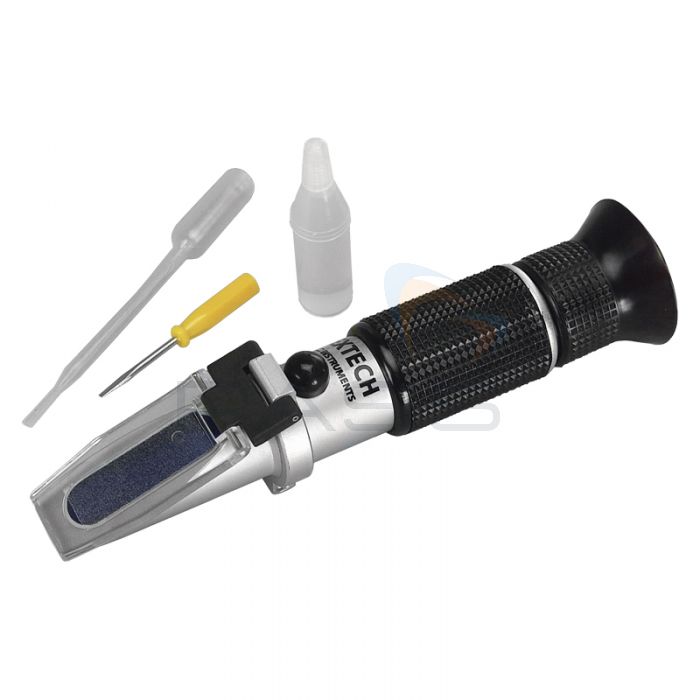

Full List of Products Included
- Extech RF41 Portable Battery Coolant/Glycol Refractometer
- Carrying Case
- Calibration Screwdriver
- Calibration Solution
Extech RF41 Technical Specifications/ Comparison Chart
| Specifications | ||||
| Model | Type | Ranges | Resolution | Accuracy |
| RF16 | Sucrose | 0 to 10% Brix | 0.1 | ±0.1% |
| RF11 | Suscrose (ATC) | 0 to 10% (10 to 30°C) | 0.1 | ±0.1% |
| RF18 | Lubricants/Cutting Fluids | 0 to 18% Brix | 0.2 | ±0.2% |
| RF12 | Lubricants/Cutting Fluids (ATC) | 0 to 18% Brix (10 to 30°C) | 0.2 | ±0.2% |
| RF10 | Sucrose | 0 to 32% Brix | 0.2 | ±0.2% |
| RF15 | Sucrose (ATC) | 0 to 32% Brix (10 to 30°C) | 0.2 | ±0.2% |
| RF20 | Salt (ATC) | 0 to 100ppt (10 to 30°C) 1.000 to 1.070 Refractive Index |
0.001 | ±0.1% |
| RF40 | Coolant (ATC) | -60 to 32°F Propylene Glycol freeze point -60 to 25°F Ethylene Glycol freeze point 1.15 to 1.30 Specific Gravity of Battery Acid |
2°F 2°F 0.01 |
±2% ±2% |
| RF41 | Coolant (ATC) | -50 to 0°C Propylene Glycol freeze point -50 to 0°C Ethylene Glycol freeze point 1.15 to 1.30 Specific Gravity of Battery Acid |
1°C |
±2% ±2% |
| RF30 | Triple Range General Service |
0 to 41% Brix 42 to 71% Brix 72 to 90% Brix |
0.2 0.2 0.2 |
±0.2% ±0.2% ±0.2% |
| Dimensions/Weight | RF10/RF15: 6.6 x 1.6 x 1.2" (170 x 40 x 30mm)/ 7oz (200g); RF11/RF16: 7.5 x 1.6 x 1.2" (190 x 40 x 30mm)/ 6.5oz (185g); RF12/RF18: 6.7 x 1.6 x 1.2" (170 x 40 x 30mm)/ 6.5oz (185g); RF20: 7.6 x 1.5 x 1.5" (194 x 38 x 38mm)/ 8oz (227g); RF40/RF41: 6.2 x 1.6 x 1.2" (160 x 40 x 30mm)/ 6.3oz (180g) RF30: 7.9 x 1.5 x 1.1” (200 x 38 x 28mm)/ 21.86oz (620g) |
|||
0 Reviews
Overall Rating
Additional Information
| SKU | RF41 |
|---|---|
| Manufacturer Part Code | RF41 |
| Country of Origin | China |
