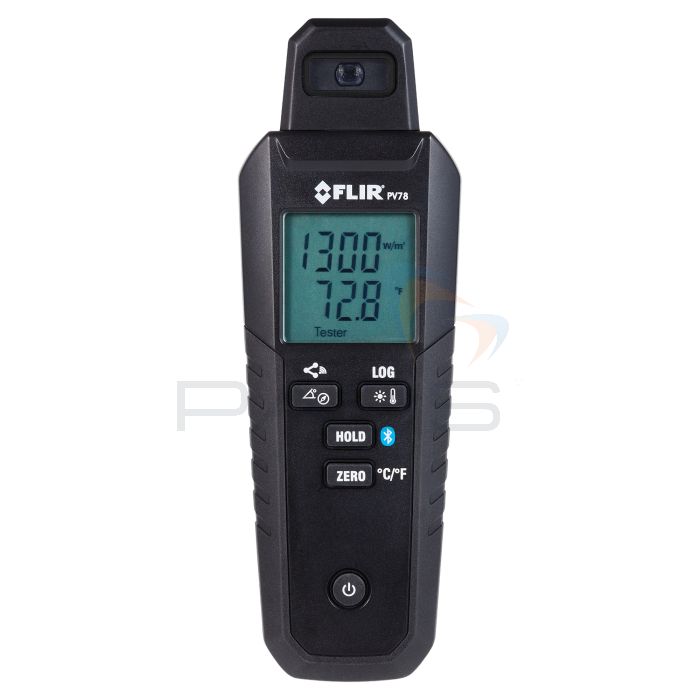

FLIR PV78 Solar Irradiance and Temperature Meter
- Instantly measures solar irradiance
- High contrast, large LCD
- Tilt Sensor
- Supports wireless METERLiNK connectivity
SKU
PV78
MPN
PV78
The FLIR PV78 instantly measures solar irradiance from 0 W to 1400 W/m², meeting the IEC 62446-1 standard for PV system testing. It also captures panel temperature, array direction, and tilt angle data.
The PV78 has a high-contrast LCD that remains readable in direct sunlight. It includes an external temperature probe with a mounting bracket. Users can collect and share data through the wireless METERLiNK connectivity.
Troubleshoot Faster and Improve Solar Panel Inspection and Installation with FLIR PV Kits
Key Features
- Instantly measures solar irradiance from 0 W to 1400 W/m² as required by IEC 62446-1 standard
- Tilt Sensor
- Measures solar irradiance, panel temperature, array direction, and inclination
- Compact design with external temperature probe and mounting bracket for continuous measurements
- High contrast, large LCD is easy to read in direct sunlight
- Supports wireless METERLiNK® connectivity for quick data collection and sharing
- Verify the performance and safety of installed solar systems
- Monitor and maintain large-scale solar power plants
- Ensure the quality of solar panels during production
What's Included?
- PV78 Solar Irradiance and Temperature Meter
- Pouch
- External Temperature Probe
- 9 V Alkaline Battery
- User Manual
Technical Information
Specification
| Measurement | Range | Accuracy |
|---|---|---|
| Irradiance | 50 W to 1400 W/m² | ±5% |
| Inclination Angle | -90° to 90° | ±3° |
| Temperature from Meter | -10°C to 50°C (14°F to 122°F) | ±1.5°C (±2.7°F) |
| Temperature from External Probe | -30°C to 100°C (-22°F to 212°F) | ±1.5°C (±2.7°F) |
| Compass | 0° to 360° | ±7° |
| Measuring Rate | 3 samples per second | |
| Static Datalogging and Storage | ||
| Data Storage Interval | 1 minute | |
| Readings per Memory Set | 360 set per file | |
| Connectivity | ||
| Wireless Technology | Bluetooth BLE | |
| Communications Protocol | METERLiNK | |
| Bluetooth Range | 10 m (32 ft) | |
| Power System | ||
| Battery | 9 V Alkaline battery | |
| Battery Life | Approx. 25 hours, with alkaline battery | |
| Auto Power Off | After approximately 30 minutes of inactivity | |
| General Information | ||
| FLIR Warranty | Limited 3-Year Warranty | |
| Calibration Cycle | Once per year, recommended | |
| Certifications | ||
| Certifications | CE, FCC, RCM | |
| EMC standards | EN61326-1, EN300328 | |
| Environmental Data | ||
| Operating Ambient Temperatures and Relative Humidity (RH) | Meter: -10°C to 50°C (14°F to 122°F), <80% RH Probe: -30°C to 100°C (-22°F to 212°F), <80% RH |
|
| Storage Temperature and RH | -20°C to 60°C (-4°F to 140°F), 0 to 80% RH (without batteries) | |
| Operating Altitude | 2000 m (6560 ft) | |
| Pollution Degree | 2 | |
| Meter Physical Data | ||
| Weight | 300 g (0.66 lbs) | |
| Dimensions (L x W x H) | 240.5 mm x 67 mm x 38 mm (9.5 in x 2.6 in x 1.5 in) |
|
