Fluke a3004 FC Wireless 4-20mA DC Clamp Meter
* Buy a Fluke (Worth £150+ Ex VAT) and Choose a Free Fluke!
Available until 31/08/24. For more details and to see your choice of free Fluke tool - View Offer
Only available from authorised Fluke distributors, such as PASS Ltd. Claim direct to Fluke with your invoice. T&Cs apply.

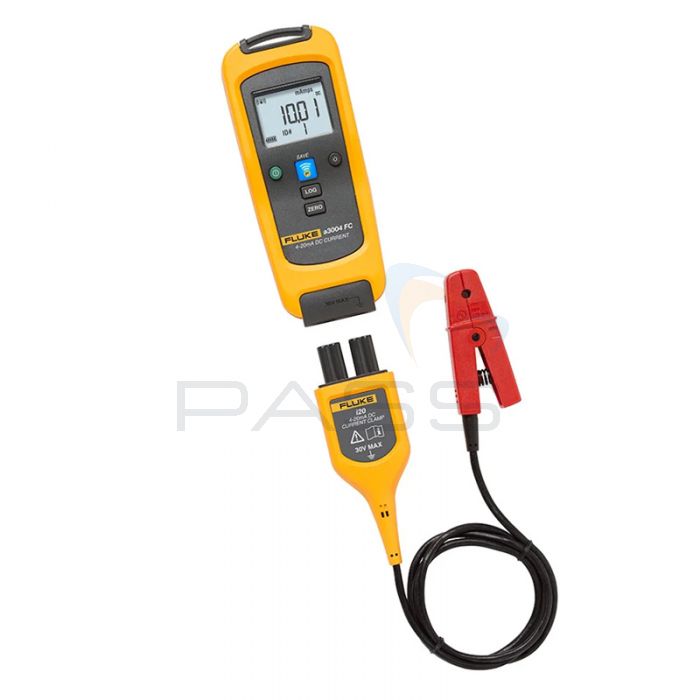

The Fluke a3004 FC Wireless 4-20mA DC Clamp Meter is a fully functional, wireless, current clamp meter capable of taking measurements between 4 and 20mA without “breaking the loop”. Readings can be logged to the Fluke a3004 FC Wireless 4-20mA DC Clamp Meter’s internal memory; it has the capacity to store up to 65 000 results. Additionally, data may be wirelessly transferred to a PC via a PC3000FC adapter or to the following Fluke products:
- Fluke 3000FC Digital Multimeter
- Fluke Ti200/300/400 Infrared Camera
- Fluke TiX560 and TiX520 Thermal Cameras
- Fluke Connect Mobile App
Finally, the Fluke a3004 FC Wireless 4-20mA DC Clamp Meter features a detachable clamp with an extension cable, ensuring that it can be used to take measurements in small spaces.
The Fluke a3004 FC Wireless 4-20mA DC Clamp Meter is an ergonomic, adaptable, and easy-to-use current clamp meter.
Fluke a3004 FC Wireless 4-20mA DC Clamp Meter Key Features
- Fully functional, wireless, current clamp meter
- DC current: 4mA to 20mA
- Take DC current measurements without “breaking the loop”
- Log up to 65 000 readings to the internal memory
- Wirelessly transfer measurements to a PC via a PC3000FC adapter
- Wirelessly transfer measurements to the Fluke 3000FC DMM, Fluke Ti200/300/400, TiX560 and TiX520 Thermal Cameras, and Fluke Connect Mobile App
- Detachable clamp with an extension cable for taking measurements in small spaces
- Ergonomic, adaptable, and easy-to-use current clamp meter
What’s Included?
- Fluke a3004 FC Wireless 4-20mA DC Clamp Meter
Fluke a3004 FC Wireless 4-20mA DC Clamp Meter Technical Specifications
| Range | 0.05 mA to 20.99 mA dc, 21.0 mA to 99.9 mA dc |
| Resolution | 0.01 mA, 0.1 A |
| Accuracy | 0.2 % ± 5 digits, 1.0 % ± 5 digits |
| LCD w/backlight | 3½ digits |
| Log rate/interval | 1 sec minimum/adjustable by PC or front panel |
| Battery type | 2 AA, NEDA 15 A, IEC LR6 |
| Battery life | 45 hours |
| Memory | Record up to 65,000 readings |
| RF communications | 2.4 GHZ ISM Band |
| RF communication range | Open air, unobstructed (up to 20 m) |
| Operating temperature | Obstructed, sheetrock wall (up to 6.5 m) |
| Obstructed, concrete wall or steel electrical enclosure (up to 3.5 m) | |
| -10 °C to +50 °C | |
| Storage temperature | -40 °C to +60 °C |
| Temperature coefficient | Add 0.1 X (specified accuracy)/°C (<18 °C or >28 °C) |
| Operating humidity | 90 % at 35 °C 75 % at 40 °C 45 % at 50 °C |
| Altitude | Operating: 2,000 m Storage: 12,000 m |
| EMC | EN 61326-1:2013 |
| Certifications | cCSAus, CE, FCC: T68-FBLE IC: 6627A-FBLE |
| Ingress Protection (IP) rating | IP42 |
| Jaw opening | 4.5 mm |
| Size (HxWxD) | 16.5 cm x 6.35 cm x 1.4 cm (6.5 in x 2.5 in x 1.4 in) |
| Weight | .299 kg (0.8 lb) |
| SKU | FLK-A3004 FC |
|---|---|
| Manufacturer Part Code | 4629301 |
| Country of Origin | China |
