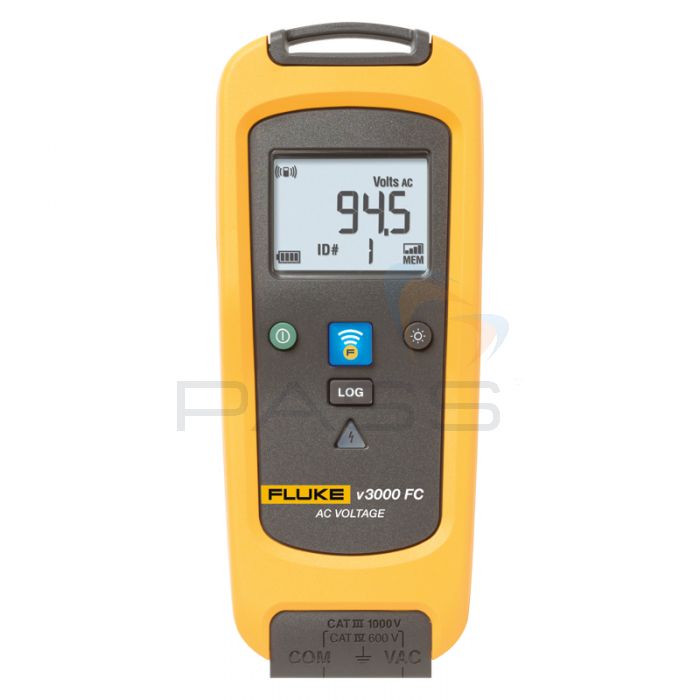

Suitable for use either by itself as a standalone voltage meter or alternatively suitable for measuring voltage wirelessly from a distance thanks to Fluke's Connect technology, the v3000 is versatile, easy to use and makes testing safer than ever before.
By using Fluke Connect, the v3000 can wirelessly interface with other Fluke Connect certified testing tools, your smartphone (via the Fluke Connect app) and can also be used to connect to a PC by using Fluke's adapter (pc3000 - sold separately). This technology can work up to 20m away from the measurement point, allowing voltage to be measured accurately and safely without actually holding the module.
The video below outlines more about Fluke Connect:
Once connected to a system the Fluke v3000 can measure AC voltage up to 1000V with true RMS accuracy. It also has built-in memory, allowing it to store up to 65000 readings.
Fluke Connect v3000 FC Wireless AC Voltage Module Key Features
- Compatible with Fluke 3000 FC Digital Multimeter, Fluke Ti200/Ti300/Ti400 Thermal Cameras, PC (via optional pc3000 FC Adapter) and Fluke Connect Mobile app
- Measure up to 1000V true RMS AC
- Use as a standalone meter or create a wireless measurement network
- Logging function allows storage of up to 65000 readings
What's Included?
- Fluke v3000 FC Wireless AC Voltage Module
- TL224 Test Leads
- AC285 Alligator Clips
- Magnetic Hanging Strap
Fluke v3000 Technical Specifications
Measurement Specifications | |
---|---|
Range/Resolution | 6V: 0.001V 60V: 0.01V 600V: 0.1V 1000V: 1V |
Accuracy | 45Hz to 500Hz: 1.0% + 3 500Hz to 1kHz: 2.0% + 3 |
General Specifications | |
LCD W/ Backlight | 3 1/2 digits, 6000 counts, updates 4/sec |
Battery Type | 2 AA, NEDA 15A, IEC LR6 |
Battery Life | 400 hours |
Memory | Records up to 65000 readings |
RF Communications | 2.4GHZ ISM band |
RF Communication Range | Open air, obstructed: up to 20m Obstructed, sheetrock wall: up to 6.5m Obstructed, concrete wall or steel electrical enclosure: up to 3.5m |
Operating Temperature | -10 to 50°C |
Storage Temperature | -40 to 60°C |
Temperature Coefficient | 0.1 X (specified accuracy) / °C (<18°C or >28°C) |
Operating Humidity | 90% at 35°C, 45% at 40°C, 45% at 50°C |
Altitude | Operating: 2000m Storage: 12000m |
EMC | EN 61326-1: 2006 |
Safety Compliance | ANSI/ISA 61010-1 (82.02.01): 3rd edition CAN/CSA-C22.2 No 61010-12: 3rd edition UL 61010-1: 3rd edition IEC/EN 61010-1: 2010 |
Safety Rating | CAT IV 600V, CAT III 1000V |
Certifications | CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE |
Ingress Protection (IP) Rating | IP42 |
Pollution Degree | 2 |
Size (H x W x D) | 16.5cm x 6.35cm x 1.4cm (6.5in x 2.5in x 1.4in) |
Weight | .22kg (8oz) |
SKU | FLK-V3000 FC |
---|---|
Manufacturer Part Code | 4401556 |
