Important Notice
This item is made-to-order exclusively for you once your order is placed. As a result, it is not eligible for cancellation or return under our standard policy. Your statutory rights remain unaffected.
Free Tyre Inflator. Spend £1000+ (ex VAT) View

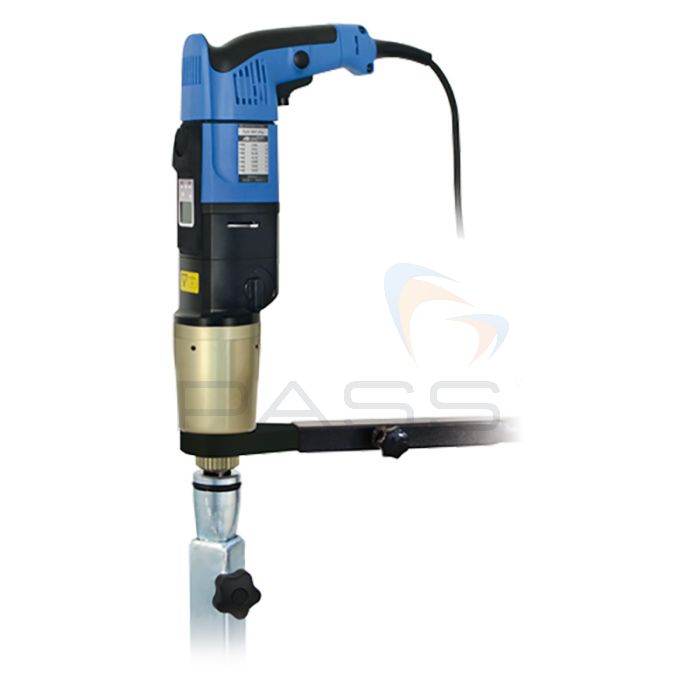

Gedore Electric Gate Valve Wrench Type LDE/LEW (075S or 09S) with Display - Choice of Model
- Integrated counter
- Infinitely variable torque
- Braked 360° rotatable drive unit
SKU
GT-GATE-LDE/LEW
Setting new standards with the robust gear unit housing and intelligent electronics under the display: Service functions such as overload and recalibration are displayed to the user. In default mode, the display shows the torque level. In addition, if required, the display can be changed from torque level to torque value.
The classical electric high-level torque wrench is also available with the TRACK documentation function.
Designed for the toughest construction site applications, the inductive data transmission system is used for non-contact transfer of your data to the laptop/ PC where you can conveniently edit them further.
Optionally, the electric torque wrench, which is available in straight and angled versions, can be upgraded with a data read-out function, the torque-rotation angle mode, and the Nm display function.
Key Features
- High input voltage and frequency range (200-260V, 47-63Hz), designed for international use
- Torque values readable on the label
- Digital display with visual-acoustic operator guidance for even simpler operation
- Electronic R/L switching function
- Planetary gear unit with Ceramic-Teflon-coated tooth flanks
- Optional: Torque rotation angle mode
- Integrated counter
- 2-speed manual transmission
- Special needle bearing of the gearbox for long service life
- Infinitely variable torque
- Switch-off electronics protected against splash water and moisture
- Simple changeover from clockwise to anti-clockwise rotation
- Braked 360° rotatable drive unit
What's Included?
- Cordless torque wrench
- Reaction arm (LM) in straight version
- Operating instructions
- Tool case
Product Range
- Gedore GT-37175.000 Gate Valve Wrench Type with Display LDE-075S
- Gedore GT-37195.000 Gate Valve Wrench Type with Display LDE-09S
- Gedore GT-37195.000 Gate Valve Wrench as Angled Version with Display LEW-09S
Technical Information
Specification
| LDE-075S | LDE-09S | LEW-09S | |
|---|---|---|---|
| Drive square inch | ¾" | ¾" | ¾" |
| Speed | 25 ~U/min | 17 ~U/min | 18 ~U/min |
| Breakaway torque [lbf-ft] (max.) | 570 lbf·ft | 670 lbf·ft | 670 lbf·ft |
| Breaking torque [Nm] (max.) | 770 Nm | 900 Nm | 900 Nm |
| rpm | 25 ~U/min | 17 ~U/min | 18 ~U/min |
Additional Information
SKU
GT-GATE-LDE/LEW
