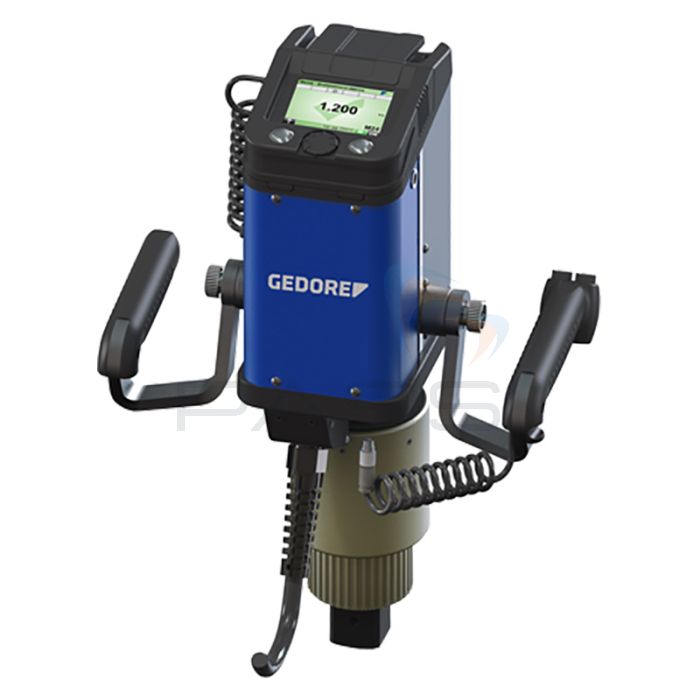

Gedore GT-19705.000 Heavy Duty Wrench Type LHD-75

Combining power and speed: more than twice as fast as other suppliers - for a faster insertion bolt by bolt. Reliable operation in all weathers.

The built-in, low-maintenance brushless technology (brushless, low-wear DC drive) ensures a longer tool life.

The logging of more than 10,000 bolted connections is possible with the optional available module TRACK. With the optional QS module, any number of bolted connections can be defined and stored. This greatly simplifies work on the construction site and reduces the time required.

Due to strong voltage fluctuations, it is difficult to use electric torque wrenches with the required accuracy. With the LHD heavy-duty torque wrench, this is avoided by a voltage conversion using our power box - this way the device is always provided with the necessary voltage for proper function.

For maximum precision, the Gedore GT-19705.000 offers a visual and acoustic zero-defect strategy: a sunlight-readable, digital colour display displays the entire workflow visually; in addition, an acoustic signal sounds as soon as the set value is reached.

Key Features

• Low backlash planetary gear
• Switch-off electronics protected against splash water and moisture
• Microprocessor-controlled switch-off electronics
• Changeover of right-left rotation directly at the handle
• Brushless DC drive 48V, max 5 kW maximum power
• 3" audiovisual, removable colour display
• Adjustable handles

Scope of Application

• Torque (max.) [lbf·ft]: 5530 lbf·ft
• Torque (min.) [lbf·ft]: 590 lbf·ft
• Drehmoment (max.) [Nm]: 7500 Nm
• Drehmoment (min.) [Nm]: 800 Nm
• Torque range (min./max.) [lbf·ft]: 590 lbf·ft - 5530 lbf·ft
• Revolution: 10,3 ~U/min

What's Included?

• Heavy-Duty-wrench
• Reaction arm (St) with hold function
• PowerBox
• Transport box for accessories
• Tool trolley
• Operating instructions
• Individual factory test certificate
