Hanna Instruments HI-2030-02 Edge Hybrid Multiparameter EC Meter
- Capacitive touch keypad
- Conductivity & TDS
- Accuracy: +/- 1% of reading
- Slim, lightweight design
SKU
HI-2030-02
MPN
HI-2030-02

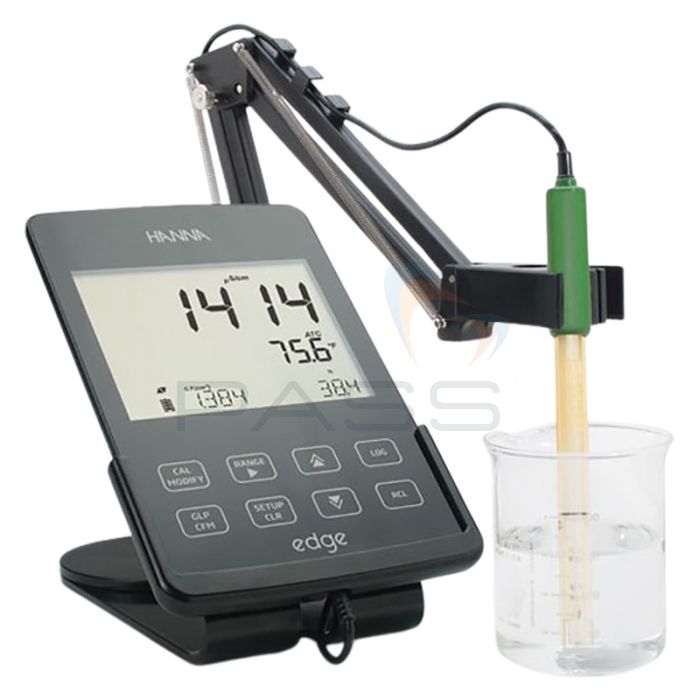

The Hanna Edge Conductivity Meter, the world's first hybrid meter, integrates benchtop, handheld, and wall-mounted functionality. It has a sleek, slim profile, a capacitive touch keypad, an intuitive user interface, and prioritises both form and function.
An intelligent digital electrode connects via a 3.5mm plug-in jack that automatically recognises electrode type, ID, and calibration data. CAL-CHECK detects contaminated buffers or unclean electrodes during calibration.
The Edge has basic and advanced modes to accommodate different experience levels. The basic mode simplifies the interface for routine measurements, while the advanced mode provides detailed data analysis.
The meter supports Bluetooth connectivity and is compatible with the HANNA Edge Blu meter. Users can sync pH and temperature data to their mobile phone or tablet through the free HANNA Lab App.
Key Features
- Capacitive touch keypad
- Large 140mm LCD with clear full text readout
- Digital smart electrode enables edge to automatically recognise and store sensor type, ID and calibration information
- Range: 0.00 to 29.99 uS/cm; 30.0 to 299.9 uS/cm; 300 to 2999 uS/cm
- Resolution: 0.01 uS/cm; 0.1 uS./cm; 1 uS/cm
- Accuracy: +/- 1% of reading
- Slim, lightweight design means Edge can be hand-held, wall-mounted or used as a bench meter
- Calibration: automatic with 7 standard buffers and 2 custom buffers
- Programmed for basic and advanced modes
- Hanna CAL-CHECK warns if the electrode is not clean or the buffers are contaminated
- PC interface via micro USB
- Data is downloaded onto a USB stick via standard USB
- GLP data automatically transferred
- 3 calibration points
What's Included?
- Edge Hybrid Multiparameter EC Meter
- Digital 4 ring conductivity probe with integrated temperature sensor (HI-763100)
- Conductivity Calibration Solution Kit
- Bench cradle
- Wall cradle
- Electrode holder
- USB cable
- 5 Vdc Power Adapter
- Instruction Manual
- Quality Certificate
Technical Information
Specification
| Range | TDS | 0.00 to 14.99 mg/L (ppm); 15.0 to 149.9 mg/L (ppm); 150 to 1499 mg/L (ppm); 1.50 to 14.99 g/L; 15.0 to 100.0 g/L; up to 400.0 g/L (absolute TDS) |
| Salinity | 0.0 to 400.0 % NaCl; 0.01 to 42.00 PSU; 0.0 to 80.0 g/L | |
| Resolution | EC | 0.01 uS/cm; 0.1 uS/cm; 1 uS/cm; 0.01 mS/cm; 0.1 mS/cm |
| TDS | 0.01 ppm; 0.1 ppm; 1 PPM; 0.01 g/L; 0.1 g/L | |
| Salinity | 0.1 % NaCl; 0.01 PSU; 0.1 g/L | |
| Accuracy | EC | ±1% of reading |
| TDS | ±1% of reading | |
| Salinity | ±1% of reading | |
| EC Calibration | 1 point offset calibration; 1 point slope calibration in EC standard 84 uS/cm, 1413 uS/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm and 118.8 mS/cm | |
| TDS Calibration | through EC calibration | |
| Salinity Calibration | 1 point with HI-7037L 100% NaCl sea water standard | |
| Temperature Compensation | noTC, ATC (-20.0 to 120.0 °C) | |
| Electrode | HI 763100 Conductivity probe (included) | |
| Environment | 0 to 50°C (32 to 122°F); RH max 95% | |
| Dimensions | 202 x 140 x 12.7 mm | |
| Weight | 250 g | |
