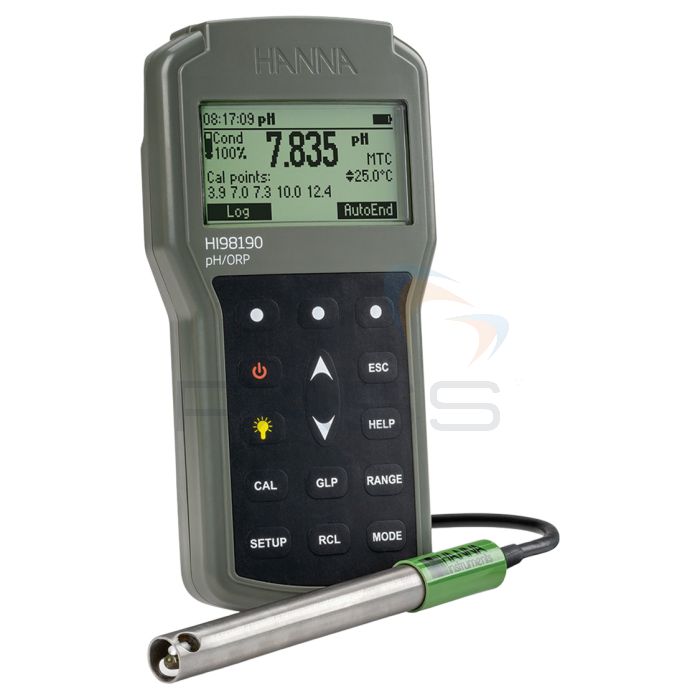

Hanna Instruments HI-98190 pH/ORP Meter
- IP67 rated waterproof
- CAL Check
- Quick Connect Probe
SKU
HI-98190
MPN
HI-98190
The Hanna HI-98190 combines all of the features of a benchtop into a portable IP67-rated waterproof enclosure measuring pH/ORP and temperature. Exchange out the pH probe for an ORP probe to obtain mV readings in the ±2000 mV range. A backlit, graphic LCD provides easy-to-read resolution even in low-lit areas. It includes soft keys, a choice of languages, and an extended battery life.
Key Features
- IP67-rated waterproof, rugged enclosure
- CAL Check - alerts users to problems during calibration, including dirty/broken electrodes, contaminated buffer and overall probe condition.
- Automatic or manual temperature compensation - pH sensors incorporate a built-in temperature sensor.
- Calibration - up to a five-point calibration with seven standard buffers and five custom buffers available.
- Intuitive keypad - most of the available options like GLP information, help, range, calibration, and a backlight have a dedicated button
- Approximately 200-hour battery life powered by (4) 1.5V AA batteries
- Quick Connect Probe - titanium-bodied pH/temperature electrode with a quick connect DIN connector to make attaching and removing the probe simple and easy.
- Data Logging - allows users to store up to 200 samples and transfer them to a PC with the HI-920015 USB cable and HI-92000 software.
What's Included?
- Waterproof pH/ORP Meter
- HI-12963 titanium body pH electrode
- HI-7004M pH 4.01 Buffer Solution
- HI-7007M pH 7.01 buffer solution
- 2 x sachets of electrode cleaning solution
- Rugged carrying case
- 100mL plastic beaker (2)
- HI-92000 PC software
- HI-920015 micro USB cable
- Batteries
- Instruction manual
- Quality certificate
Technical Information
Specification
| pH - Range | -2.0 to 20.0 pH; -2.00 to 20.00 pH; -2.000 to 20.000 pH |
| Resolution | 0.1 pH; 0.01 pH; 0.001 pH |
| Accuracy | ±0.1 pH; ±0.002 pH |
| Calibration | up to five-point calibration, seven standard buffers available (1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45) and five custom buffers |
| Temperature Compensation | automatic or manual from -20.0 to 120.0°C |
| mV - Range | ±2000 mV |
| Resolution | 0.1 mV |
| Accuracy | ±0.2 mV |
| Relative mV Offset Range | ±2000 mV |
| Temperature - Range | -20.0 to 120.0°C |
| Resolution | 0.1°C |
| Accuracy | ±0.4°C |
| Additional Specifications | |
|---|---|
| pH Probe | HI-12963 titanium body, pH electrode with internal temperature sensor, quick DIN connector and 1m cable |
| Slope Calibration | from 80 to 110% |
| Log-on-demand | 200 samples (100 each pH/mV range) |
| PC Connection | opto-isolated USB with HI-92000 software and micro USB cable |
| Input Impedance | 10¹²Ω |
| Battery Type/Life | 1.5 C AA batteries (4) / approximately 200 hours of continuous use without backlight (50 hours with backlight) |
| Auto-off | user selectable; 5, 10, 30, 60 min, disabled |
| Environment | 0 to 50°C; RH 100 % IP67 |
| Dimensions/Weight | 185 x 93 x 35.2 mm / 400g |
