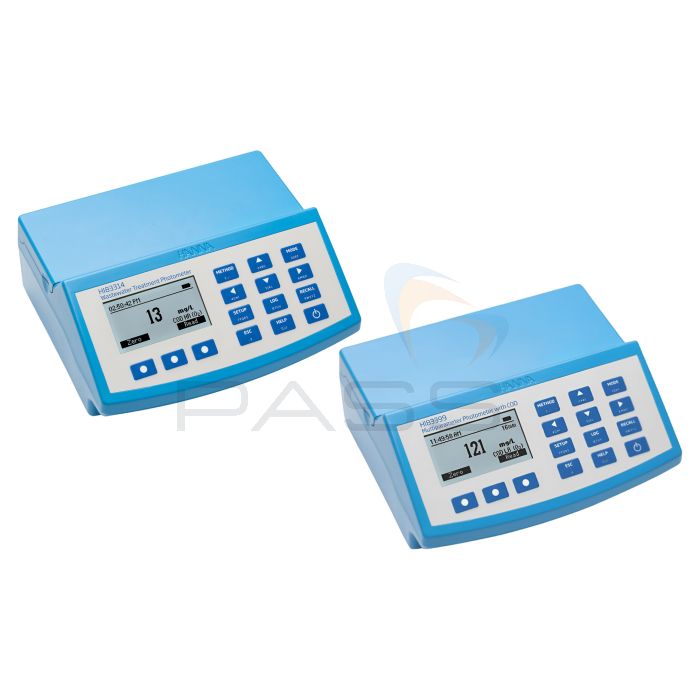

Hanna Instruments Multi-Parameter Wastewater & Water Photometer with COD and pH Meter
- Log up to 1000 readings
- 10 Keys & 20 Methods or 40 Keys & 73 Method
- Rechargeable battery
SKU
HI-83314/99-02
The Hanna multi-parameter photometers are developed for accurate wastewater and water quality testing. The HI-83314 supports 10 key water quality parameters with 20 programmed methods, and the HI-83399 supports 40 key water quality parameters with 73 programmed methods, including digestion parameters for COD, Total Nitrogen, and Total Phosphorus.
They have Chemical Oxygen Demand (COD) analysis and nutrient monitoring. The optical system employs LEDs, narrow-band interference filters, a focusing lens, and a silicon photodetector with a reference detector.
The digital pH electrode input delivers precise pH measurements, and the electrode’s built-in microchip stores calibration data. A built-in thermistor in the sensing bulb ensures automatic temperature compensation for reliable pH readings.
The meters include an absorbance measurement mode for calibration verification using CAL Check standards. Five wavelengths (420 nm, 466 nm, 525 nm, 575 nm, and 610 nm) are available to develop custom concentration vs. absorbance curves.
Key Features
- Advanced optical system with brighter, long-lasting LED light source
- Backlit 128 x 64 Pixel Graphic Liquid Crystal Display
- Built-in Reaction Timer for Photometric Measurements
- Absorbance mode - concentration versus absorbance
- Units of Measurement plus chemical form displayed
- Result conversion at the touch of a button
- Cuvette cover
- pH and temperature measurement with a single probe
- Good Laboratory Practice (GLP) - track calibration information, including date, time, buffers used, offset and slope for traceability
- CAL Check alerts the user to potential problems during the calibration process
- Data Logging - Up to 1000 photometric and pH readings can be stored
- Logged readings can be quickly and easily transferred to a flash drive or a PC. Data is exported as a .CSV file for use with spreadsheet programs
- Battery Status Indicator
- Error Messages
- Two USB ports
- Rechargeable 3.7 VDC lithium-polymer battery
What's Included?
- Choice of Photometer
- Sample cuvettes and caps (x4)
- Cloth for wiping cuvettes
- USB to micro USB cable connector
- Power adapter
- Instruction manual
Product Range
- Hanna Instruments HI-83314-02 Multi-Parameter Water Photometer with COD and pH Meter, 10 Keys & 20 Methods
- Hanna Instruments HI-83399-02 Multi-Parameter Water Photometer with COD and pH Meter, 40 Keys & 73 Methods
Technical Information
Specification
| HI-83314-02 | HI-83399-02 | |
|---|---|---|
| Input Channels | 1 pH electrode input and 5 photometer wavelengths | |
| pH Electrode | Digital pH electrode (not included) | |
| Logging type | Log on demand with user name and sample ID, optional input | |
| Logging Memory | 1000 readings | |
| Connectivity | USB-A host for flash drive; micro-USB-B for power and computer connectivity | |
| GLP | Calibration data for connected pH electrode | |
| Display | 128 x 64 pixel LCD with backlight | |
| Battery Type/Life | 3.7 VDC Li-polymer rechargeable battery/ >500 photometric measurements or 50 hours of continuous pH measurement | |
| Power supply | 5 VDC USB 2.0 power adapter with USB-A to micro-USB-B cable (included) | |
| Environment | 0 to 50.0°C (32 to 122.0°F) 0 to 95% RH, non-condensing | |
| Dimensions | 206 x 177 x 97mm (8.1 x 7.0 x 3.8") | |
| Weight | 1.0 kg (2.2 lbs) | |
| Photometer/Colorimeter Light Source | 5 LEDs with 420nm, 466nm, 525nm, 575nm, and 610nm narrow band interference filters | |
| Photometer/Colorimeter Light Detector | Silicon Photodetector | |
| Bandpass filter Bandwidth | 8nm | |
| Bandpass filter wavelength accuracy | +-1nm | |
| Cuvette Type | Round, 24.6mm | |
| Number of Methods | 128 Max | |
Document Downloads
Hanna Instruments HI-83314-02 Water Photometer User Manual
Hanna Instruments HI-83399 Water Photometer User Manual
