HD Electric DVI-500 Digital Voltage Indicator – Choice of Kits

The HD Electric DVI-500 Digital Voltage Indicator is available as a standalone instrument or as part of a variety of kits. It has a standard operating frequency of 60Hz, however, 50Hz versions are available. Please see the ‘What’s Included?’ section for more information

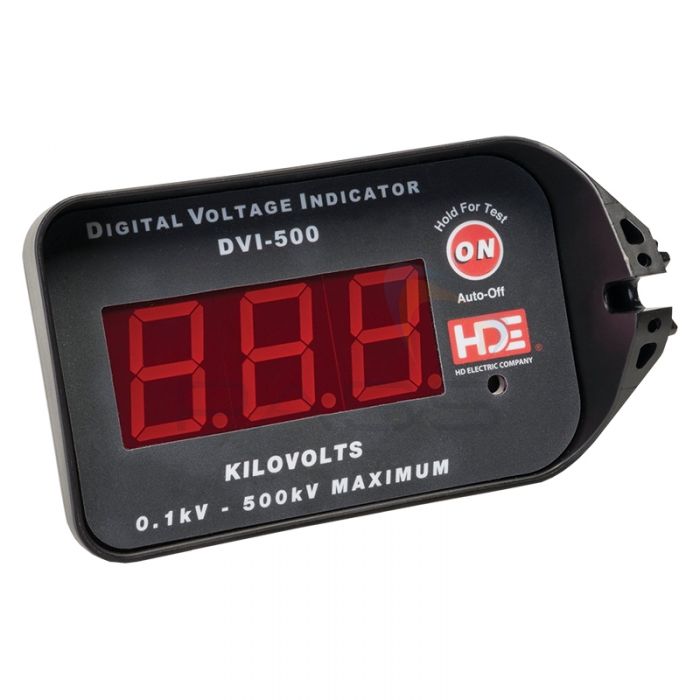

The HD Electric DVI-500 Digital Voltage Indicator is a small, simple-to-use, single-point instrument designed to read voltages on conductors up to 500kV line-to-ground. This voltage indicator can be used on system voltages up to 800kV and will read potential differences between 0.1kV and 500kV. It is auto-ranging and as such does not feature any settings or a range selector switch. The user needs only connect the HD Electric DVI-500 Digital Voltage Indicator to the conductor and read the display.

Line-to-ground voltages are indicated via the HD Electric DVI-500 Digital Voltage Indicator’s large, 3-digit LED display. The operator can use this readout to ascertain whether voltages are induced or nominal. Additionally, the HD Electric DVI-500 Digital Voltage Indicator will issue an audible alert when voltages in excess of 100V AC are detected.

The 1.45” LED display has been designed to ensure that it is easy-to-read in both light and dark conditions as well as when the HD Electric DVI-500 Digital Voltage Indicator is connected to a long hotstick.

The HD Electric DVI-500 Digital Voltage Indicator features an integrated universal spline for standard hotstick attachment allowing it to be adapted for overhead and underground applications. It can be used to measure overhead and underground transmission and distribution systems and, to this end, is supplied as standard with a large overhead hook probe for transmission systems as well as a smaller overhead hook probe for distribution systems.

To ensure correct functionality, the operator can engage the built-in self-test function to verify correct operation before testing. The HD Electric DVI-500 Digital Voltage Indicator is also equipped with an Auto Shutoff function which will turn the instrument off after four minutes of inactivity, thereby preserving the field-replaceable 9V lithium/ alkaline battery’s life.

Finally, the HD Electric DVI-500 Digital Voltage Indicator is encased in a compact, lightweight, rugged polycarbonate housing, making it suitable for demanding applications. The HD Electric DVI-500 Digital Voltage Indicator is an adaptable, dependable, durable single-point voltage indicator.

HD Electric DVI-500 Digital Voltage Indicator Key Features

• Available as a standalone instrument or as part of a variety of kits
• 60Hz and 50Hz versions available
• A small, simple-to-use, single-point instrument
• Designed to read voltages on conductors up to 500kV line-to-ground
• Can be used on system voltages up to 800kV
• Reads voltages between 0.1kV and 500kV
• Auto-ranging
• Does not feature any settings or a range selector switch
• Connect the DVI-500 to the conductor and read the display
• Line-to-ground voltages are indicated via the large, 3-digit, LED display
• Ascertain whether voltages are induced or nominal via the display
• Issues an audible alert when voltages over 100V AC are detected
• The 1.45” LED display is easy to read in bright and dark conditions
• The LED display is easy to read when the DVI-500 is connected to a hotstick
• Integrated universal spline for standard hotstick attachment
• Can be adapted for overhead and underground applications
• Measure overhead and underground transmission and distribution systems
• Supplied as standard with a large overhead hook probe for transmission systems
• Supplied as standard with a smaller overhead hook probe for distribution systems
• Built-in self-test for verifying correct operation
• Auto Shutoff function: switches the DVI-500 off after four minutes of idleness
• Powered by a field-replaceable, 9V lithium/ alkaline battery
• Encased in a compact, lightweight, rugged polycarbonate housing
• An adaptable, dependable, durable single-point voltage indicator

What’s Included?

HD Electric DVI-500 Digital Voltage Indicator – 60Hz

• 1x HD Electric DVI-500 Digital Voltage Indicator – 60Hz
• 1x HD Electric HP-DVI-2 Overhead Hook Probe for Distribution Systems
• 1x HD Electric HP-DVI-6 Overhead Hook Probe for Transmission Systems
• 1x HD Electric CS-DVI-5 Rugged Plastic Case

HD Electric DVI-500-50 Digital Voltage Indicator – 50Hz

• 1x HD Electric DVI-500-50 Digital Voltage Indicator – 50Hz
• 1x HD Electric HP-DVI-2 Overhead Hook Probe for Distribution Systems
• 1x HD Electric HP-DVI-6 Overhead Hook Probe for Transmission Systems
• 1x HD Electric CS-DVI-5 Rugged Plastic Case

HD Electric DVI-500-K01 Digital Voltage Indicator Kit 1 – 60Hz

• 1x HD Electric DVI-500 Digital Voltage Indicator – 60Hz
• 1x HD Electric HP-DVI-2 Overhead Hook Probe for Distribution Systems
• 1x HD Electric HP-DVI-6 Overhead Hook Probe for Transmission Systems
• 1x HD Electric IEP-DVI-5 Underground Bushing Probe (15, 25 and 35kV Class)
• 1x HD Electric CS-DVI-5 Rugged Plastic Case

HD Electric DVI-500-K02 Digital Voltage Indicator Kit 2 – 60Hz

• 1x HD Electric DVI-500 Digital Voltage Indicator – 60Hz
• 1x HD Electric HP-DVI-2 Overhead Hook Probe for Distribution Systems
• 1x HD Electric HP-DVI-6 Overhead Hook Probe for Transmission Systems
• 1x HD Electric IEP-DVI-5 Underground Bushing Probe (15, 25 and 35kV Class)
• 1x HD Electric PT-DVI ProofTester for Digital Voltage Indicators
• 1x HD Electric CS-DVI-5 Rugged Plastic Case

HD Electric DVI-500-50-K02 Digital Voltage Indicator Kit 2 – 50Hz

• 1x HD Electric DVI-500-50 Digital Voltage Indicator – 50Hz
• 1x HD Electric HP-DVI-2 Overhead Hook Probe for Distribution Systems
• 1x HD Electric HP-DVI-6 Overhead Hook Probe for Transmission Systems
• 1x HD Electric IEP-DVI-5 Underground Bushing Probe (15, 25 and 35kV Class)
• 1x HD Electric PT-DVI ProofTester for Digital Voltage Indicators
• 1x HD Electric CS-DVI-5 Rugged Plastic Case
