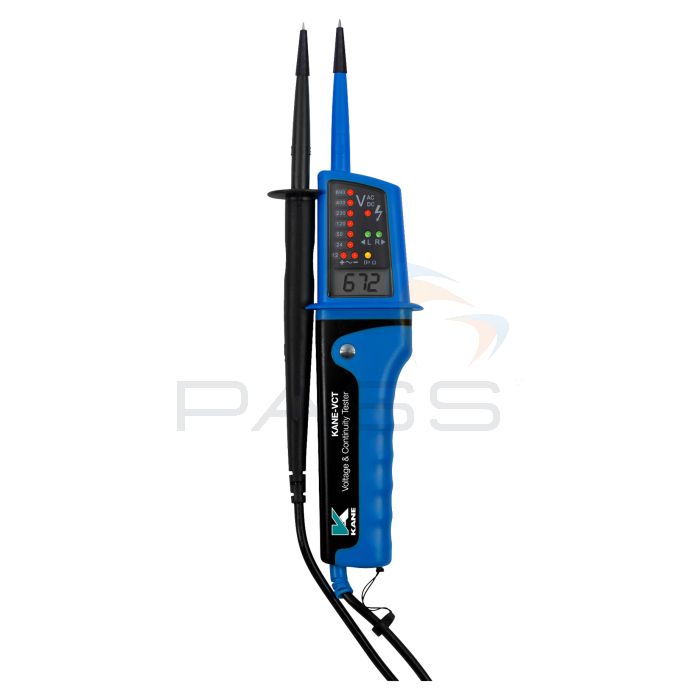

KANE-VCT Voltage & Continuity Tester
- Phase rotation sequencing
- Single Pole Detection feature
- Digital LCD
SKU
KANE-VCT
MPN
KANE-VCT
The Kane-VCT Voltage & Continuity Tester is a professional-grade three-in-one instrument. It incorporates phase rotation testing and single-pole detection and has a fully digital LCD with bright LED indicators. Measures voltages ranging from 12 to 690V AC/DC, has a CAT IV 600V rating, has audible continuity alerts and a built-in LED torch.
It remains fully functional even when the batteries are depleted or absent. Utilises GS38-compliant shrouded test probes and adheres to BS 61243-3:2014 standards. Also available in a kit.
Key Features
- Three-in-one instrument
- Voltage & continuity tester
- Test voltages between 12-690V AC/DC
- Phase rotation sequencing
- Single Pole Detection feature
- Digital LCD
- LED indicators & torch light
- Audible continuity
- Includes GS38 shrouded test probes
- Handheld, hard-wearing ergonomic housing
- Operational even if the batteries are discharged
- Fully conforms to BS EN 61243-3:2014
£99.99
£119.99 inc vat
5 in Stock:
Available Next Working Day*
Free Tyre Inflator (Spend £1000+)
Find Out More
Offers
Free Tyre Inflator (Spend £1000+)
Automatically adds to your basket when the total exceeds £1000+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
| 2 Pole Voltage Indication | |
|---|---|
| Voltage Range | 12 - 690V AC/DC |
| LED Resolution | 12, 24, 50, 120, 230, 400 & 690V |
| LCD Resolution | 1 V ± |
| Voltage Detection | Automatic |
| Frequency Range | 0 - 400Hz |
| Peak Current | 3.5mA |
| Operation Time | 30 seconds |
| Acoustic AC/DC Signal | ✔ |
| Auto Power On | >12V AC/DC |
| IP Rating | IP65 |
| Single Pole Indication | |
| Voltage Range | 100 - 690V AC |
| Frequency Range | 50 - 400Hz |
| Continuity | |
| Acoustic & Visual | ✔ |
| Measurement Range | 0 - 400kΩ |
| Phase Rotation Test | |
| Voltage Range | 100 - 690V AC |
| Frequency | 45 - 65Hz |
| Over Voltage Protection | 690V AC/DC |
| Other Information | |
| Dimensions | 225mm x 70mm x 28mm |
| Weight (net) | 210g |
| Power Supply | 2 x 1.5V (RO3) AAA (supplied) |
