Note: there are several versions of this product available. Using the table below for reference, select a product using the dropdown box above.

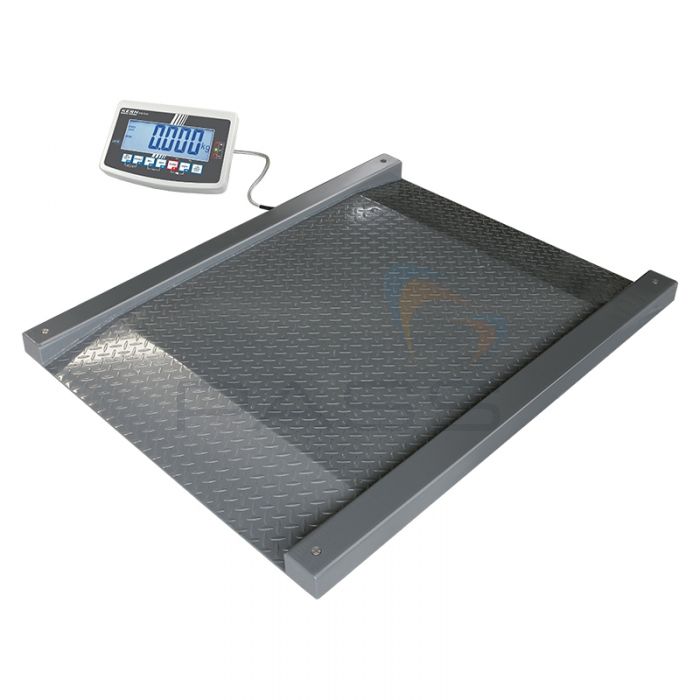

These large-size, floor-based scales are designed to allow rapid weighing of wire care trolleys, shelf trolleys, container trolleys, storage trolleys, sack trucks, transpallets, mobile containers, refuse bins and other objects.
Made of non-slip steel with a lacquered coating, Kern's NFB scales are extremely resistant to bending. To aid with getting an object onto the scales, they have a useful access ramp. They also come with a display unit that's attached via a flexible cable, allowing it to be mounted or held in the hands.
The scales use 4 steel silicone coated load cells which are resistant to dust and water splashes to IP67. It is possible to temporarily use the scales in wet conditions, but this shouldn't be performed for a long period of time.
As standard these scales come with a 3 year manufacturer's warranty.
Kern NFB Drive-Through Scales Key Features
- Easy access via ramps
- Large-size for larger objects
- Weighing bridge made of non slip steel with lacquered coating
- 4 load cells with steel design and silicone coating
- IP67 protection against water and dust damage
- Large-size backlit LCD display unit with 5m cable
- Calibration possible using external reference weights (sold separately)
- RS232 interface
- Piece counting system
- Totalising level - weights of similar items can be added together and the total can be printed out
- Tolerance weighing - upper and lower limiting values can be programmed individually
- Vibration-free weighing - Kern's advanced technology automatically filters out vibrations to ensure a stable reading
- 3 year manufacturer's warranty
Model Variations
The size of this model varies depending on which is purchased. The following options are possible:
- A - 1600 x 1200 x 78mm
- B - 1800 x 1400 x 78mm
This table outlines the difference between each model in this series.
Model | Weighing Range (Max) [kg] |
Readout (d) [g] |
Minimum Load (Min) [kg] |
Weighing Plate |
NFB 600K200M | 600 | 200 | 4 | A |
NFB 600K200LM | 600 | 200 | 4 | B |
NFB 1.5T0.5M | 1500 | 500 | 10 | A |
NFB 1.5T0.5LM | 1500 | 500 | 10 | B |
SKU | KERN-NFB |
---|---|
Manufacturer Part Code | NFB 600K200M |
